Congratulations on purchasing an EWIG product! This soldering iron has been designed listening to the needs
of thousands of electronic users and operators and has been produced in compliance with safety and quality
standards. All this in order to give you the best possible product.
We recommend that you read these instructions before you start using your new EWIG TRM80.
ATTENTION – FIRST USE
On first use the soldering gun may produce smoke, this is just grease used in manufacturing burning off. It is
not harmful to the product or user.
SPECIFICATIONS
Voltage: 220V-240V AC 50Hz
•
Power: 40W (Max. 80W)
•
Temperature: 150-500°C
•
Compatible solder wires: OD 0.5-1.5MM
•
•
Heating time: Melts solder in 1min and reaches max temperature in 4mins.
FEATURES
Easy to use single-handed and feed solder.
•
Long life and heats up quickly with big power and internal heating.
•
All-purpose for soldering and repairing of various electronic products.
•
Ideal for long time use with a handle made of colloid and plastic, which is slip resistant and pleasant
•
to hold.
Heatproof rubber power cord.
•
Compatible with solder of different diameters and feeding length can be adjusted. The solder feed can
•
be adjusted up and down.

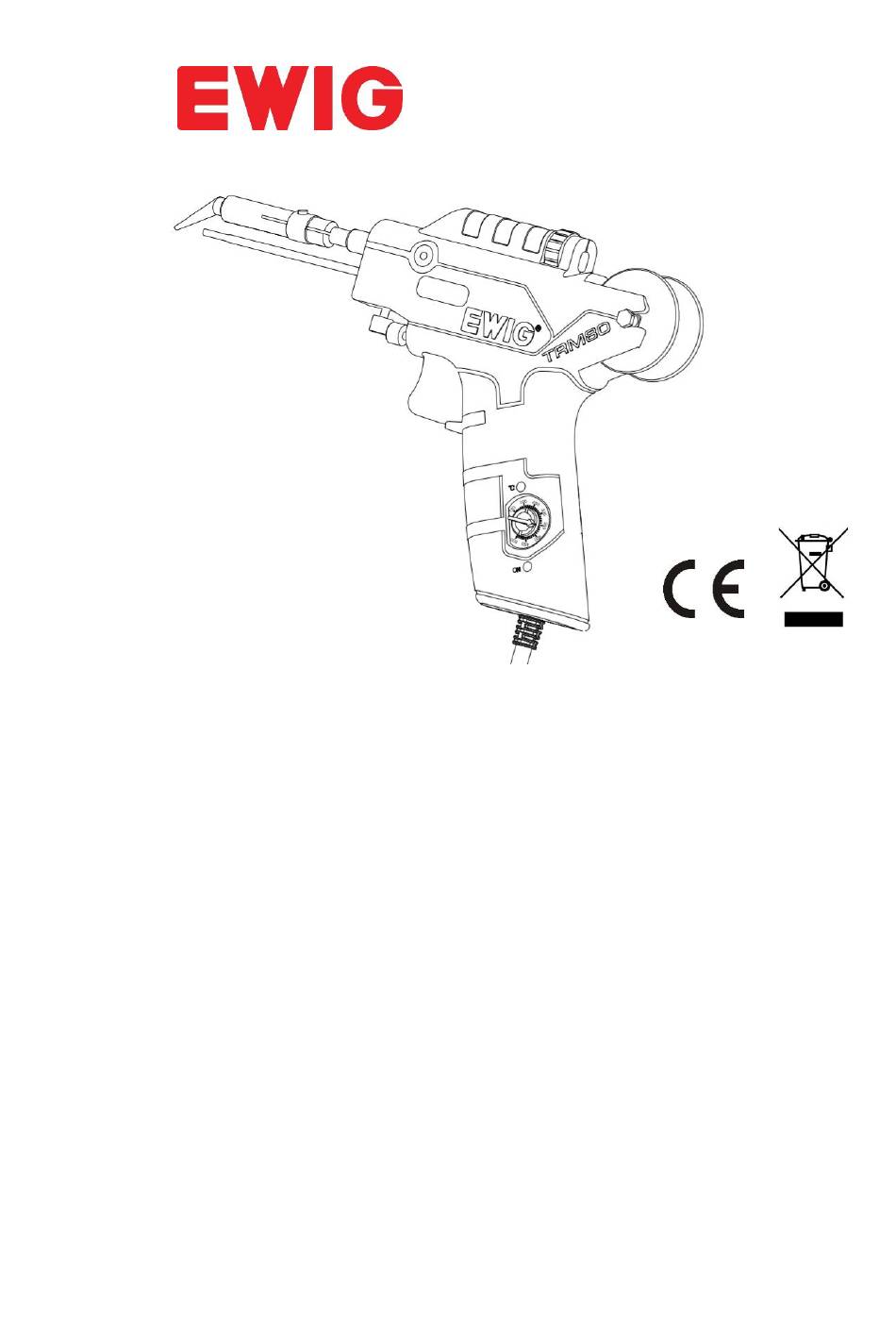

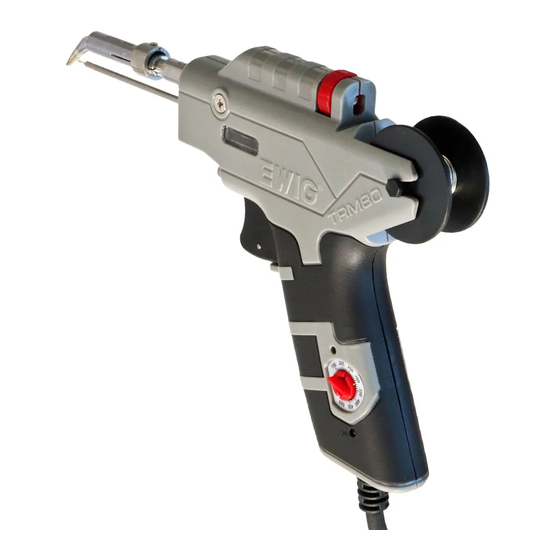

Soldering Gun with Solder Feed
TRM80
Advertisement
Table of Contents
Summary of Contents for Ewig TRM80
- Page 1 TRM80 Soldering Gun with Solder Feed Congratulations on purchasing an EWIG product! This soldering iron has been designed listening to the needs of thousands of electronic users and operators and has been produced in compliance with safety and quality standards. All this in order to give you the best possible product.
- Page 2 WARNING Please note the following safety notes to avoid malfunctions, damage or physical injury: This appliance can be used by children aged from 8 years and above and persons with reduced • physical, sensory or mental capabilities or lack of experience and knowledge only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 3 FUNCTIONS Transparent plastic window: Check the tin process • Solder diameter adjuster: Adjust it to allow solder of different diameters (0.5-1.5mm) through. • Back solder feed: Thread the solder from the solder reel through the back solder feed and then pull •...
- Page 4 TIP REPLACEMENT Note: Tip replacement or cleaning should be done only when the soldering gun is powered down and at room temperature. After taking out the tip, remove any oxide dust that may have formed in the barrel. Be careful not to get dust into your eyes.
- Page 5 DISPOSAL IWaste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with you local Authority or retailer for recycling advice IMPORTED AND DISTRIBUTED BY: Freelux Srl Unipersonale – Via per Mombello 45 - 21033 Cittiglio (VA) – info@ewigtools.com...
