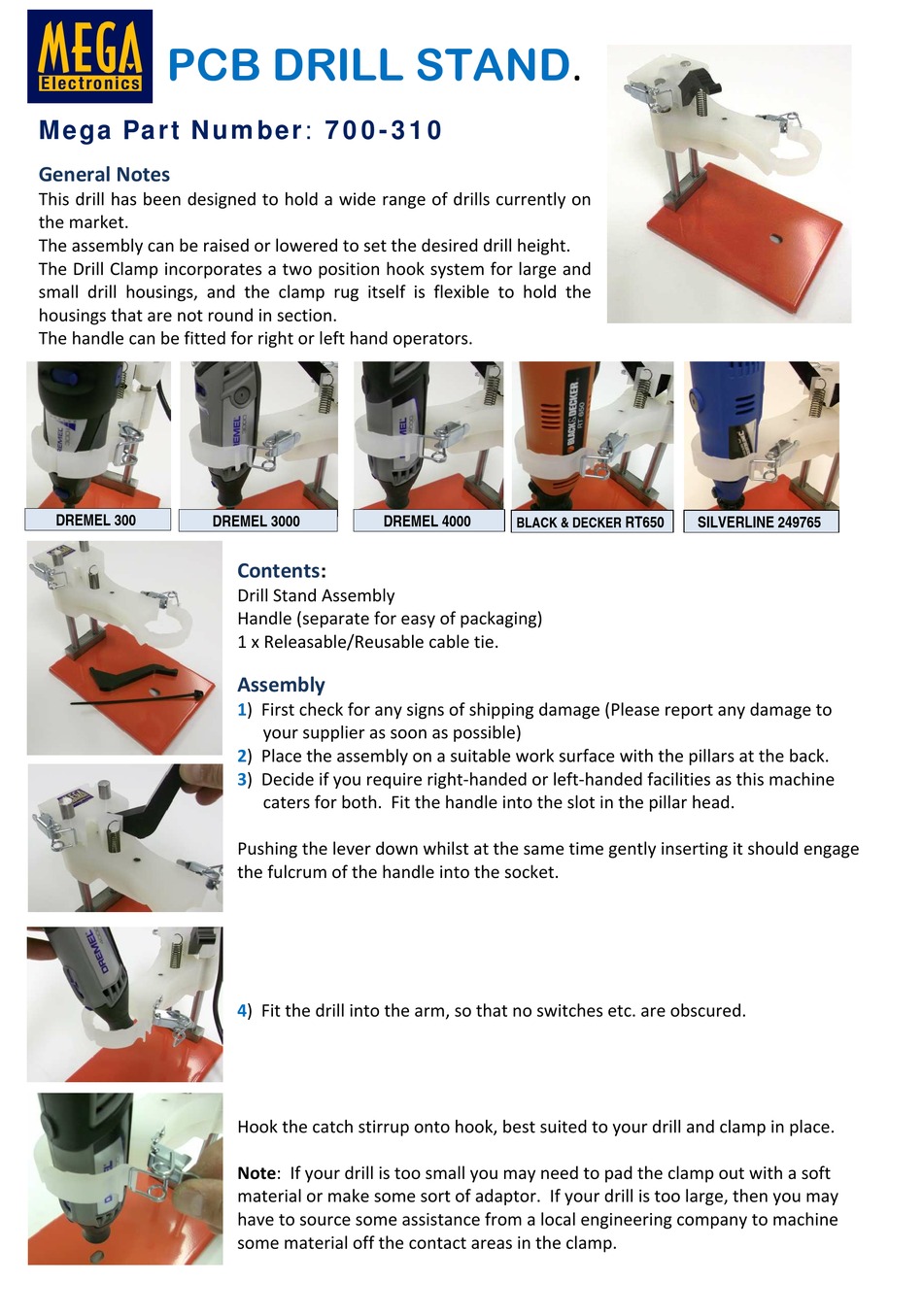

Mega Electronics 700-310 Manual

PCB DRILL
M e ga Pa r t N u m be r : 7 0 0 - 3 1 0
General Notes
This drill has been designed to hold a wide range of drills currently on
the market.
The assembly can be raised or lowered to set the desired drill height.
The Drill Clamp incorporates a two position hook system for large and
small drill housings, and the clamp rug itself is flexible to hold the
housings that are not round in section.
The handle can be fitted for right or left hand operators.
DREMEL 300
DREMEL 3000 DREMEL 4000

Contents

:
Drill Stand Assembly
Handle (separate for easy of packaging)
1 x Releasable/Reusable cable tie.
Assembly
1) First check for any signs of shipping damage (Please report any damage to
your supplier as soon as possible)
2) Place the assembly on a suitable work surface with the pillars at the back.
3) Decide if you require right handed or left handed facilities as this machine
caters for both. Fit the handle into the slot in the pillar head.
Pushing the lever down whilst at the same time gently inserting it should engage
the fulcrum of the handle into the socket.
4) Fit the drill into the arm, so that no switches etc. are obscured.
Hook the catch stirrup onto hook, best suited to your drill and clamp in place.
Note: If your drill is too small you may need to pad the clamp out with a soft
material or make some sort of adaptor. If your drill is too large, then you may
have to source some assistance from a local engineering company to machine
some material off the contact areas in the clamp.
STAND.
BLACK & DECKER
RT650 SILVERLINE 249765
