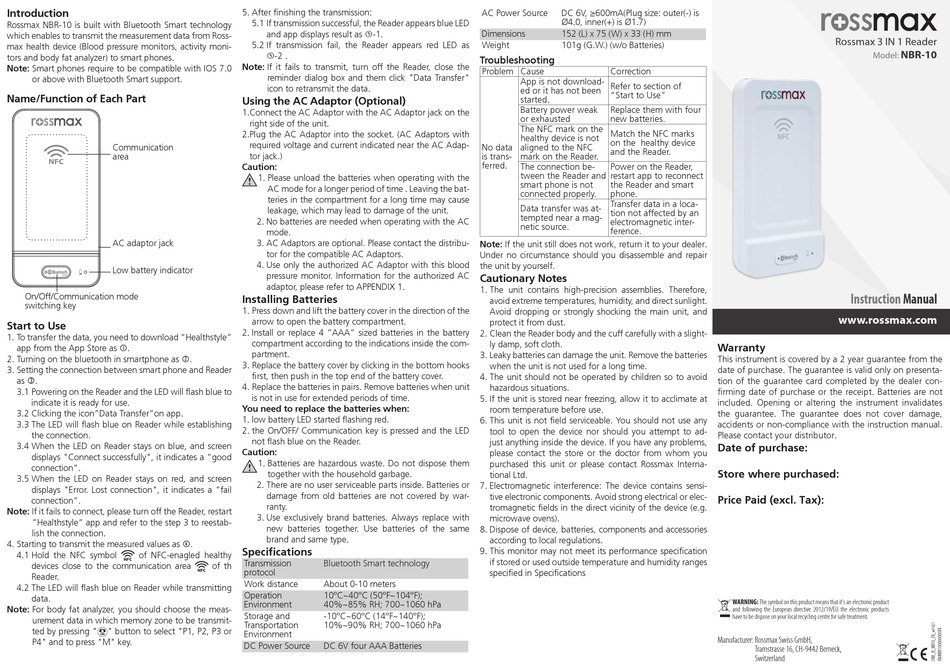

Rossmax NBR-10 Instruction Manual

Introduction

Rossmax NBR-10 is built with Bluetooth Smart technology
which enables to transmit the measurement data from Ross-
max health device (Blood pressure monitors, activity moni-
tors and body fat analyzer) to smart phones.
Note: Smart phones require to be compatible with IOS 7.0
or above with Bluetooth Smart support.

Name/Function of Each Part

Communication
area
AC adaptor jack
Low battery indicator
On/Off/Communication mode
switching key

Start to Use

1. To transfer the data, you need to download "Healthstyle"
app from the App Store as .
2. Turning on the bluetooth in smartphone as .
3. Setting the connection between smart phone and Reader
as .
3.1 Powering on the Reader and the LED will flash blue to
indicate it is ready for use.
3.2 Clicking the icon"Data Transfer"on app.
3.3 The LED will flash blue on Reader while establishing
the connection.
3.4 When the LED on Reader stays on blue, and screen
displays "Connect successfully", it indicates a "good
connection".
3.5 When the LED on Reader stays on red, and screen
displays "Error. Lost connection", it indicates a "fail
connection".
Note: If it fails to connect, please turn off the Reader, restart
"Healthstyle" app and refer to the step 3 to reestab-
lish the connection.
4. Starting to transmit the measured values as .
4.1 Hold the NFC symbol of NFC-enagled healthy
devices close to the communication area
Reader.
4.2 The LED will flash blue on Reader while transmitting
data.
Note: For body fat analyzer, you should choose the meas-
urement data in which memory zone to be transmit-
ted by pressing " " button to select "P1, P2, P3 or
P4" and to press "M" key.
5. After finishing the transmission:
5.1 If transmission successful, the Reader appears blue LED
and app displays result as -1.
5.2 If transmission fail, the Reader appears red LED as
-2 .
Note: If it fails to transmit, turn off the Reader, close the
reminder dialog box and them click "Data Transfer"
icon to retransmit the data.

Using the AC Adaptor (Optional)

1. Connect the AC Adaptor with the AC Adaptor jack on the
right side of the unit.
2. Plug the AC Adaptor into the socket. (AC Adaptors with
required voltage and current indicated near the AC Adap-
tor jack.)
Caution:
1. Please unload the batteries when operating with the
AC mode for a longer period of time . Leaving the bat-
teries in the compartment for a long time may cause
leakage, which may lead to damage of the unit.
2. No batteries are needed when operating with the AC
mode.
3. AC Adaptors are optional. Please contact the distribu-
tor for the compatible AC Adaptors.
4. Use only the authorized AC Adaptor with this blood
pressure monitor. Information for the authorized AC
adaptor, please refer to APPENDIX 1.

Installing Batteries

1. Press down and lift the battery cover in the direction of the
arrow to open the battery compartment.
2. Install or replace 4 "AAA" sized batteries in the battery
compartment according to the indications inside the com-
partment.
3. Replace the battery cover by clicking in the bottom hooks
first, then push in the top end of the battery cover.
4. Replace the batteries in pairs. Remove batteries when unit
is not in use for extended periods of time.
You need to replace the batteries when:
1. low battery LED started flashing red.
2. the On/OFF/ Communication key is pressed and the LED
not flash blue on the Reader.
Caution:
1. Batteries are hazardous waste. Do not dispose them
together with the household garbage.
2. There are no user serviceable parts inside. Batteries or
damage from old batteries are not covered by war-
ranty.
3. Use exclusively brand batteries. Always replace with
new batteries together. Use batteries of the same
brand and same type.

Specifications

Transmission Bluetooth Smart technology
of th
protocol
Work distance About 0-10 meters
Operation 10°C~40°C (50°F~104°F);
Environment 40%~85% RH; 700~1060 hPa
Storage and -10°C~60°C (14°F~140°F);
Transportation 10%~90% RH; 700~1060 hPa
Environment
DC Power Source DC 6V four AAA Batteries
AC Power Source DC 6V, ≥600mA(Plug size: outer(-) is
Ø4.0, inner(+) is Ø1.7)
Dimensions 152 (L) x 75 (W) x 33 (H) mm
Weight 101g (G.W.) (w/o Batteries)

Troubleshooting

Problem Cause Correction
App is not download-
Refer to section of
ed or it has not been
"Start to Use"
started.
Battery power weak Replace them with four
or exhausted new batteries.
The NFC mark on the
Match the NFC marks
healthy device is not
on the healthy device
No data aligned to the NFC
and the Reader.
is trans- mark on the Reader.
ferred.
The connection be- Power on the Reader,
tween the Reader and restart app to reconnect
smart phone is not the Reader and smart
connected properly. phone.
Transfer data in a loca-
Data transfer was at-
tion not affected by an
tempted near a mag-
electromagnetic inter-
netic source.
ference.
Note: If the unit still does not work, return it to your dealer.
Under no circumstance should you disassemble and repair
the unit by yourself.

Cautionary Notes

1. The unit contains high-precision assemblies. Therefore,
avoid extreme tem peratures, humidity, and direct sunlight.
Avoid dropping or strongly shocking the main unit, and
protect it from dust.
2. Clean the Reader body and the cuff carefully with a slight-
ly damp, soft cloth.
3. Leaky batteries can damage the unit. Remove the batteries
when the unit is not used for a long time.
4. The unit should not be operated by children so to avoid
hazardous situations.
5. If the unit is stored near freezing, allow it to acclimate at
room temperature before use.
6. This unit is not field serviceable. You should not use any
tool to open the device nor should you attempt to ad-
just anything inside the device. If you have any problems,
please contact the store or the doctor from whom you
purchased this unit or please contact Rossmax Interna-
tional Ltd.
7. Electromagnetic interference: The device contains sensi-
tive electronic components. Avoid strong electrical or elec-
tromagnetic fields in the direct vicinity of the device (e.g.
microwave ovens).
8. Dispose of device, batteries, components and accessories
according to local regulations.
9. This monitor may not meet its performance specification
if stored or used outside temperature and humidity ranges
specified in Specifications
Rossmax 3 IN 1 Reader
Model:
Instruction
www.rossmax.com

Warranty

This instrument is covered by a 2 year guarantee from the
date of purchase. The guarantee is valid only on presenta-
tion of the guarantee card completed by the dealer con-
firming date of purchase or the receipt. Batteries are not
included. Opening or altering the instrument invalidates
the guarantee. The guarantee does not cover damage,
accidents or non-compliance with the instruction manual.
Please contact your distributor.
Date of purchase:
Store where purchased:
Price Paid (excl. Tax):
WARNING: The symbol on this product means that it's an electronic product
and following the European directive 2012/19/EU the electronic products
have to be dispose on your local recycling centre for safe treatment.
Manufacturer: Rossmax Swiss GmbH,
Tramstrasse 16, CH-9442 Berneck,
Switzerland
NBR-10
Manual
