- Page 1 VOGUE UPRIGHT FRIDGE OR FREEZER 308L 355343...
-
Page 2: Table Of Contents
CONTENTS Product Overview ............... Safety Warnings ................Installation Instructions ..............Install the Handles..............Operation Instructions..............Packing and Moving..............Maintenance................Defrost..................Disconnecting the Appliance............User Notifications................. Troubleshooting Tips..............Specifications and Parameters............ Packing List................Thank for purchasing our products and thank you for placing your confidence in us. -
Page 3: Product Overview

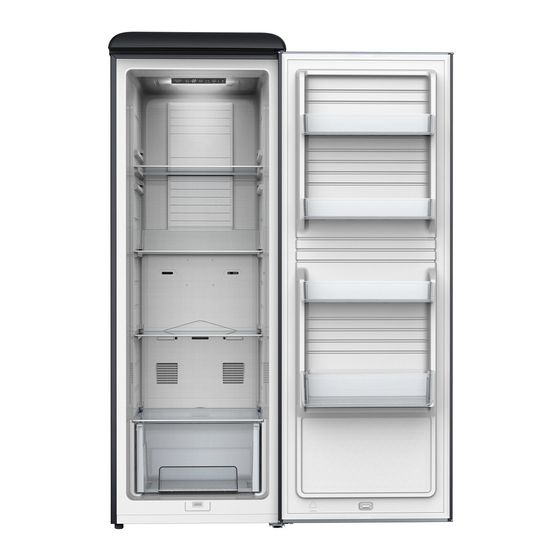

PRODUCT OVERVIEW 1. Control Display 2 Glass Shelves 3 Crisper Cover 4 Drawer 5 Switch 6 Door Bins The refrigerator you have purchased may look different from the image above as there could have been an improvement made. If you use the refrigerator for the first time, remove the adhesive tapes of the drawers, Remove the adhesive tapes before use. -
Page 4: Safety Warnings
SAFETY WARNINGS For your personal safety, please follow the instructions below: The circuitry for refrigerator must be isolated. The area of cross section of wire must be larger than 0.75mm . The power plug should have its own socket, the socket must be grounded as adapter may cause the socket to overheat. -
Page 5: Installation Instructions
NOTICE: When gas leaks from its container, do not pull the plug, out or in, for it may arouse sparks and fire calamities. Do not splash water on the rear of the appliance, for it may cause malfunction or electric shock. Do not store inflammabe materials such as ether, benzene, LP gas and glue etc in the refrighterator. -
Page 6: Install The Handles
INSTALL THE HANDLES Take out the handle accessories bag: handle base (1 pcs), handle cover (1pcs), screw(3pcs), screw lever(1cps). Handle Handle cover Screw Screw lever 2. Fixed the handle base with 3 pcs screws by screw lever. 3. Assemble the handle cover. (1) Buckle up the right side of handle first. -
Page 7: Operation Instructions
OPERATION INSTRUCTIONS Leave some space between items inside for air circulation. Food should be kept in sealed package to prevent drying or odour. Hot food should be cooled down before placing into the appliance. Otherwise, interior temperature and electronic consumption will increase. Reducing the frequency of door opening can lower the electronic consumption. -
Page 8: Packing And Moving
4. After the child lock is unlock, fridge mode or freezer mode can be switched by pressing“ ”; when FRIDGE, the indicator light is on, fridge mode is selected, when FREEZER, the indicator light is on, freezer mode is selected. 5. -
Page 9: Maintenance
MAINTENANCE The appliance should be maintained and cleaned frequently. For your safety, please pull the plug out of the socket before the cleaning. Interior maintenance Clean the interior of the appliance with clean water or neutral abluent.Scour it with clean water and wipe it with a piece of dry cloth. Maintenance of door gasket It is easy to get damaged if the door gaskets are polluted by the stain like oil, sauce and etc., so clean it with care. -
Page 10: Disconnecting The Appliance
DISCONNECTING THE APPLIANCE After power failure, even in summer, the refrigerator can store food normally in several hours. Discontinuation during power failure After power failure, do not put additional food in the appliance and reduce the frequency of door opening.Make several ices in a container if know the power failure beforehand, and put it in the top of the fridge. -
Page 11: Troubleshooting Tips
TROUBLESHOOTING TIPS The refrigerator does not work It may not be connected to the power supply(plug, power cut or fuse); Voltage is too low. The refrigerator does not work efficiently as expected It may be caused by heavy frost, or by warm temperature setting,or by frequently door operating. -
Page 12: Specifications And Parameters
SPECIFICATIONS AND PARAMETERS Climate class SN/N/ST/T Electric shock protection type Total Capacity(L) Refrigerator 308(Optional) Freezer 308(Optional) Voltage(V) 220-240 Frequency(Hz) Current(A) Voice [dB(A)] < 45 Energy consumption( kWh/y Refrigerant R600a/67g Weight(kg) -15~ -22 Freezer Interior temperature (°C) Refrigerator Width Dimension(mm) Depth Height 1703... -
Page 13: Packing List
PACKING LIST Parts Number Vegetable crisper 1pcs 3pcs Glass shelf Crisper glass cover 1pcs Door bins 3pcs Bottle guard 1pcs 1 copy Owner's manual Note: Products are subject to improve from time to time, any changes in parts without further notice.
