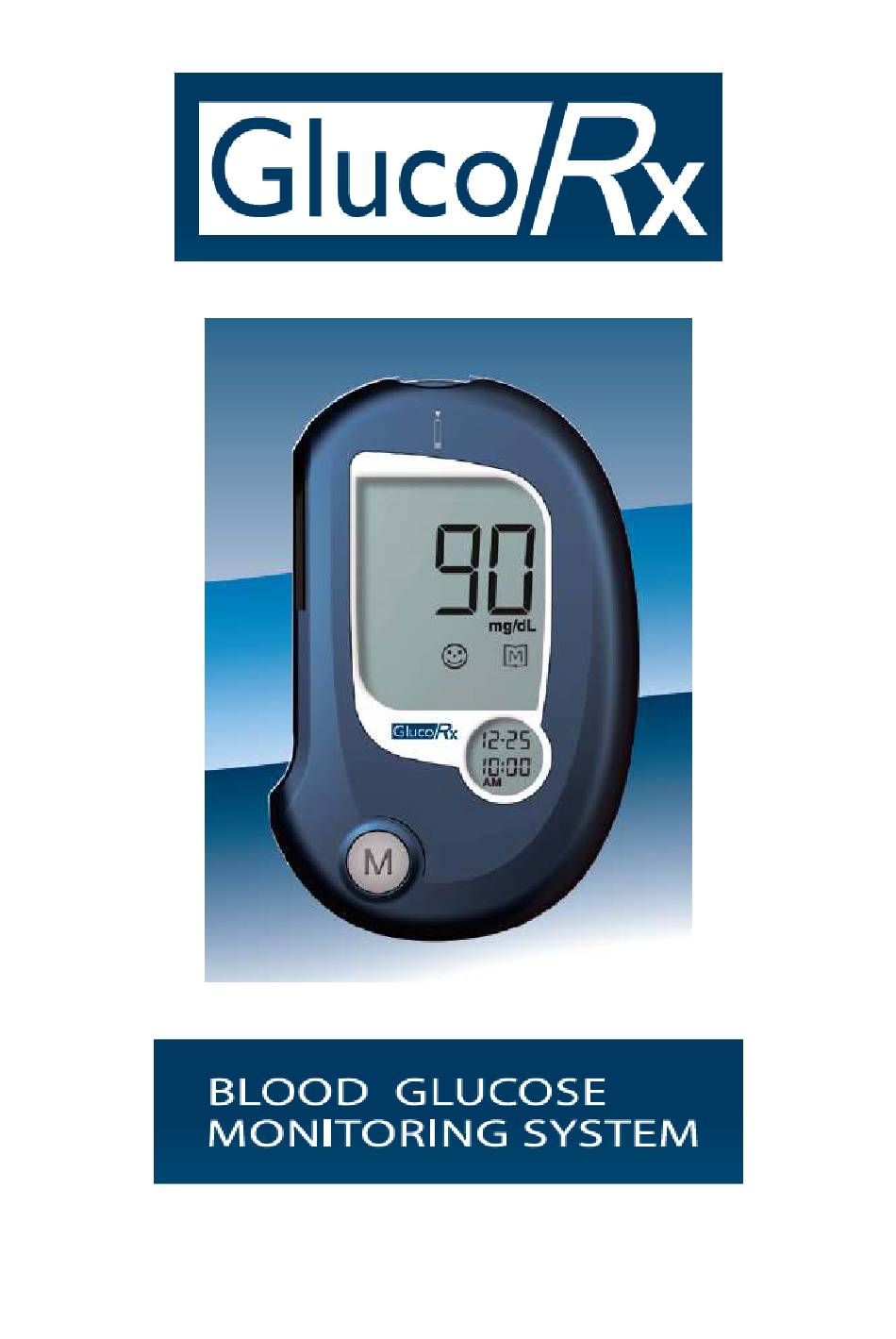

Gluco Rx TD-4230 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD-4230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gluco Rx TD-4230

Summary of Contents for Gluco Rx TD-4230

  • Page 2: Table Of Contents

    ONTENTS LUCO X KIT LUCO X METER LCD display REPARATION BEFORE Battery replacement Setting the Meter (Year, Month, Day, Hour, Minute & Alarms) Deleting the Memory EFORE TESTING Checking with Control solutions How often should the control solution test be performed? Important control solution information Doing a control solution test If the Quality control test falls outside the specified range...

  • Page 3: Gluco R X Kit

    LUCO X KIT The system includes: 1. A meter 2. Test strips 3. Sterile lancets 4. Owner’s manual 5. Carry case 6. First time user’s guide 7. Daily log book 8. Warranty card 9. Lancing device with clear cap for alternative site testing 10.

  • Page 4: Glucor X Meter

    LUCO X METER LCD display...

  • Page 5: Preparation Before Use

    REPARATION BEFORE Battery replacement • When the battery symbol is displayed on screen, the meter is functional and the result remains accurate but it is time to change the battery. • When the battery symbol, “low” and “E-b” symbols are shown, the battery cannot provide enough power to do a test;...

  • Page 6: Deleting The Memory

    Setting the Day 1. Press the M button and release when you see the correct day. 2. Press the set button and then the hour should flash on screen. Setting the Hour 1. Press the M button and release when you see the correct hour. 2.
  • Page 7 Alarm 2 • If you select “OFF” with the M button, press the set button to go set or unset Alarm 3. • If you select “On” with the M button, press the set button to set the hour. When the hour is flashing, press the M button and release when you see the correct hour.

  • Page 8: Before Testing

    EFORE TESTING Each time you insert a test strip, the meter displays “CHK” and the test strip symbol. This tells you that the system is checking if the meter and test strip can work together. Checking with Control solutions Control solutions contain a known amount of glucose that reacts with the test strips. By comparing your control solution test results with the expected range printed on the test strip vial label, it is possible to check that the meter and the test strips are working together as a system and that you are performing the test correctly (it is not a recommended range for your blood glucose level).

  • Page 9: Important Control Solution Information

    Important control solution information • Only use control solutions supplied by DiME and always check the expiry date has not passed. • The control solution, meter, and test strips should all be at room temperature (25°C) before testing. • Shake the vial, discard the first drop of control solution and wipe off the dispenser tip to ensure a good sample for an accurate result.

  • Page 10: If The Quality Control Test Falls Outside The Specified Range

    5. The meter begins to count down to zero. 6. The test result of the control solution is then shown on screen; ensure this result falls within the range printed on the test strip container. If the result falls outside this range, see ‘Problems in Operation’ on page 23 and repeat the test. If you continue to get out-of-range results, it means your GlucoRx system may not be working properly.

  • Page 11: Testing Blood

    ESTING BLOOD wash and dry your hands first Alternative Site Testing (AST) AST allows you to use other parts of your body other than the fingertips (feel pain more readily as full of condensed nerve endings) to check blood glucose levels. The GlucoRx system enables testing on the palm, forearm, upper arm, calf and thigh.

  • Page 12: Setting The Lancing Device

    Setting the Lancing device 1. Pull the cap off the lancing device. 2. Insert a lancet into the lancet holder and push down firmly until it is fully in place. [To reduce the chance of infection, never share a lancet or the lancing device with others; always use a new, sterile lancet (lancets are disposable and intended for single use only).

  • Page 13: Inserting The Test Strip

    6. Holding your fingers on the body and NOT the cap, pull the cocking control back until it clicks. You should see a colour change inside the release button when it is ready. If it does not click, the device may have been cocked when the lancet was inserted.

  • Page 14: Applying Blood Into The Test Strip For A Result

    AST - after 20 seconds penetration, discard the first drop of blood with a clean tissue or cotton wool (usually contains tissue fluid and serum which may affect the test result). 4. Gently squeeze the punctured area to obtain at least 0.7 microlitre of blood sample; do NOT smear Applying blood into the Test strip for a Result 1.

  • Page 15: Performance Characteristics

    Performance characteristics Accuracy: within +0.83mmol/L at glucose concentration <4.2mmol/L, and within +20% at glucose concentration >4.2mmol/L. Precision: CVs (%) of intermediate precision and repeatability are less than 5%. The product has been tested to meet requirements of ISO 15197. Ejecting the used Test strip (for single use only) After finishing your measurement, take out the used test strip by pushing up the strip-ejection button (avoids infection from potentially biohazardous materials), or remove by hand.

  • Page 16: Results May Be Affected By Patients Who Have

    The GlucoRx meter readings deliver plasma-equivalent results in millimole of glucose per litre of blood (mmol/L). It is able to display test results from 1.1 to 33.3 mmol/L. Results may be affected by patients who have: • severe dehydration and excessive water loss •...
  • Page 17 At the lab: ensure blood samples for both the meter and lab tests are tested within 15 minutes of each other. • Wash hands before obtaining a blood sample. • Never use your GlucoRx meter with blood that has been collected in a grey top test tube; use fresh capillary whole blood only.

  • Page 18: Using The Meter Memory

    SING THE ETER EMORY The GlucoRx meter stores the last 450 results of blood glucose test results, with date and time taken, in its memory. It also automatically calculates the averages of these results for 7, 14, 21, 28, 60 and 90 day intervals.
  • Page 19 3. Release the M button and then the 7-day average result should appear on screen. 1. The average of glucose test 2. Result indicator 3. The average calculated from test results of last 7 days 4. 6 glucose tests performed in last 7 days 5.

  • Page 20: Viewing Results On A Personal Computer

    IEWING ESULTS ON A ERSONAL OMPUTER 1. Install Health Care System Software on the PC from by clicking: http://www.taidoc.com/GlucoRX_HealthCareMgtSys_V3.04_20100721.exe 2. Connect one end of the interface cable (available from DiME) to a serial port on the PC and the other end to the data port of the meter (should be switched off). 3.

  • Page 21: Taking Care Of Meter , Lancing Device And Strips

    AKING CARE OF ETER ANCING DEVICE AND TRIPS To avoid these diabetic products getting dirt, dust or other contaminants, wash and dry your hands thoroughly before use. Cleaning • Meter exterior - wipe with a cloth moistened with tap water or a mild cleaning agent (not organic solvents), then dry with a soft/dry cloth.

  • Page 22: Problem - Solving Guides

    ROBLEM SOLVING UIDES Result indicators Error messages...

  • Page 23: Problems In Operation (Including Control Solution Test)

    Problems in Operation If the Control solution test result is out of range: If the meter does not display a message after inserting the test strip: If the test does not start after applying a blood sample:...

  • Page 24: Eter Pecifications

    ETER PECIFICATIONS Model No: TD-4230 Dimensions: 88mm(L) x 53mm(W) x 15mm(H) Display: LCD (29.5 x 49.0 mm) Weight: 43.58g (40.8g without battery) Power source: one CR2032 lithium battery Memory: 450 measurement results with date and time Power saving: auto turn-off after 3 minutes without action External output: standard RS232 PC interface Operating condition: 10°C to 40°C, below 85% relative humidity (non-condensing)

  • Page 25: Glosary

    GLOSSARY Alternative Site Testing (AST) - using parts of the body other than the finger tips to obtain blood sample for blood glucose testing. Callous - thick, hard skin. Haematocrit - proportion of blood that consists of red blood cells that have been packed by centrifugation (expressed as a percentage of volume).
