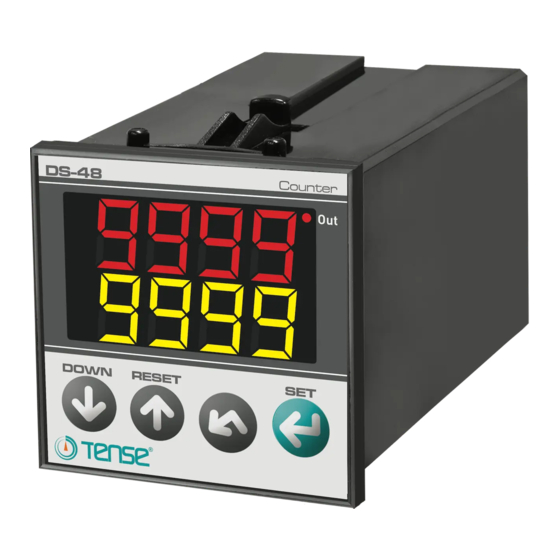

General Specifications:

2x4 Digit display, single PRESET, single OUT, up/down counter
Counts switch, proximity switch & incremental encoder input
Password protection
Selectable input frequency
Calibration constant; 0.001.....9.999
Selectable decimal point; 1. ..... 3. Digit
7 input / 9 output function options
Adss "OFFSET" to Count Value
OUT; latch or 0.1.....999.9 seconds pulse
Loads count value & OUT satus at the lastest power failure after the first power on
RESET via front panel
Displays Preset ½ values
EEPROM memory to store settings

Technical Specifications:

:
Panel Hole Sizes
:
Display
:
Count Input
:
NPN Selection
:
Sensor Types
:
Input Frequency
:
Reset Input
:
Output
:
Sensor Supply
:
Supply Voltage
:
Power Consump.
:
Operating Temp.
Operating Altitude :
44x44mm
2x4 Digit 7 Segment display
2 x (Max: 7500 Hz, 5-30V)
Connect "npn select" to "+12V" to select NPN sensor for Cp1 and Cp2.
Reset input is always PNP. For totem pole or PNP type sensor
"npn select" left unconnected.
PNP/NPN proximity switch - NPN/PNP/Totem-pole output encoder
20, 50, 2500, 7500 Hz selectable.
10ms (min) , Positive input (PNP only) (5.....30V)
Out; Relay (O-NO-NC), 250VAC, 2A, Rezistif Yük
Open Collector (NPN), 30V, 100mA max.
12VDC, 50mA(max.), unregulated
100...240VAC, 50-60Hz
< 8VA
-20 C....55 C o o
< 2000m
PRESET UP/DOWN COUNTER
