• For outdoor use only. Not for commercial use.
• Read instructions before using this appliances. Failure to follow instructions could result
• Warning: Accessible parts may be very hot. Keep young children and pets away.
• Do not move the appliance during use.
• Any modification of the appliance, misuse, or failure to follow the instructions may be
WARNING
• Retain these instructions for future reference.
• THIS BBQ MUST NEVER BE LEFT UNATTENDED WHEN LIT AND IN USE.
in death, serious bodily injury and/or property loss.
dangerous and will invalidate your warranty. This does not affect your statutory rights.
Advertisement
Related Manuals for gascraft OIL DRUM CHARCOAL
Summary of Contents for gascraft OIL DRUM CHARCOAL

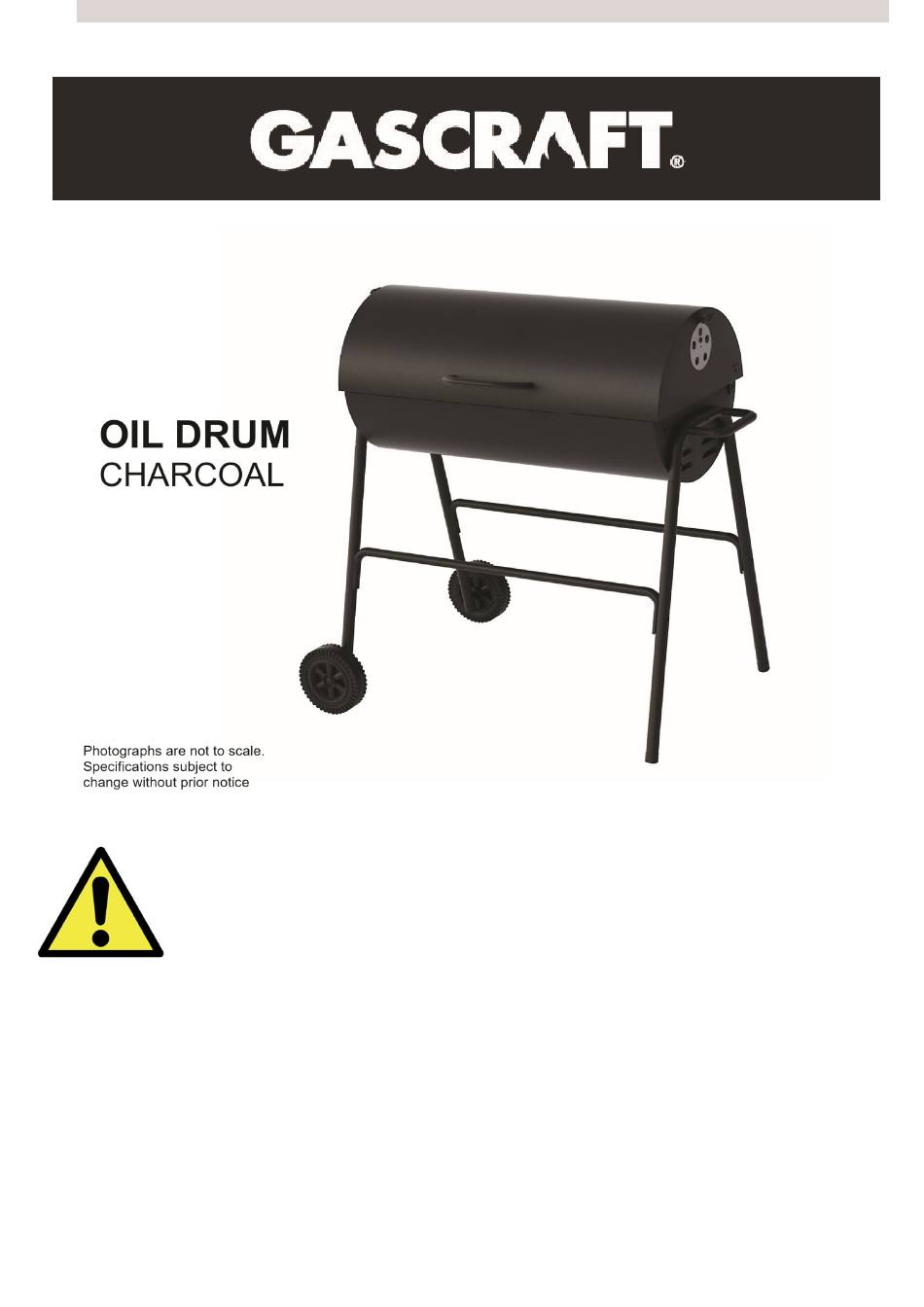

- Page 1 • For outdoor use only. Not for commercial use. • Read instructions before using this appliances. Failure to follow instructions could result in death, serious bodily injury and/or property loss. • Warning: Accessible parts may be very hot. Keep young children and pets away. •...
- Page 2 Safety And Care Advice Important - Please read this instructions fully before starting assembly Warning: While every effort has been made in the manufacture of this BBQ to remove any sharp edges, care should be taken in handling to avoid any accidental injury. Assembly time;...
-
Page 3: Care And Maintenance
It is recommended that a maximum of 1.5kg of charcoal is used on the charcoal grate. Excessive amounts of charcoal will make the BBQ too hot for cooking. Ensure the BBQ has cooled down completely before removing the ash, and put the ash into a metal container until it is fully cold before disposing of it. CARE AND MAINTENANCE To make easier to clean your Charcoal BBQ after use, line the firebowl with aluminium cooking foil, shiny side up. Remember to leave ventilation holes clear by piercing the foil where necessary. This process will lengthen the life of your Charcoal BBQ. Charcoal is available in lump wood (large irregular pieces) and as briquettes (uniformly sized pieces). Please use only charcoal – do not use wood or coal or other solid fuels. It is not advisable to completely fill the firebowl as the BBQ may become far too hot to cook successfully. As a guide, a 3kg bag of charcoal briquettes should last for at least 2 full BBQ fires. If the fires flares up due to dripping fat, then control the flames carefully with a fine water spray. When you have finished using the Charcoal BBQ, never pour cold water directly on the coals to extinguish them as this may damage your Charcoal BBQ. Let them burn out until cold. Use old cinders, sand or a fine water spray to speed the process. ... - Page 4 ...
- Page 6 Assembly instructions Step 1 Fix the left leg support and the right leg support to the firebowl using 40mm bolts and M6 nuts FRONT Step 2 Insert the left legs and the right legs into the left leg support and the right leg support Ensure the axle spacer on the front leg faces forwards, and...
- Page 7 Assembly Instructions Step 3 Fix the left legs and the right legs to the firebowl using 40mm bolts and M6 nuts FRONT Step 4 Fix the wheels to the left legs using the axles and R pins Ensure the axle spacer on the front leg faces forwards, and the axle spacer on the rear leg faces back, as shown.
- Page 8 Assembly Instructions Step 5 Fix the leg braces to the right and left legs using 40mm bolts and M6 nuts FRONT Step 6 Fix the lid supports on the using 15mm bolts and M6 nuts...
- Page 9 Assembly Instructions Step 7 Put the washer between the lid handle and the lid Then fix the lid handle the lid using 10mm bolts Step 8 Fix the dampers on the lid using 10mm bolts M5 nuts...
- Page 10 Assembly Instructions Step 9 Fix the lid supports to the firebowl using 15mm shoulder bolts Step 10 Fit the 40mm bolts to the lid And tighten firmly. Hang the warming rack on the bolts.
- Page 11 Assembly Instructions Step 11 Put the charcoal grate into the firebowl Set the lower cooking grill and the upper cooking grill on the firebowl. Step 12 Assembly is complete. Manufactured in China for: The Warehouse Ltd 0800-422-274...
