Summary of Contents for Stretch Now LINAK

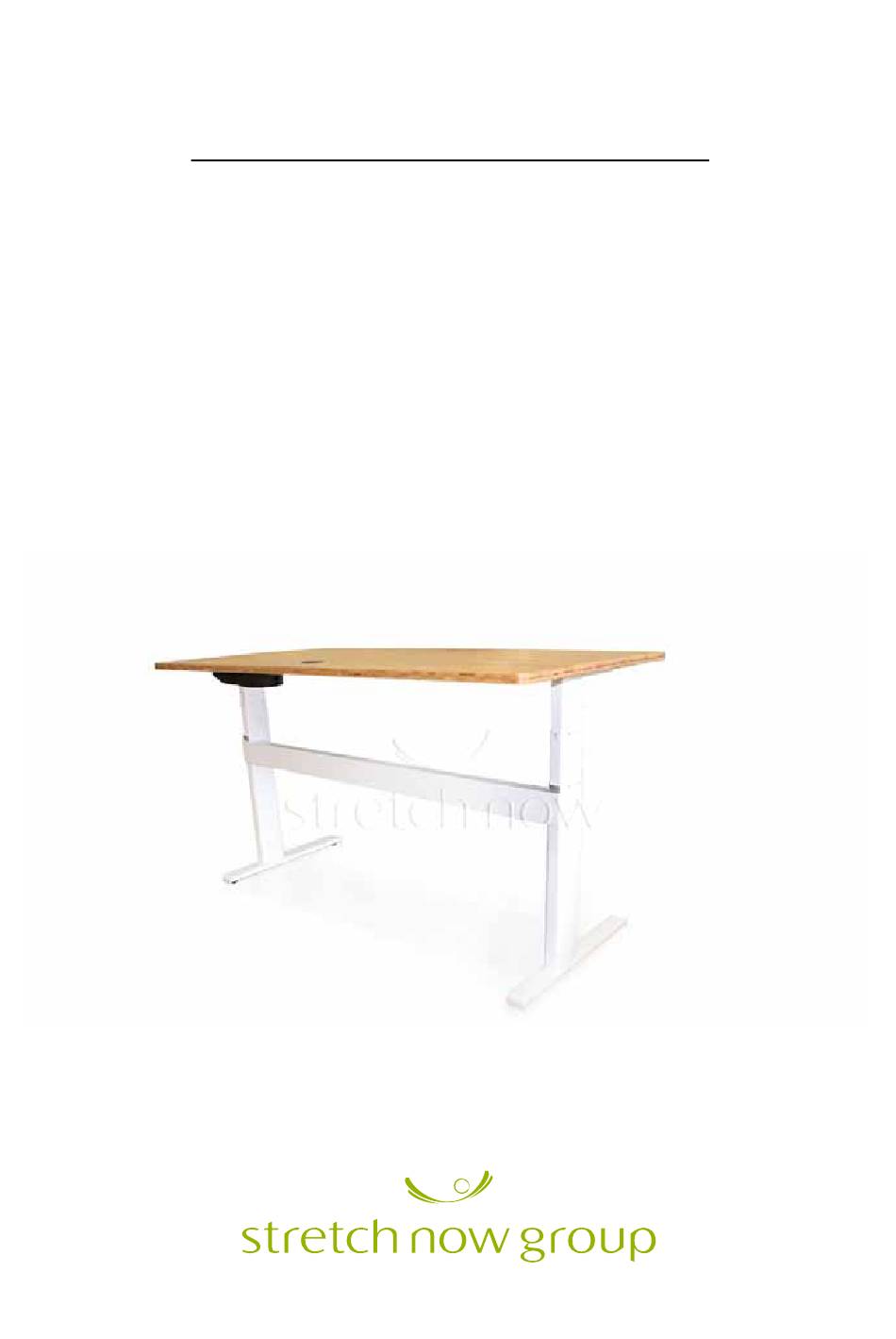

- Page 1 INSTALLATION GUIDE LINAK HEIGHT ADJUSTABLE DESK www.stretchnow.com.au...
-
Page 2: Required Tools
IMPORTANT Carefully read these instructions before beginning your installation. REQUIRED TOOLS 1. Screw driver 2. Drill 3. Pencil / Marker HARDWARE Item No Qty Item Name Cross bar Feet Desktop bracket Foot to leg attachment Desktop Bracket to leg bolts Levellers Screws for desktop bracket 3 and control box 13 (not showing) www.stretchnow.com.au... - Page 3 Item No Qty Item Name Height adjustable legs Up down switch Bracket for up down switch Connect cord leg to control box Power lead Control box Screws to attach up down switch bracket 10 (not showing) www.stretchnow.com.au...
-
Page 4: Installation
INSTALLATION Attaching the leg to the cross bar 1. Slot the cross bar into the leg grooves 2. Screw the desktop bracket to the leg. Ensure that the connector cable is in the slot and is not trapped between the desktop bracket and the leg. 3. - Page 5 Attaching the control box to the desktop Modesty bar Control Box 10. Plug in one end of a connect cord to socket no. 1 and one end of another connect cord to socket no. 2 of the control box 11. Screw the control box to the underside of the desktop.
-
Page 6: Troubleshooting
Attaching the feet to the legs 16. Screw the levellers to the feet 17. Screw the feet on to each leg. 18. Turn the desk over. Plug in power lead. It is ready to use. TROUBLESHOOTING If for any reason your desk does not operate as expected, please try the following in order ie if 1 doesn’t resolve the issue move on to no 2 etc. - Page 7 Healthy lifestyle choices www.stretchnow.com.au Ergonomic office solutions www.ergonomicsnow.com.au Sit Stand Desks www.heightadjustabledesks.com.au Rotating filing system www.rotafile.com.au Ergonomic desk and scholastic furniture that grow with your child www.ergokidz.com.au www.stretchnow.com.au...
- Page 8 597 canterbury road surrey hills vic 3127 e info@stretchnow.com.au p 03 9888 66 77 f 03 9836 7904 www.stretchnow.com.au...
- Page 9 1800 mm FOOT ANGLE CONNECTOR BRACKET CROSS BAR FLAT CONNECTOR BAR FLAT CONNECTOR BAR TOP VIEW DIAGRAM FOR L-SHAPED LINAK DESK...
- Page 10 Steps to Assemble the L-Shaped Linak Desk Please first read the instructions for assembling the standard Linak desk – this additional document has information specific to the L-shaped desk. 1. Prepare the Desk Top a. Lay out the two pieces of the L-shaped desk top face down on a surface that will not scratch the top.
- Page 11 3. Connect the Frame to the Desk Top: a. Turn over the connected pair of legs and put them in place on the table top. b. Turn over the third leg and cross bar and place it in position on the table top. c.
- Page 12 4. Connect the Control Box and Cables a. Position the control box in a convenient location towards the back of the desk top, clear of the cross bar with its outlets facing the front of the desk, and screw it into place. b.
