TOLSEN TOOLS 73134 Instruction Manual

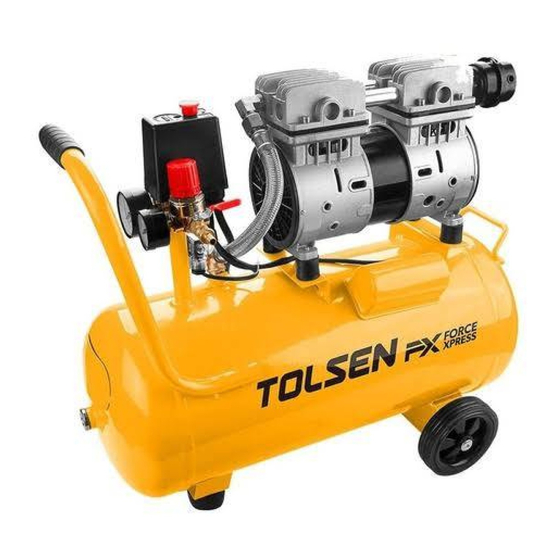

Silent and oil free air compressor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

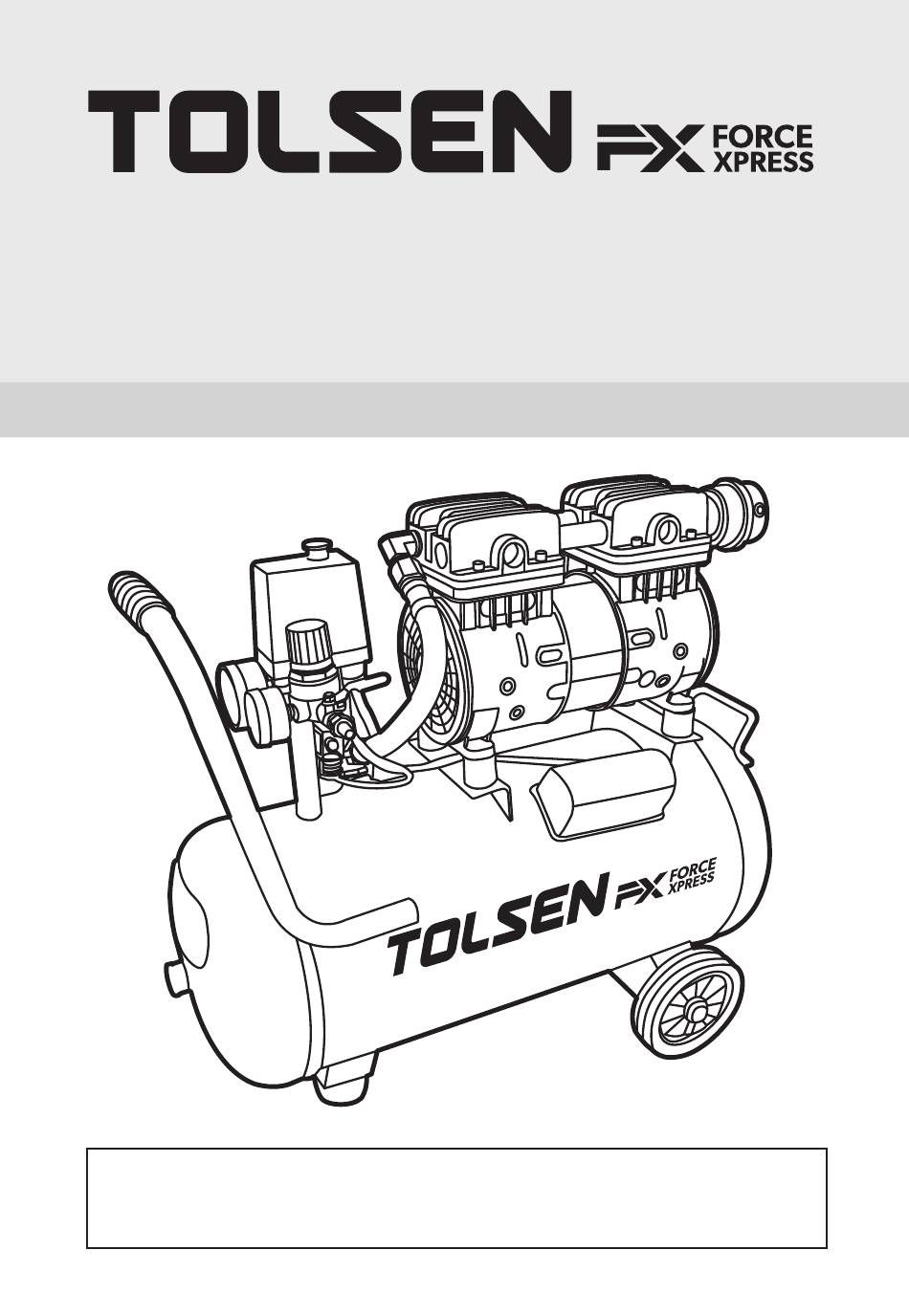

73134
SILENT AND OIL FREE AIR COMPRESSOR
INSTRUCTION MANUAL
SAVE THIS MANUAL !
You will need this manual for safety instructions, operating procedures and warranty.
Put it and the original sales receipt in a safe dry place for future reference.
1Hp 800W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 73134 and is the answer not in the manual?

Questions and answers

Related Manuals for TOLSEN TOOLS 73134

Summary of Contents for TOLSEN TOOLS 73134

  • Page 1 73134 SILENT AND OIL FREE AIR COMPRESSOR 1Hp 800W INSTRUCTION MANUAL SAVE THIS MANUAL ! You will need this manual for safety instructions, operating procedures and warranty. Put it and the original sales receipt in a safe dry place for future reference.

  • Page 2: Important Safety Information

    SAFETY IMPORTANT SAFETY INFORMATION General Safety Warnings WarninG read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.
  • Page 3 SAFETY Compressor use and care 1. Do not use the compressor if the switch does not turn it on and off. Any compressor that cannot be controlled with the switch is dangerous and must be repaired. 2. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the compressor.

  • Page 4: Specifications & Setup

    SPECIFICATIONS & SETUP Compressor use and care SPECIFICATIONS Electrical Rating 220-240v/50Hz Rated Power 1HP/800W Air Outlet Size 1/4" Air Tank Capacity Shut-off 8bar (116psi) Air Pressure Restart 6bar (87psi) Air Flow Capacity 77L/min Sound Level 60dB INSTRUCTIONS FOR PUTTING INTO USE Read the entire important safety information section at the beginning of this manual including all text under subheadings therein before set up or use of this product.

  • Page 5: Compressor Area Set Up

    SETUP OPERATING INSTRUCTIONS Read the entire important safety information section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Compressor area set up 1.Designate a work area that is clean and well-lit. The work area must not allow access by children or pets to prevent injury.

  • Page 6: Emergency Depressurization

    SETUP 15. Clean, then store the Air Compressor indoors. Note: At the beginning of the day’s first use of the Air Compressor, check for air leaks by applying soapy water to connections while the Air Compressor is pumping and a er pressure cut-out. Look for air bubbles. If air bubbles are present at connections, tighten connections.

  • Page 7: Maintenance And Servicing

    MAINTENANCE AND SERVICING procedures not specifically explained in this manual must be performed only by a qualified technician. To prevent serious injury from accidental operation: make sure that the trigger is in the off-position and remove its battery pack before performing any procedure in this section. To prevent serious injury from tool failure: do not use damaged equipment.
  • Page 8 Draining Moisture from the tank The Moisture Drain is located under the Tank. It must be used daily to release all trapped air and moisture from the Tank. Doing this will eliminate condensation and prevent tank corrosion. 1. Turn the Power Switch off. 2.

  • Page 9: Troubleshooti

    TROUBLESHOOTI problem possible causes Likely Solutions Compressor does 1. No problem. Compressor will start when needed. 1. Tank(s) already pressurized. 2. Check that cord is plugged in securely. not start or restart 2. Power cord not plugged in properly. 3. Check that circuit matches compressor 3.
  • Page 10 problem possible causes Likely Solutions Overheating 1. Air filters need cleaning/replacing. 1. Check inlet and outlet filters. Clean and/or replace as needed. 2. Unusually dusty environment. 2. Clean and/or replace filters more o en or move 3. Extension cord used. unit to cleaner environment.

  • Page 11: Parts List

    PARTS LIST PARTS LIST...

  • Page 12: Assembly Diagram

    ASSEMBLY DIAGRAM ASSEMBLY DIAGRAM...
  • Page 14 TOLSEN TOOLS CO.,LIMITED www.tolsentools.com TOLSEN is a trademark or registered trademark of TOLSEN TOOLS. All rights reserved. MADE IN CHINA...
