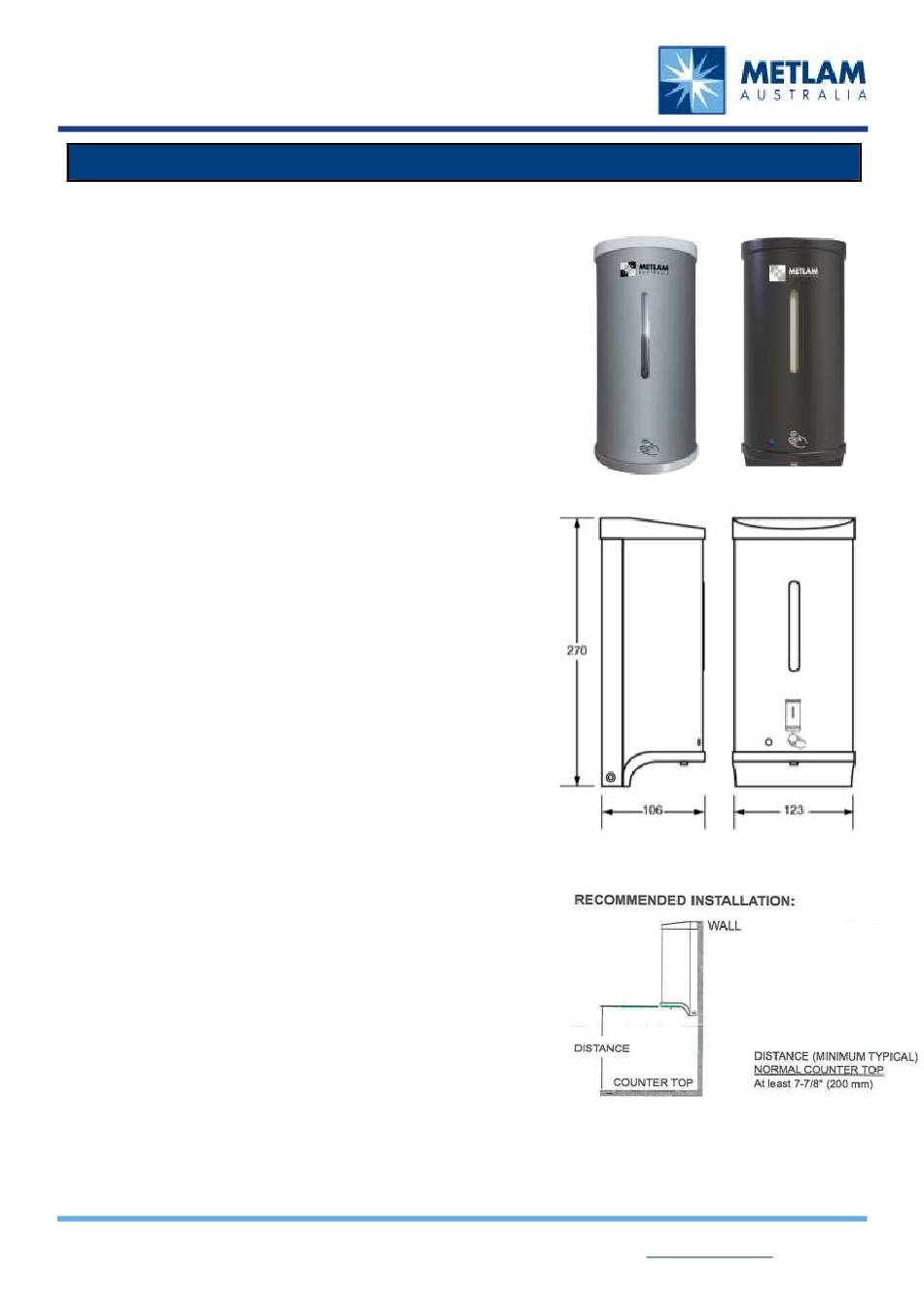

ML_MSD_FOAMDISP Automatic Foam Soap Dispenser
Material Specifications
▪
#304 Stainless Steel Case
▪
ABS Top and Base
Finishes
▪
Stainless Steel - ML_MSD_FOAMDISP_SS
▪
Designer Black - ML_MSD_FOAMDISP_BLK
Dimensions
▪
123mmW x 270mmH x 106mmD
Installation Guidelines
▪
May be subject to Australian Building Code Regulations for height
and location fixing and may be subject to placement as per
architectural drawings. In all cases, this is the responsibility of the
installer.
▪
Recommended Installation height for above counter top:
Distance (minimum typical) is 200mm above counter top to
ensure auto sensor detection works effectively.
For Dry Wall or Tile
1.
Tape the installation template to the appropriate location on the
mounting surface.
2.
Drill four holes at marked locations 5/16" diameter (8Ø).
3.
Insert four plastic anchors (supplied) into the drilled holes and
remove template.
4.
Insert two screws (supplied) into top plastic anchors and leave
1/8" space from the wall under head for hanging dispenser.
5.
Hang the dispenser on the 2 screws through the keyhole slots on
the top of the backplate.
6.
Use the key (supplied) to unlock the dispenser and pull out the
housing cover.
7.
Remove soap reservoir and lock dispenser to the wall with the
remaining two screws (supplied) through the holes at the bottom
on the backplate.
8.
Tighten all screws and ensure unit is level. Insert the soap
reservoir and close the unit to finish installation.
For Mirror
1.
Clean mounting surface with isopropyl alcohol.
2.
Mark outline of dispenser on the mirror with masking tape.
3.
Attach self-adhesive pads (supplied) to dispenser backplate.
The photographs and line drawings of the products presented above are representational only.
Metlam Australia Pty Ltd reserves the right to, and from time to time, make changes and improvements in design and dimensions.
Metlam Australia Pty Ltd
T: 1300 METLAM
E: sales@metlam.com.au
www.metlam.com.au
