Summary of Contents for EFEN E3-LE-03MQ CT

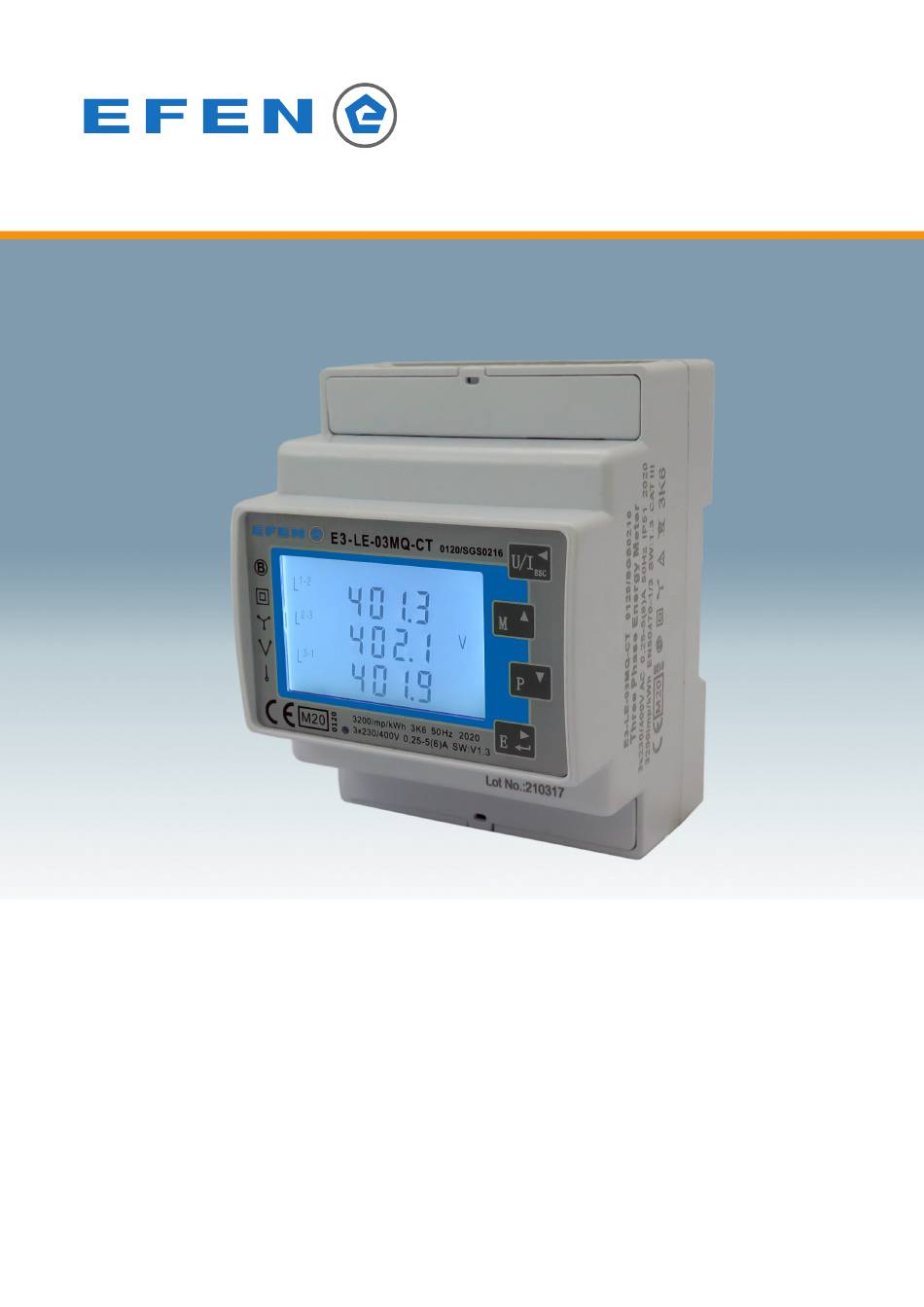

- Page 1 E3-LE-03MQ CT Electric energy meter 1-phase / 3-phase Bidirectional with network parameters analysis...
-
Page 2: Table Of Contents
5.2.5. Pulse output ........................5.2.5.1. Energy setup ........................5.2.5.2. Pulse rate ......................... 5.2.5.3. Pulse duration ........................5.2.6. Demand Integration Time (DIT) ................... 5.2.7. Backlit setup ........................5.2.8. Measuring system ....................... 5.2.9. CLR ............................5.2.10. Change password ......................E3-LE-03MQ CT – User manual... - Page 3 ..........................6.11. Compliance and sealing ......................7. DIMENSIONS ............................8. WIRING DIAGRAM ..........................8.1. Meter‘s power supply ......................... 8.2. Measuring systems ........................9. MODBUS PROTOCOLE REGISTERS ....................9.1. Input registers ..........................9.2. Setup registers ........................... E3-LE-03MQ CT – User manual...
-
Page 4: Purpose
1.PURPOSE E3-LE-03MQ CT is a static (electronic) calibrated electricity meter of single-phase or three-phase alternating current in a direct system. It is used for reading and recording of consumed electric energy and mains parameters with remote readout via a wired RS-485 network. The meter works with current transformers (CT) with 1 A or 5 A secondary current. -
Page 5: Rs-485 Communication Port And Modbus Rtu Protocole
3. START-UP SCREENS The first screen lights up all display segments and can be used as a display check. Information about software version. The interface performs a self-test and indicates the result if the test passes. E3-LE-03MQ CT – User manual... -
Page 6: Operator Panel
In set up mode, this is the „Enter“ or „Right“ button. 4.1. Voltage and current, harmonic Each successive pressing of the button selects a new range: Phase to neutral voltages (3p4w). Current on each phase. Phase to neutral voltage THD% (3p4w). E3-LE-03MQ CT – User manual... -
Page 7: Frequency, Power Factor And Demand
Current THD% for each phase. 4.2. Frequency, power factor and demand Each successive pressing of the button selects a new range: Frequency and power factor (total). Power factor of each phase. Maximum power demand. Maximum current demand. E3-LE-03MQ CT – User manual... -
Page 8: Power
4.3. Power Each successive pressing of the button select a new range: Instantaneous active power in kW. Instantaneous reactive power in kVAr. Instantaneous volt-amps in kVA. Total: kW, kvar, kVA. E3-LE-03MQ CT – User manual... -
Page 9: Energy Measurements
Exported active energy in kWh. Imported reactive energy in kVArh. Exported reactive energy in kVArh. Total active energy in kWh. Total reactive energy in kVArh. The total value of the given energy is presented in two rows. E3-LE-03MQ CT – User manual... -
Page 10: Setup
2. Press to confirm each digit setting. The SET indicator appears the last digit has been set. 3. After setting the last digit, press to exit the number setting routine. The SET indicator will be removed. E3-LE-03MQ CT – User manual... -
Page 11: Setup Parameters
Setting the communication port parameters. 5.2.2.1. (Slave ID) Address (Range 001 to 247) From the set up menu, use buttons to select the address ID. Press button to enter the selection routine. The current setting will be flashing. E3-LE-03MQ CT – User manual... -
Page 12: Baud Rate
The current setting will flash. buttons to choose baud rate: 2,4 / 4,8 / 9,6 / 19,2 / 38,4 [kbps]. Press button, to confirm the selection. Press button to return the main set up menu. E3-LE-03MQ CT – User manual... -
Page 13: Parity
5.2.2.4. Stop bits From the set up menu, use buttons to select the stop bit option. Press to enter the selection routine. The current setting will flash. E3-LE-03MQ CT – User manual... -
Page 14: Current Transformers
The CT rate can be set only once. It is a legal requirement of the MID Directive. Once set the rate cannot be changed. The settings for the current ratio ( CT2 and CT rate) and voltage ratio ( PT2 and PT rate) can only be made once. E3-LE-03MQ CT – User manual... -
Page 15: Measuring Voltage
400. PT rate. Press to display the rate setting screen. Range of 0001 to 9999. Hold down to confirm selection. For half-indirect 1- or 3-phase measurement set the value to 1. E3-LE-03MQ CT – User manual... -
Page 16: Pulse Output
Press to enter the selection routine. The unit symbol will flash. buttons to choose kWh or kVArh. Press to confirm selection. Press button to return the main set up menu. E3-LE-03MQ CT – User manual... -
Page 17: Pulse Rate
Press to enter the selection routine. The current setting will flash. buttons to choose value: 200, 100 or 60 ms. Press to confirm the selection. Press button to return the main set up menu. E3-LE-03MQ CT – User manual... -
Page 18: Demand Integration Time (Dit)
The current time interval will flash. buttons to select the time required. Press to confirm the selection. SET indicator will appear. Press to exit the DIT selection routine and return to the menu. E3-LE-03MQ CT – User manual... -
Page 19: Backlit Setup
3P4W – 3-phases 4-wires. From the set up menu, use buttons to select the system option. The screen will show the currently selected power supply. Press to enter the selection routine. The current selection will flash. E3-LE-03MQ CT – User manual... -
Page 20: Clr
The meter provides a function to reset the maximum demand value of current and power. From the setup menu, use buttons to select the reset option. Press to enter the selection rout The MD will flash. Press to confirm selection. Press to return to the main set up menu. E3-LE-03MQ CT – User manual... -
Page 21: Change Password
Repeat the procedure for the remaining three digits. After setting the last digit, press and hold to confirm selection. Press to exit the number setting routine and return to the setup menu. SET will be removed. E3-LE-03MQ CT – User manual... -
Page 22: Technical Specification
Power factor and frequency and max. demand • Frequency in Hz • Instantaneous power: active: 0÷3600 MW reactive: 0÷3600 Mvar volt-amps: 0÷3600 MVA • Maximum power consumption (with RESET function) • Maximum power consumption neutral wire (with RESET function) E3-LE-03MQ CT – User manual... -
Page 23: Power Factor, Frequency And Demand
1s, typical, to >99% of final reading at 50 Hz. 6.4. Power supply and power meter 85÷275 V AC 50/60 Hz ±10% 120÷380 V DC ±20% <10VA; <2W 6.5. Measurement inputs Voltage: 3×230V/400V Current: 100A E3-LE-03MQ CT – User manual... -
Page 24: Accuracy
50 or 60 Hz ±2% Input waveform sinusoidal (distortion factor <0,005) Auxiliary supply voltage ±1% nominal Auxiliary supply frequency ±1% nominal Auxiliary supply waveform (if AC) sinusoidal (distortion factor <0,05) Magnetic field of external origin terrestial flux E3-LE-03MQ CT – User manual... -
Page 25: Environment
The meter is marked with individual serial number allowing its explicit identification. The marking is laser engraved and cannot be removed. The meter has sealable input and output terminal cover to prevent any attempts to bypass the meter. meter number sealing spot terminal cover E3-LE-03MQ CT – User manual... -
Page 26: Dimensions
7. DIMENSIONS 8. WIRING DIAGRAM 8.1. Meter‘s power supply The meter is not powered from the voltage measurement inputs. It requires separate power supply from any phase of the measuring system. E3-LE-03MQ CT – User manual... -
Page 27: Measuring Systems
8.2. Measuring systems Single phase two wires system. Three phases three wires system. E3-LE-03MQ CT – User manual... -
Page 28: Modbus Protocole Registers
No. of registers=0002 Amps 2 Start address=0008 No. of registers=0002 Each request for data must be restricted to 40 parameters or less. Exceeding the 40 parameter limit will cause a Modbus Protocol exception code to be returned. E3-LE-03MQ CT – User manual... - Page 29 Frequency of supply voltages 72 / 48 Imported active energy kWh/ 74 / 4A Exported active energy kWh/ 76 / 4C Imported reactive energy kWh/ 78 / 4A Exported reactive energy kWh/ 80 / 50 Apparent power kWh/ E3-LE-03MQ CT – User manual...
- Page 30 Notes: 1. The power factor has its sign adjusted to indicate the nature of the load. Positive for capacitive and negative for inductive. 2. The power sum demand calculation is for import power only. E3-LE-03MQ CT – User manual...
-
Page 31: Setup Registers
0 = 2400 baud. 1 = 4800 baud. 2 = 9600 baud, default. 3 = 19200 baud. 4 = 38400 baud. Requires a restart to become effective 42 / 2A Serial number Read the product serial number. E3-LE-03MQ CT – User manual... - Page 32 Slovakia Poland EFEN GmbH EFEN GmbH EFEN Slovakia s.r.o EFEN Sp. z o.o. Headquarters SalesServiceCentre Odborárska 3 Aleja Młodych 26-28 Gewerbepark-Nord 6 Große Hub 10c 831 02 Bratislava 41-106 Siemianowice Śląskie 04938 Uebigau 65344 Eltville Slovensko/Slovakia Poland Germany Germany T +421 55 633 9898...
