Summary of Contents for Titan TTB767STM

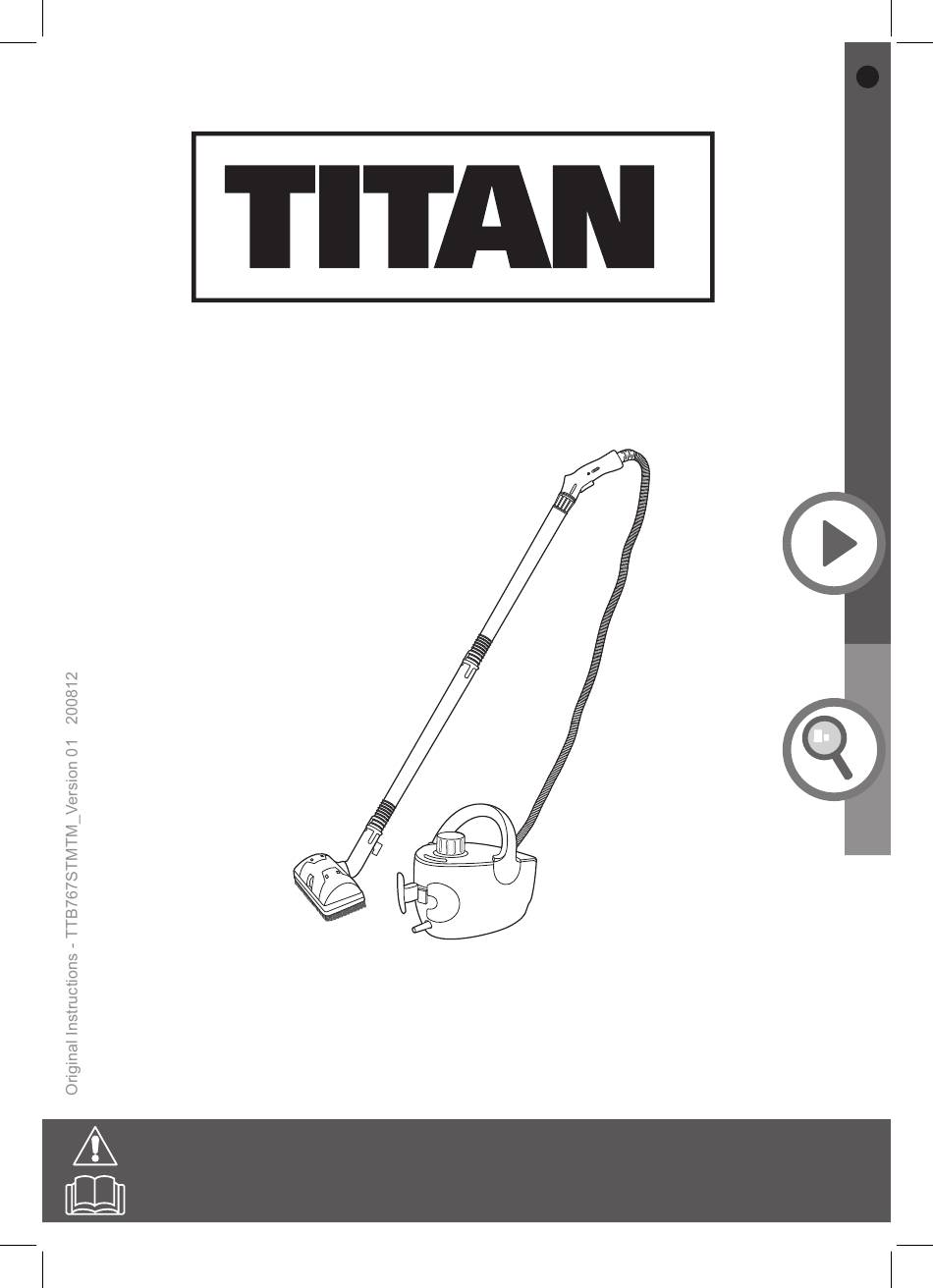

- Page 1 Steam Cleaner TTB767STM EAN: 5059340085883 BX220IM WARNING! Read the instructions before using the appliance!
-
Page 2: Table Of Contents
Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started… Safety Your appliance Before you start more detail… Assembly Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Specifications EC declaration of conformity... -
Page 3: Getting Started
Safety Safety warnings CAUTION! Risk of injury. The filling aperture shall not be opened during use. Read this instruction manual thoroughly before using this appliance. Follow all the safety instructions to avoid damage caused by improper use. Keep this instruction manual for future use. Should this appliance be passed on to a third party, this instruction manual must be included. - Page 4 Safety The appliance must not be left unattended while it is connected to the supply mains. Do not touch the power plug with wet hands. Lay out the cord in such a way that no unintentional pulling or tripping over it is possible.
- Page 5 Safety Do not insert foreign objects into the interior of the housing. Do not dismantle or open the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling. Operate the appliance with the supplied parts only to avoid the risk of injury.
- Page 6 Safety The appliance is with a British Standard plug. In the event of an electrical overload the fuse may blow. Have the fuse replaced by the manufacturer or qualified service personnel. For additional protection, we recommend the use of a residual current device (RCD) with a tripping current not exceeding 30 mA in the electrical circuit supplying power to your appliance.
- Page 7 Safety Do not use the window wiper on a cold surface, the sudden thermal change could cause the surface to break. Warm the surface with the steam jet thoroughly from a distance of about 40 cm. Symbol explanation On the appliance, the rating label and within these instructions you will find among others the following symbols and abbreviations.
-
Page 8: Your Appliance
Your appliance... -
Page 9: Before You Start
Before you start On/off switch 11 Extension tube (with connector) Steam ready light 12 Extension tube Water tank cap 13 Ironing steam head Carrying handle 14 Wand nozzle Cord winder 15 Round brush Power cord with plug 16 Floor brush Steam gun 17 Filling funnel Side button... - Page 10 Before you start Filling the water tank WARNING! Switch the appliance off and disconnect it from the socket outlet before filling the water tank. NOTE: Use the steam trigger on the steam gun and direct the jet into a suitable container to bleed out the remaining pressure from the water tank. NOTE: Always let the appliance cool down and then loosen the water tank cap slowly to let the pressure and hot steam escape.
- Page 11 Before you start Switching on/off WARNING! Before switching on the appliance, make sure that there is sufficient water inside the water tank. Refill the water tank if necessary. 1. Connect the power plug (6) to a suitable socket outlet. 2. To switch the appliance on, press the "I" down on the on/off switch (1). The steam ready light (2) illuminates red and the appliance starts to heat up (Fig.
-
Page 12: Assembly
Assembly Assembly 1. Connect the desired attachment to the steam gun (7). Press and turn clockwise to lock it in place. 2. Turn anti-clockwise and pull to remove the attachment. Attachments Intended use Ironing steam • Fit the cloth cover (20) to protect delicate fabrics from steam head (13) with and heat when ironing with the steam head (13). -
Page 13: Operation
Assembly / Operation • Fit it to the extension tube (12), then to the extension tube with connector (11) which connects to the steam gun. • For soft surfaces, such as carpets and rugs, attach a floor cloth (19) onto it. Slide the switch to the left to move the sliding plate out and then press to clamp the floor cloth. -
Page 14: Care And Maintenance
Operation / Care and maintenance Fig. 8 1. Press the steam trigger (10) on the steam gun (7) to dispense steam (Fig. 8). 2. If needed, connect the desired attachment to the steam gun (7) (see section "Assembly"). The golden rules for care WARNING! Always disconnect the appliance from power supply and let the appliance cool down before performing inspection, maintenance and cleaning work! - Page 15 Care and maintenance Repair This appliance does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. UK plug If you need to replace the fitted plug, then follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue –...
-
Page 16: Troubleshooting
Troubleshooting / Recycling and disposal Troubleshooting Suspected malfunctions are often due to causes that the users can fix themselves. Therefore check the appliance using this section. In most cases the problem can be solved quickly. Only perform the steps described within these instructions! WARNING! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you... -
Page 17: Guarantee
Guarantee / Specifications Guarantee This appliance carries a guarantee of 24 months starting from the day of purchase. Please retain your receipt as a proof. This guarantee specifically excludes losses due to: - Normal wear and tear, including accessory wear - Overload, misuse or neglect - Failure of consumable items (such as batteries) - Repairs attempted by anyone other than an authorized agent... -
Page 18: Ec Declaration Of Conformity
Manufacturer,Fabricant,Producent, Producător,Fabricante: UK Manufacturer Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com www.screwfix.com To view instruction manuals online, visit www.kingfisher.com/products...
