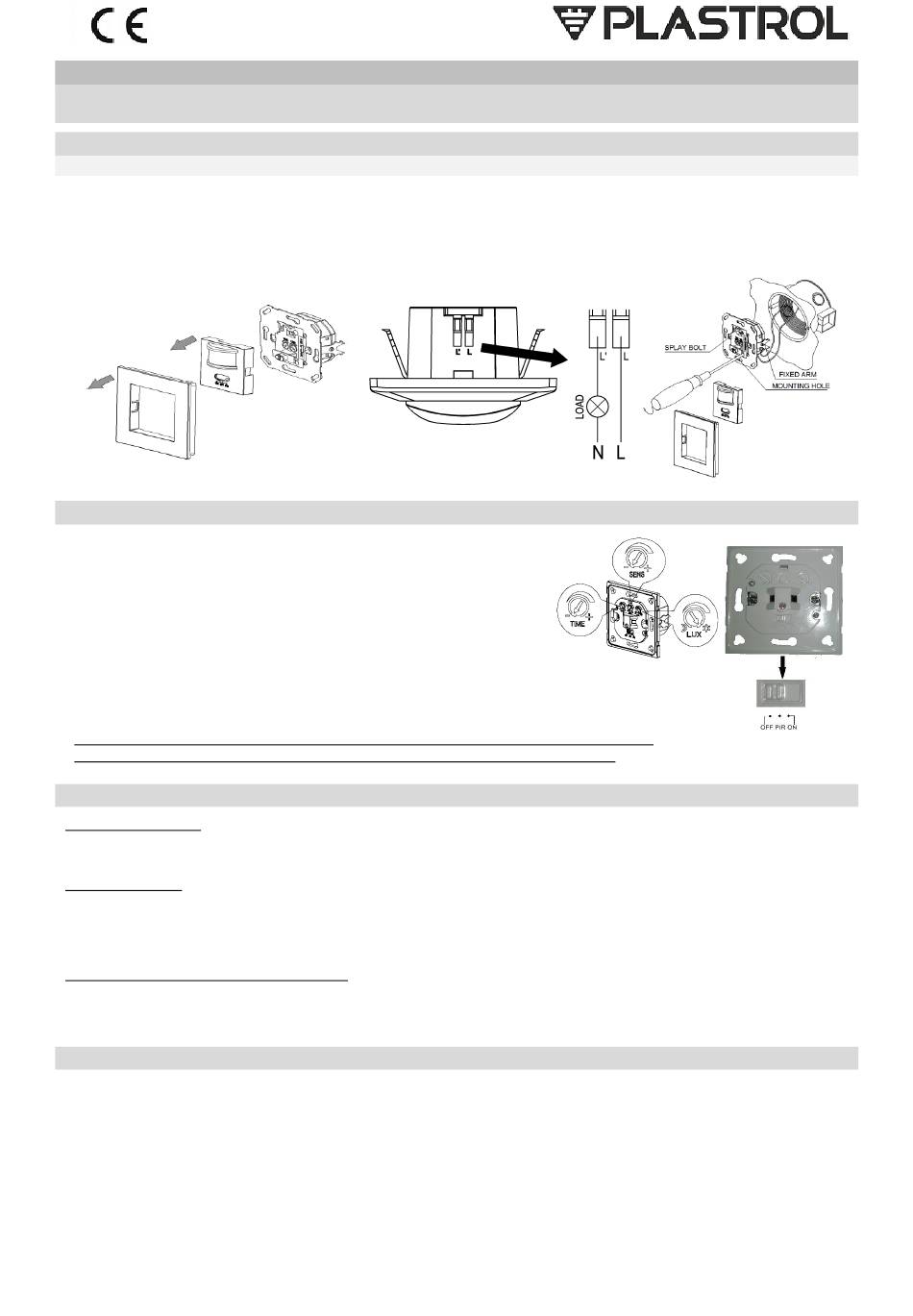

Plastrol CR-IR2/KP Manual

Disassemble the front panel, (fig.1) adjust the delay and time with the appropriate knobs
Loosen clamp screws on both sides, connect the clamp to the power supply as shown in fig. 2.
Install the sensor in the box, tighten the clamp screws on both sides (Fig. 3)
Reattach the faceplate,
Plug in the power source and start testing
fig.1.
1. Set the switch to "ON"
2. Turn the TIME knob to a minimum.Turn the LUX knob to the maximum
3. Turn the power on. The light should light up, set the switch to "ON".
The lamp should remain on.Set the switch to "OFF".
The light should go out immediately.
4. Set the switch to "PIR". Turn the power on.
After 30 seconds the sensor will start working.
If it receives a signal, the light will be on.
If after 13 seconds the sensor does not receive a signal, the light will go out.
5. Turn the "LUX" knob to the minimum.
If the ambient light is less than 3 lux, the light will not turn on again,
if the ambient light is greater than 3 lux, the sensor will work
Note: When testing in sunlight, set LUX to maximum, otherwise the sensor may not work!
If the lamp power is more than 60W, the distance between the lamp and the sensor
The load does not work
a. Check the connection between the power source and the load.
b. Check if the load is correct
c. Check that the sensor settings correspond to the external conditions
Sensitivity is too low
a. Check that there is no obstacle between the sensor and the detected object.
b. Check that the ambient temperature is not too high
c. Check that the signal source is not outside the detection field
d. Check that the sensor is mounted at the correct height
e. Check if the movement speed is correct
The sensor cannot automatically turn off the load
a. Check if there is a continuous signal in the detection field
b. Check that the delay is set to maximum
c. Check that the electrical parameters correspond to the parameters of the device
1. The maintenance should be performed with the power supply disconnected.
2. Clean only with delicate, dry fabrics.
3. Do not use chemical cleaners.
4. Do not cover the product during operation.
5. Provide free air access.
Manual
Motion sensor
Model: CR-IR2/KP/WHITE

Assembly

TURN OFF POWER BEFORE ASSEMBLY
fig.2.

Testing

FAQ

Safety / Maintenance

fig.3.
