Summary of Contents for McConnel Mk2
- Page 1 Publication 726 Part No. 22675.26 January 2013 Revised: 26.11.14 DEBRIS BLOWER Mk2 Operation & Parts Manual...
- Page 2 VERIFICATION OF WARRANTY REGISTRATION DEALER WARRANTY INFORMATION & REGISTRATION VERIFICATION It is imperative that the selling dealer registers this machine with McConnel Limited before delivery to the end user – failure to do so may affect the validity of the machine warranty.
- Page 4 1500 hours. Engine warranty will be specific to the Manufacturer of that unit. 1.02. All spare parts supplied by McConnel Ltd and purchased by the end user are warranted to be free from defects in material and workmanship from the date of sale to the original purchaser for a period of 6 months.
- Page 5 2.02. Any fault must be reported to an authorised McConnel Ltd dealer as soon as it occurs. Continued use of a machine, after a fault has occurred, can result in further component failure for which McConnel Ltd cannot be held liable.
- Page 6 MISCELLANEOUS 4.01. McConnel Ltd may waive compliance with any of the terms of this limited warranty, but no waiver of any terms shall be deemed to be a waiver of any other term. 4.02. If any provision of this limited warranty shall violate any applicable law and is held to be unenforceable, then the invalidity of such provision shall not invalidate any other provisions herein.
- Page 7 DECLARATION OF CONFORMITY Conforming to EU Machinery Directive 2006/42/EC McCONNEL LIMITED, Temeside Works, Ludlow, Shropshire SY8 1JL, UK Hereby declare that: The Product; Hydraulic Powered Blower Attachment Product Code; HKIT Serial No. & Date ………………………………… Type ………………………… Manufactured in; United Kingdom Complies with the required provisions of the Machinery Directive 2006/42/EC The machinery directive is supported by the following harmonized standards;...
- Page 8 Temeside Works Ludlow Shropshire England Telephone: +44 (0)1584 873131 www.mcconnel.com Operating, servicing and maintaining this equipment can expose you to chemicals including gasoline, diesel fuel, lubricants, petroleum products, engine exhaust, carbon monoxide, and phthalates, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Page 10: Table Of Contents
CONTENTS Operator Section Introduction Safety Information Fitting the Debris Blower Tractor Oil Flow Rates Hydraulic Connections Operation Parts Section Debris Blower Assemblies Casing Modules Motor Module Manifold Assembly Hydraulic Fitting Kit Mounting Kits... -
Page 12: Introduction

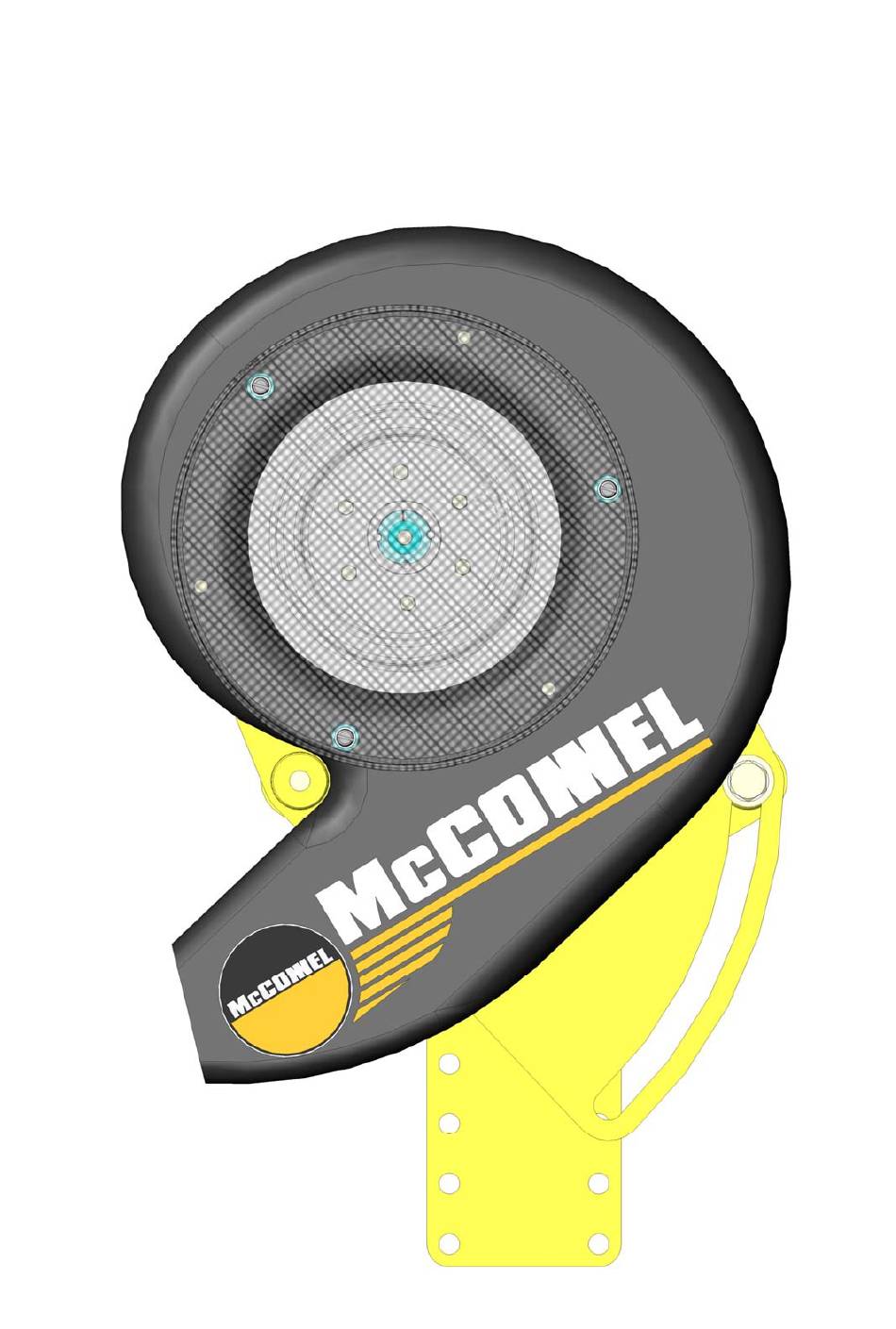

INTRODUCTION The McConnel Debris Blower is a self contained unit which blows the debris generated during flail cutting off the highway and onto the verge. High and low flow versions are available to suit different models of tractor. If unsure please contact your Local Dealer or McConnel Limited for advice. -
Page 13: Safety Information
No advice given here can replace ‘good common sense’ and ‘total awareness’ at all times, but will go a long way towards the safe use of your McConnel machine. -
Page 14: Fitting The Debris Blower
FITTING THE DEBRIS BLOWER Debris Blowers are attached to the hedgecutter using a mounting kit specifically designed for the particular machine, a ‘T’ shaped plate which carries the blower unit is then bolted to the carrier bracket; both are equipped with a series of holes which allows vertical and side to side adjustment. -
Page 15: Tractor Oil Flow Rates
Note; when fitting is complete there should be 36mm (1½”) of clearance between the rear of the tank and the blower motor. It is the aim to mount the blower as far as possible towards the outside edge of the tank to give maximum coverage of the road. -
Page 16: Hydraulic Connections
HYDRAULIC CONNECTIONS - Tractors with ‘Open Centre’ Hydraulics T.I. Machines For debris blowers that are fitted to T.I. machines the pressure supply hose is taken from the tractors single acting auxiliary service and connected to the flow control valve block opposite the hexagon head of the valve. -
Page 17: Operation
HYDRAULIC CONNECTIONS - Tractors with ‘Closed Centre’ Hydraulics For tractors with closed centre hydraulics the following modifications to both T.I and S.I. installations are required: PORT ‘T1’ Remove Tee piece & return hose from this port and fit blanking plug. MOTOR OUTLET PORT Connect the return hose to tractor directly from the motor outlet port. - Page 18 DEBRIS BLOWER Mk2 Inc. MOUNTING KITS PARTS LIST Revised: 26.11.14...
- Page 19 DEBRIS BLOWER Mk2 (Machines prior to S/N: M1332400) McCON NEL Module(s): 7319255 – L/H Build (illustrated), 7319254 – R/H Build...
- Page 20 DEBRIS BLOWER Mk2 (Machines prior to S/N: M1332400) McCON NEL Module(s): 7319255 – L/H Build (illustrated), 7319254 – R/H Build REF. QTY. PART NO. DESCRIPTION 7319254 DEBRIS BLOWER ASSEMBLY - RH Build 7319255 DEBRIS BLOWER ASSEMBLY - LH Build 7319270...
- Page 21 McCON NEL Module(s): This page is intentionally blank...
- Page 22 DEBRIS BLOWER Mk2 (Machines S/N: M1332400 onward) McCON NEL Module(s): 7319256 – L/H Build, 7319257 – R/H Build (illustrated) RH Build illustrated REF. QTY. PART NO. DESCRIPTION 7319257 DEBRIS BLOWER ASSEMBLY - RH Build 7319256 DEBRIS BLOWER ASSEMBLY - LH Build...
-
Page 23: Casing Modules
DEBRIS BLOWER CASING MODULES McCON NEL Module(s): 7319700 – R/H Build (illustrated), 7319701 – L/H Build... - Page 24 DEBRIS BLOWER CASING MODULES McCON NEL Module(s): 7319700 – R/H Build (illustrated), 7319701 – L/H Build REF. QTY. PART NO. DESCRIPTION 7319700 BLOWER CASING MODULE - R/H Build 7319701 BLOWER CASING MODULE - L/H Build 7319270 FAN CASING 7319271 SHROUD 7319272 MESH GUARD 7319273...
-
Page 25: Motor Module
DEBRIS BLOWER MOTOR MODULE (Low Flow) McCON NEL Module(s): 7319702 REF. QTY. PART NO. DESCRIPTION 7319702 MOTOR MODULE (Low Flow) 8301317 HYDRAULIC MOTOR (8cc 250BAR) 7319013 SPECIAL WASHER 9213074 BOLT 9163004 NYLOC NUT 9313033 SETSCREW 8301045 ELBOW C/W CAPSCREWS & O RING 8650104 BONDED SEAL 7319014... -
Page 26: Manifold Assembly
DEBRIS BLOWER MANIFOLD ASSEMBLY McCON NEL Module(s): 8132315 REF. QTY. PART NO. DESCRIPTION 8132315 MANIFOLD ASSEMBLY 8132312 DEBRIS BLOWER MANIFOLD 8104048 LOGIC VALVE 8650104 BONDED SEAL 8581110 ADAPTOR 05.433.06 PLUG WITH CONE 9363056 RESTRICTOR - 0.7mm 9363060 RESTRICTOR - 3.9mm 8582041 TAPER PLUG... -
Page 27: Hydraulic Fitting Kit
DEBRIS BLOWER HYDRAULIC FITTING KIT McCON NEL Module(s): 7319704 REF. QTY. PART NO. DESCRIPTION 7319704 HYDRAULIC FITTING KIT 05.433.06 PLUG WITH CONE 10.005.30 HOSE - 1/2"BSP FS/FS x 2000mm 8581296 TEE ADAPTOR 10.006.07 HOSE - 1/2" BSP FS/F90 x 350mm 8581110 ADAPTOR 8590074... -
Page 28: Mounting Kits
LEG PIN 7319282 HOSE RING 9100106 FLAT WASHER 9100206 SPRING WASHER 9143006 SELF-LOCKING NUT 9213106 BOLT 9313056 SETSCREW 9313076 SETSCREW Suitable for the following machines: PA32, PA41, PA45*, PA47 Mk1*, PA47 Mk2, PA48, PA50Mk1*, PA50 Mk2, PA55/60 (* without lightbars) - Page 29 DEBRIS BLOWER MOUNTING KIT McCON NEL Module(s): 7456770 – L/H Build (illustrated), 7456771 – R/H Build REF. QTY. PART No. DESCRIPTION 7456770 DEBRIS BLOWER MOUNTING KIT - L/H Machines 7456771 DEBRIS BLOWER MOUNTING KIT - R/H Machines 0431105 SPRING COTTER 21150.01 PUSH ON CABLE TIE 43492.01...
- Page 30 DEBRIS BLOWER MOUNTING KIT McCON NEL Module(s): 7650770 – L/H & R/H Builds REF. QTY. PART No. DESCRIPTION 7650770 DEBRIS BLOWER MOUNTING KIT - L/H & R/H 7319276 LEG MOUNTING BRACKET 9213226 BOLT 9143006 SELF-LOCKING NUT Suitable for the following machines: PA5000, PA6000, PA7000...
- Page 31 DEBRIS BLOWER MOUNTING KIT McCON NEL Module(s): 7756770 – L/H Build (illustrated), 7756771 – R/H Build REF. QTY. PART No. DESCRIPTION 7756770 DEBRIS BLOWER MOUNTING KIT - L/H Machines 7756771 DEBRIS BLOWER MOUNTING KIT - R/H Machines 43492.01 BLOWER BRACKET 43492.03 BLOWER BRACKET - L/H Build 43492.04...
- Page 32 McConnel Limited, Temeside Works, Ludlow, Shropshire SY8 1JL. England. Telephone: 01584 873131. Facsimile: 01584 876463. www.mcconnel.com...
