Powerfinn PAP3200 Operating Manual

Perämiehenkatu 6, FIN 24100 Salo, Tel. +358 2 777 290, Fax +358 2 777 2918, info@powerfinn.fi, www.powerfinn.fi

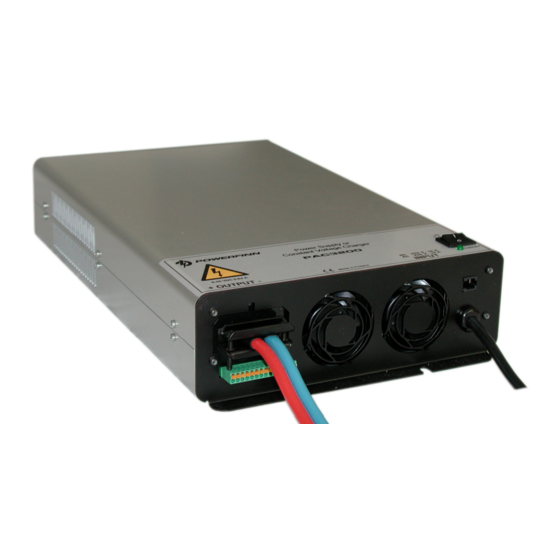

Powerfinn PAP series is a high power, lightweight, advanced power supply using modern switching technology.
All units can be used as a power supply or constant voltage battery charger. The output voltage and output
current can be adjusted from 0 to maximum value by an external 0-5V analog control, with internal adjustment
trimmers or from serial bus.
Specifications
Input voltage
Efficiency
Input current
Frequency
Power factor
Inrush current
Output ripple
Mechanics
Connectors Input
Output
Enclosure
Weight
Output Grounding
Ambient temperature range
Overtemperature protection
Overcurrent protection
Reverse polarity protection
Standards Safety
EMC
Switched Mode Power Supply
Operating manual
Features:
Wide output range 0...320Vdc
Analog control by an external
0...5Vdc
Power failure alarm output
Master-slave connection
70...264Vac 1–phase ( 70...230Vac, reduced power )
70...369Vdc
89% at full load, >90% at 50% load ( 230Vac input )
16A ( max)
47–63Hz
>0,98
soft start
<1% from output voltage, rms
Wall mounting, see dimensions p. 3
Input power cord
Models 12V, 24V, 36V, 48V
Models 72V, 110V, 160V, 220V
Aluminum case, IP20
7,1 kg without cables
Floating
-20° C...+40° C at full load, abs. max. +55° C
Processor controlled on/off
Electrical current limit
With fuse ( 12VDC version doesn't have fuse )
Class 1
EN60335-2-29:2004
EN60335-1:2002 +A11:2004 +A1:2004 +A12:2006 +A2:2006
EN50366:2003 +A1:2006
Conformity can be limited depending end application,
output control method or unit mechanical structure
Limits EN55022 Class A or B,
1
PAP3200
copper busbar terminals
2
10mm 3m output cables
Application must discuss in detail
