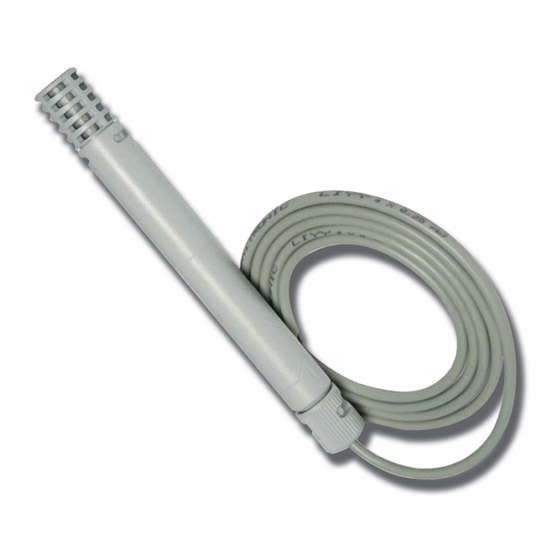

Humidity and temperature transducer

Advertisement

Available languages

Available languages

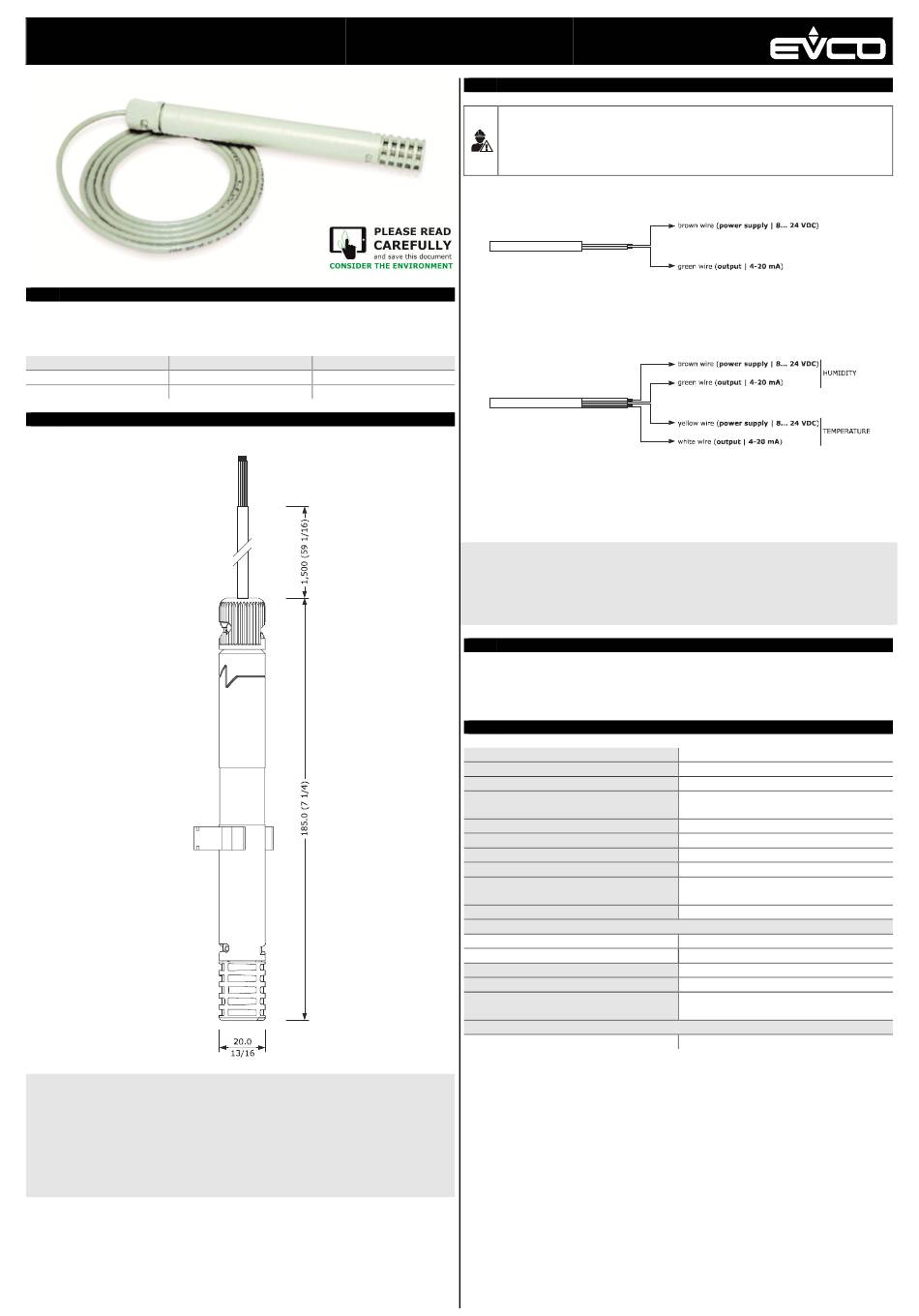

EVCO S.p.A. | EVHP523 & EVHTP523 | Instruction sheet ver. 1.0 | Code 104HTP523A104 | Page 1 of 2 | PT 30/19
EVHP523 & EVHTP523
EN
ENGLISH
-
5... 95 % humidity working range
-
-10... 70 °C temperature working range
-
one 4-20 mA output (EVHP523), two 4-20 mA outputs (EVHTP523).
Purchasing code
Kind of transducer
EVHP523
EVHTP523
humidity and temperature
1

MEASUREMENTS AND INSTALLATION

Measurements in mm (inches). Wall mounting, fixing clip and screw provided.

INSTALLATION PRECAUTIONS

Install the device as shown in the picture
-
Ensure that the working conditions are within the limits stated in the TECHNICAL
-
SPECIFICATIONS section
Do not install the device close to heat sources, equipment with a strong magnetic field,
-
in places subject to direct sunlight, rain, damp, excessive dust, mechanical vibrations
or shocks
Clean the protective cap periodically (unscrew the cap from the main part of the device
-
and clean it using low pressure compressed air or distilled water).
temperature transducer
Output
humidity
1 x 4-20 mA
2 x 4-20 mA
Humidity and
2

ELECTRICAL CONNECTION

N.B.
- the temperature transducer works provided that the humidity one is correctly
powered
- to reduce any electromagnetic interference locate the power cables as far away as
possible from the signal cables.
4.1

Electrical connection EVHP523

Transducer calibration:
0... 100 % of relative humidity; they correspond respectively to 4 and to 20 mA.
4.2

Electrical connection EVHTP523

Humidity transducer calibration:
0... 100 % of relative humidity; they correspond respectively to 4 and to 20 mA.
Temperature transducer calibration:
-30... 70 °C; they correspond respectively to 4 and to 20 mA.

PRECAUTIONS FOR ELECTRICAL CONNECTION

-
If the device has been moved from a cold to a warm place, the humidity may have
caused condensation to form inside. Wait about an hour before connecting it to the
controller
Disconnect the device from the controller before doing any type of maintenance
-
For repairs and for further information, contact the EVCO sales network.
-
3

FIRST-TIME USE

1.
Install
following
INSTALLATION.
2.
Connect the device to the controller as shown in the section ELECTRICAL CONNECTION.
3.
Power up the controller.
4

TECHNICAL SPECIFICATIONS

Container:
Measurements (main part):
Mounting methods:
Degree
of
protection
covering:
Connection method:
Operating temperature:
Temperature sensor accuracy:
Storage temperature:
Operating humidity:
Humidity sensor accuracy:
Compliance:
RoHS 2011/65/CE
REACH (EC) Regulation no. 1907/2006
Power supply:
Reverse polarity protection:
Maximum load:
Outputs:
1 x 4-20 mA in EVHP523
the
instructions
given
in
the
section
Plastic grey.
Ø 20.0 x 185.0 mm (13/16 x 7 1/4 in).
Wall mounting, fixing clip and screw included.
provided
by
the
IP65 (main part).
Terminals.
From -10 to 70 °C (from 14 to 158 °F).
±1.5 °C.
From -25 to 70 °C (from -13 to 158 °F).
Relative humidity without condensate from 5
to 95 %.
±3 % between 5 and 80 %, ±5 otherwise.
WEEE 2012/19/EU
EMC 2014/30/UE.
8... 24 VDC.
Incorporated.
[(power supply voltage - 8 VDC) / 0,02 A] ±
50 Ohm
2 x 4-20 mA in EVHTP523.
MEASUREMENTS
AND
