Summary of Contents for Sound Technology TR9030GEN2
- Page 1 SOUND TR9030GEN2 PORTABLE VETERINARY X-RAY EQUIPMENT Instruction Manual Version 4.0 DIGITAL RADIOGRAPHY...
- Page 2 Contents This manual provides installation, operation and maintenance instructions for the SOUND TR9030GEN2 portable veterinary x-ray unit. Copy and transfer without notice is prohibited. Operate the equipment correctly according to this instruction manual. Sound Technologies, Inc 1.800.268.5354 soundvet.com...
-
Page 3: Table Of Contents
Contents CONTENTS 1.0 NOTICE FOR SAFE OPERATION (3) 2.0 INTRODUCTION (5) 3.0 COMPONENTS (6) 4.0 MAIN PARTS (7) 5.0 CONTROL PANEL (8) 6.0 PRECAUTION IN USE (9) 7.0 OPERATING PROCEDURES (11) 8.0 WARNING INDICATION (16) 9.0 TROUBLESHOOTING (17) 10.0 DR INTERFACE CONNECTOR (18) 11.0 SPECIFICATION (20) 12.0 DUAL kV SYSTEM (22) Sound Technologies, Inc... -
Page 4: Notice For Safe Operation
3. During operation, the operator should be fully protected from exposure to radiation and use a dosimeter badge. 4. The SOUND TR9030GEN2 have been developed specially for diagnostic veterinary x-ray applications. It should not be used for other applications. 5. X-ray equipment should be operated only by individuals who have appropriate training and licenses. - Page 5 1.0 Notice for Safe Operation 8. After using the equipment: A) Remove cords carefully, if necessary. B) Keep equipment clean and dry. C) Store inside carrying case in cool, dry environment. 9. Maintenance For proper maintenance, this schedule must be followed: A) Every 6 months 1) Check the alignment of the collimator light field with the x-ray beam.
-
Page 6: Introduction
2.0 INTRODUCTION 2.0 INTRODUCTION The SOUND TR9030GEN2 are a constant potential portable x-ray device utilizing the latest high frequency inverter system. These x-ray units have the following features: 1. This x-ray unit is very easy to carry by hand because of its small size and lightweight. -
Page 7: Components
3.0 COMPONENTS 3.0 COMPONENTS 1.0 X- ray Equipment 1 set (SOUND TR9030GEN2) 2.0 Hand-held Exposure Switch and Cord 1pc. Exposure switch (HS-M1), Cord (MXSWC-C3.0) 3.0 Spare Fuse 2pc. (250V/30A for 120V model, 250V/15A for 230V model) 4.0 Instructional Manual 1pc. -
Page 8: Main Parts

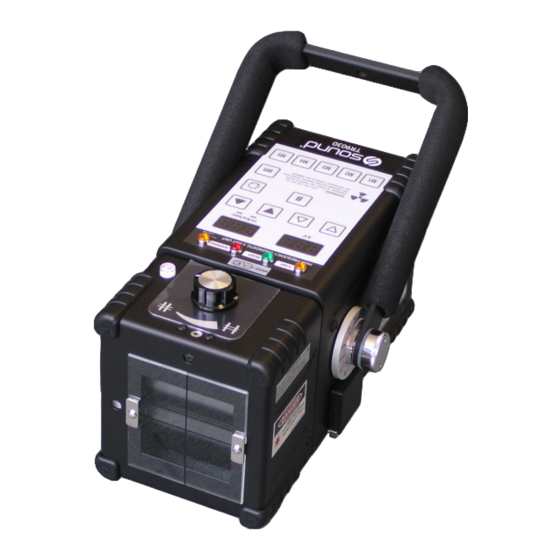

4.0 MAIN PARTS OF SOUND TR9030GEN2 4.0 MAIN PARTS OF SOUND TR9030GEN2 Battery compartment Angle Indicator Level meter Knob to adjust x-ray field size (horizontal) Adjustment screw for vertical laser pointer Tape measure Collimator Reset switch for Low Adjustment screw for... -
Page 9: Control Panel
5.0 CONTROL PANEL OF SOUND TR9030GEN2 5.0 CONTROL PANEL OF SOUND TR9030GEN2 1. X-ray Indicator 9. kV Adjustment Button (-) 2. Ready Indicator 10. kV Adjustment Button (+) 3. Red warning Indicator*) 11. sec/mAs Adjustment (-) Page16 4. Yellow warning Indicator*) 12. -
Page 10: Precaution In Use
To reduce exposure problems and prolong x-ray tube life span, perform these warm up procedures: 4-1. Perform the following procedures if the SOUND TR9030GEN2 are idle more than one (1) week. RADIATION HAZARD: Make sure the collimator is fully closed and no unnecessary people stand close to the x-ray unit. - Page 11 6.0 PRECAUTIONS IN USE 6.0 PRECAUTIONS IN USE 4-1-1. Set to minimum kV at 0.2 sec. Take 5 exposures, each interval = 12 sec. 4-1-2. Set to maximum kV at 0.2 sec. Take 2 exposures, at interval = 12 sec. 4-2-3.
-
Page 12: Operating Procedures
7.0 OPERATING PROCEDURES 7.0 OPERATING PROCEDURES RADIATION HAZARD: During operation, insure that operator is fully protected from radiation. Connection Connect POWER CORD and EXPOSURE SWITCH CORD to the x-ray unit. Connect POWER CORD PLUG to grounded electrical outlet of proper voltage, amperage, and hertz. CAUTION: Check PRECAUTIONS IN USE. - Page 13 Follow these procedures for aligning the laser beams with the central ray of the x-ray before using the LP4 Dual Laser Pointers supplied on the SOUND TR9030GEN2. Operation 1. Press MAIN POWER SWITCH on the rear panel to the on position. Each digital display on the control panel will illuminate.
- Page 14 Full mA output is available from the x-ray unit in normal input voltage conditions. If input voltage is low, the SOUND TR9030GEN2 can be put into Low mA Mode to reduce mA output by 50%. This will ensure that you can produce a quality radiographic image under low input voltage conditions. No other x-ray units offer this feature.
- Page 15 7.0 OPERATING PROCEDURES Press and hold the Shift Button while pressing the Up Arrow button below the mAs/sec display. The yellow Low V Indicator Lamp will blink, indicating that your x-ray unit has been successfully put into Low Voltage Mode. NOTE: mA output is now reduced by 50% from levels in normal voltage operating conditions.
-
Page 16: Warning Indication
If the yellow warning indicator is on, the x-ray unit has been operated in low input voltage conditions. Follow the steps on page 14 to put the SOUND TR9030GEN2 into Low mA Mode, which reduces the mA output by 50%. This will enable you to continue to operate the x-ray unit in these conditions and still produce high quality diagnostic radiographic images. -
Page 17: Troubleshooting
9.0 TROUBLESHOOTING 9.0 TROUBLESHOOTING This x-ray unit has self-diagnostic indications of failure or malfunction. If the following SYMPTOM is displayed, stop exposing and follow the CORRECTIVE ACTION described below. The unit has malfunctioned and x-ray cannot be generated. SYMPTOMS CORRECTIVE ACTION 1) Turn off the main power switch, and turn on again after 60 or more seconds. - Page 18 9.0 TROUBLESHOOTING SYMPTOMS CORRECTIVE ACTION 1) Turn off the main power switch, and turn on again after 60 or mAs indicator and sec more seconds. indicator are both lit. 2) If the indicators remain on, please contact your dealer or MIKASA for service.
-
Page 19: Dr Interface Connector
10.0 DR INTERFACE CONNECTOR 10.0 DR INTERFACE CONNECTOR The SOUND TR9030GEN2 has an interface circuit for connection to a DR imaging system. When using a DR system, we recommend that you connect the interface cable to the x-ray unit using this connector. - Page 20 10.0 DR INTERFACE CONNECTOR SOUND TR9030GEN2 DR system side Interface Signal Description Detect Ready READY_REQ (Filament signal ON) SOUND TR9030GEN2 Sound Technologies, Inc 1.800.268.5354 soundvet.com...
- Page 21 X-ray emission signal (RX_REQ) Delay time < 20 msec Enable X-ray signal (RX_COM) Delay time < 20 msec Use edge of Enables-X-ray signal Please consult with manufacturer of your DR system, when you connect SOUND TR9030GEN2 Sound Technologies, Inc 1.800.268.5354 soundvet.com...
-
Page 22: Specification
11.0 SPECIFICATIONS for SOUND TR9030 11.0 SPECIFICATIONS for TR9030GEN2 Rating Nominal line voltage: Single – phase, 110VAC – 130VAC, 50/60Hz(120V model) Single – phase, 210VAC – 250VAC, 50/60Hz(230V model) Safe operating line voltage (on load): Single – phase, 70VAC – 140VAC, 50/60Hz(120V model) Single –... - Page 23 Environmental Conditions For transport and storage Temperature:-40°C to +70°C Humidity: 10% to 100% Atmospheric Pressure: 500hPa to 1060hPa X-ray Generator and X-ray tube of SOUND TR9030GEN2 Generator Generator system: 80kHz high frequency inverter system Electric power: 1.8kW @ 60kVDC, 30mA Tube voltage: tolerance +/-10% range: 40kVDC –...
- Page 24 11.0 SPECIFICATIONS for SOUND TR9030 Exposure timer: tolerance +/-(10%+1msec) range: 0.02sec – 0.2sec : 0.01sec step 0.2sec – 0.4sec : 0.02sec step 0.4sec – 1.0sec : 0.05sec step 1.0sec – 2.0sec : 0.10sec step Leakage technique factors: 0.25mA @ 90kV 0.25mA is maximum rated continuous current for 15mA with duty cycle 1:60 Filtration: inherent filtration: 2.3mmAl...
-
Page 25: Dual Kv System
12.0 DUAL kV SYSTEM 12.0 DUAL kV SYSTEM This system offers two tube voltage in one exposure. This system is provided by the software version 1.37 of M2300. The waveform of tube voltage 0.005sec peak voltage indicate voltage 110% 0.02sec This system is effective in especially the tube voltage of 82kV or less.
