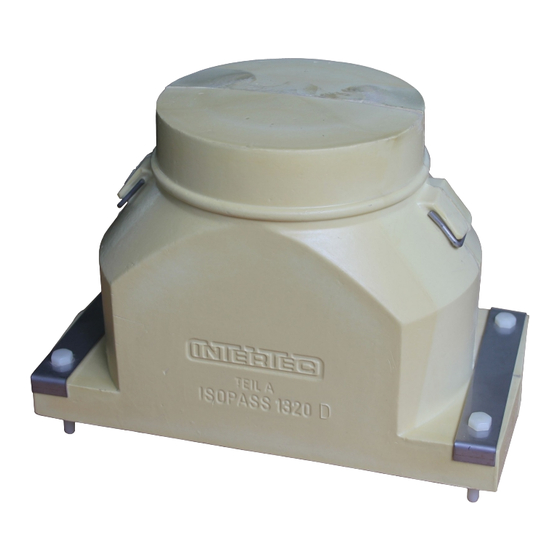

Summary of Contents for Intertec Data Systems ISOPASS

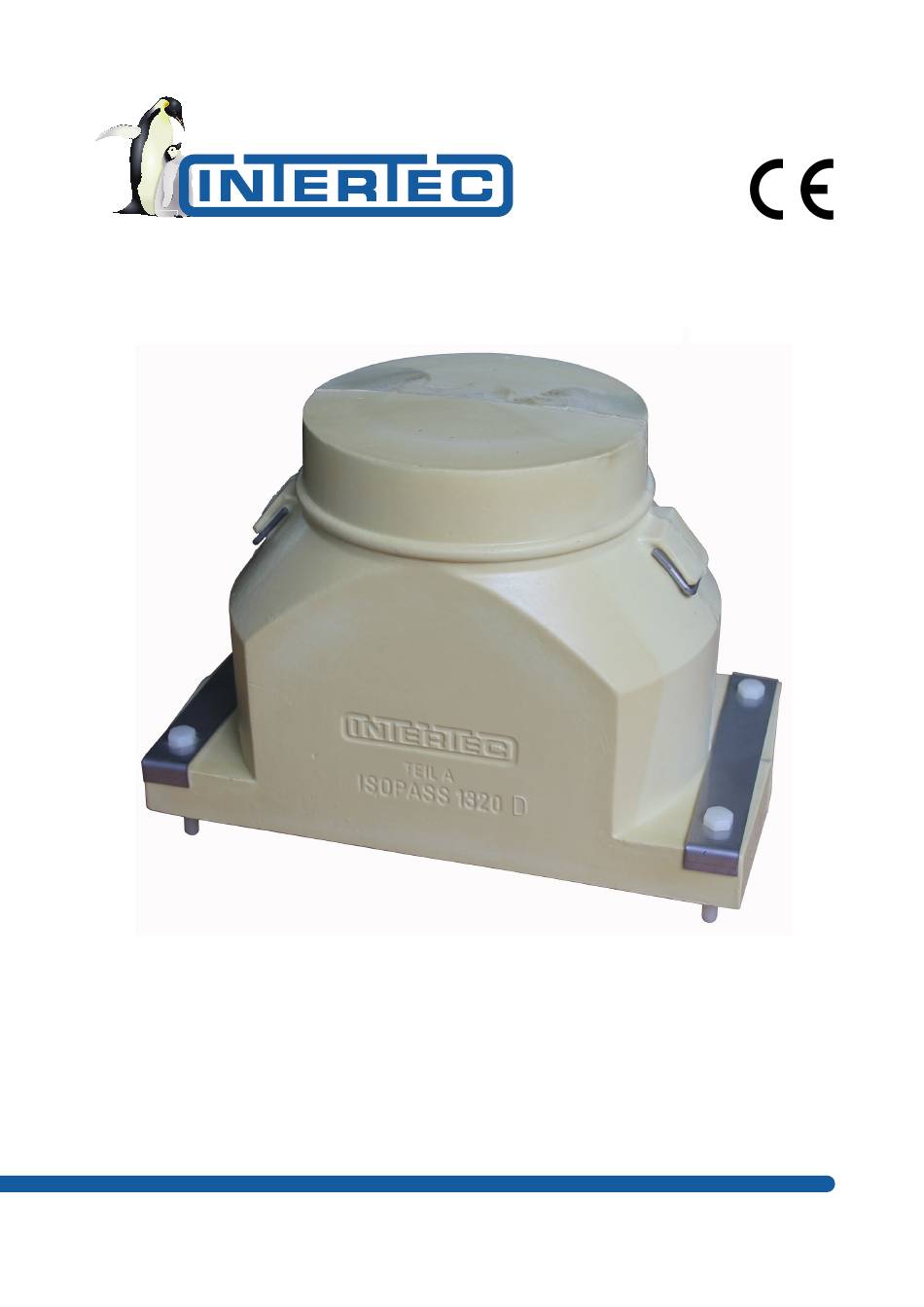

- Page 1 Insulation adapter ISOPASS KMI111379595Ien-1 • 08/05/2019...
- Page 2 www.intertec.info Table of contents 1 Information and regulations to be complied with .................... 3 2 Explanation of symbols for warnings and signal words .................. 3 3 Safety information .............................. 3 3.1 Prerequisite for Safe Operation ........................ 3 3.2 Qualifications of the Personnel ......................... 3 3.3 National Regulations............................ 3 3.4 Safety of the Product and safe Operation...................... 3 4 Technical Data ................................
- Page 3 Mounting Instructions Insulation adapter ISOPASS Information and regulations to be NOTICE complied with NOTE The following must be complied with: It is essential to pay attention to this safety advice as you • The contents of the assembly instruc- may otherwise incur material damage.
- Page 4 Mounting Instructions Insulation adapter ISOPASS Addition D = suitable for DIABOX protective boxes Installing at the Bottom of Housings The two half-shells made from rigid integral polyurethane foam are placed around the impulse line. The thin-wall covering of the adapter is cut out to fit the diameter of the pipe.
- Page 5 Mounting Instructions Insulation adapter ISOPASS For installation at the top or side of the housing, the ISO- PASS insulation adapter must also be sealed against the penetration of moisture. Firstly, cut-outs corresponding to the diameter of the pipe must be made in the thin-wall covering of the adapter.
- Page 6 Mounting Instructions Insulation adapter ISOPASS The local community authorities or specialist waste dis- posal companies can provide information on environ- mentally friendly disposal. Manufacturer's Instructions In the event of fires, after burglary or attempted burglary, after improper changes to the structure or function of the...
