Summary of Contents for EVC BDM100

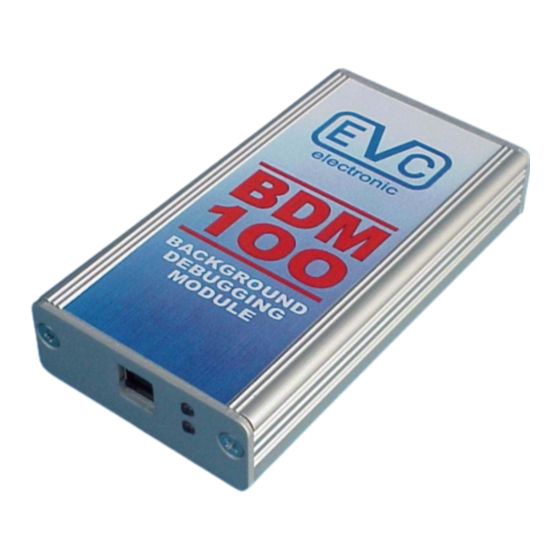

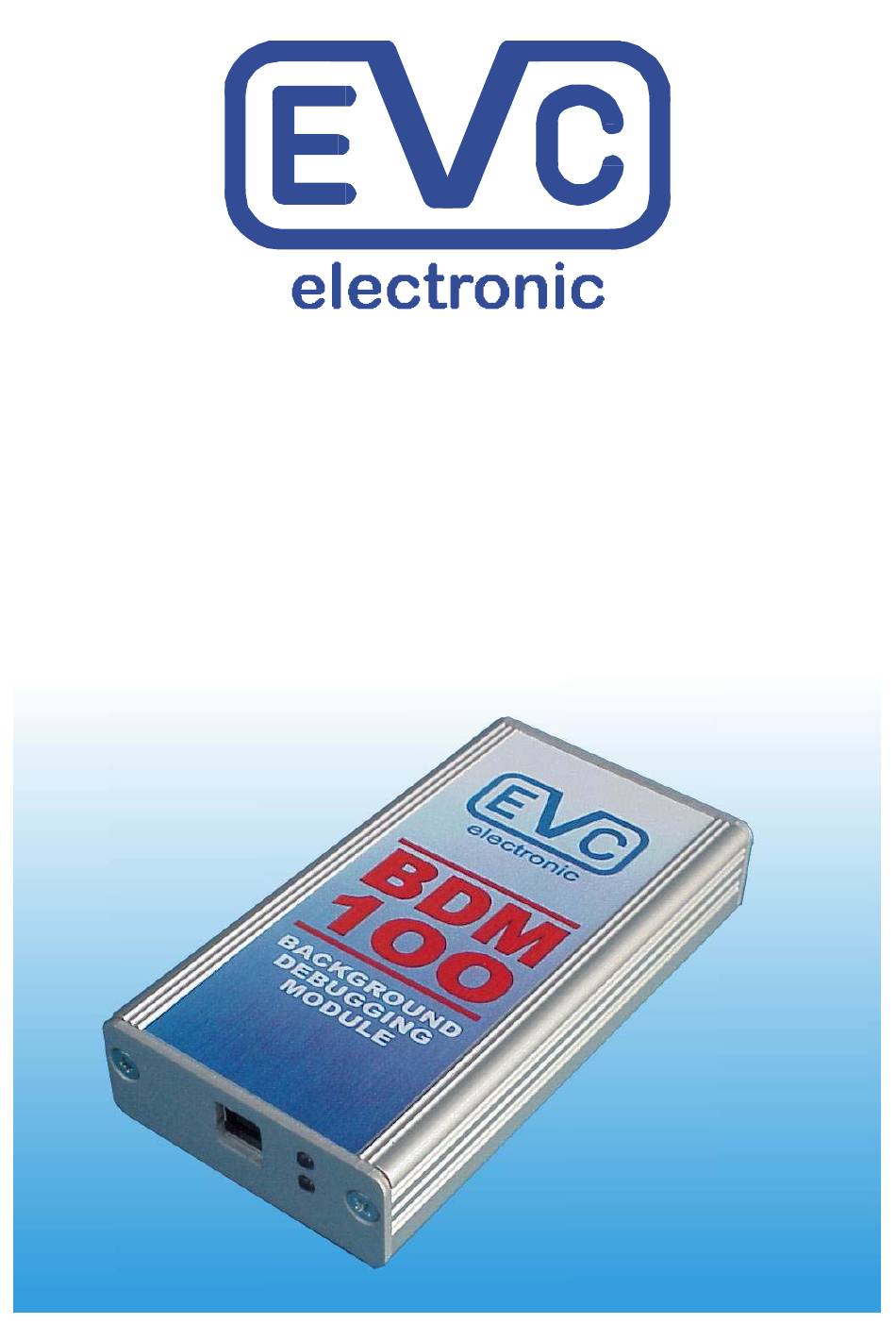

  • Page 1 Manual BDM100...

  • Page 2: Table Of Contents

    Interconnections for Siemens SIM90P ECUs ......... 30 Interconnections for Siemens Simos6.x ECUs ........31 The Alignment of the BDM-Port Pads ............. 32 Pin Out BDM100 Module ................33 Pin Out BOSCH System Programming Pads .......... 33 Some ECUs with BDM capability ............. 34...

  • Page 3: Important

    Nevertheless you should read this manual carefully, because any failure may result in the destruction of the ECU. ! To avoid damages on your BDM100-module or on an ECU, please carefully read this manual before you start running the BDM100 Module with an ECU !

  • Page 4: Interconnections For Bosch Edc16 And Me9 Ecus

    Pict. B: The BDM143 probe contacting the pads. The red LED of the BDM143 and also the upper of the two blue LEDs on the front panel of the BDM100 module should light up to indicate, that the ECU board is supplied with the required voltage.

  • Page 5: Interconnections For Bosch Edc7 Ecus

    (as shown in picture B) Now connect the BDM143 probe to the BDM100 module Ensure that the switch of the BDM143 probe is in its ‘OFF’-position. Carefully put the tips of the spring contact probes on the pads on the board as shown in picture B.

  • Page 6: Interconnections For Bosch Ecus Using A Bdm120 Cable

    Interconnections for Bosch ECUs using a BDM120 Cable For connecting the BDM100 module to the EDC16 or to the ME9 ECUs the BDM120 cable is required which is equipped with an own power supply First solder the 12way pin header onto the pads for the BDM port of the EDC16 or ME9 board (picture A).

  • Page 7: Interconnections For Bosch Me9.0 Ecus

    Pict. B: This are the required pads for the BDM best contact conditions. Interface. Then connect the BDM110 flat wire cable to the BDM100 module which should already connected to your computer. If you then applying power to the main connector of the ECU the red LED on the...

  • Page 8: Interconnections For Bosch Me9.7 Ecus

    Pict. B: This are the required pads for the BDM best contact conditions. Interface. Then connect the BDM110 flat wire cable to the BDM100 module which should already connected to your computer. If you then applying power to the main connector of the ECU the red LED on the...

  • Page 9: Interconnections For Bosch Med9.7 Ecus

    Pict. B: This are the required pads for the BDM best contact conditions. Interface. Then connect the BDM110 flat wire cable to the BDM100 module which should already connected to your computer. If you then applying power to the main connector of the ECU the red LED on the...

  • Page 10: Interconnections For Daimler-Chrysler Etc5 Ecus

    BDM149 probe (if used) lights up to indicate that the logic on the board is supplied with the required voltage. The BDM100 module is now operational. After programming the ECU, it is recom- mended to reconnect the disrupted PCB- track as shown in Pictrure C.

  • Page 11: Interconnections For Delphi Ecus

    ECU the red LED of the BDM142 probe lights up to indicate that the logic on the board is supplied with the required voltage. Pict. C: The BDM142 probe contacting the BDM port pads of a Delphi ECU. EVC electronic GmbH -11- BDM100 Module...

  • Page 12: Interconnections For Delphi Dcm3.2 Ecus

    ECU the red LED of the BDM147 probe lights up to indicate that the logic on the board is supplied with the required voltage. The BDM100 module is now operational. Pict . C: Like that the BDM147 probe will be positioned over the DCM3.2 board.

  • Page 13: Interconnections For Delphi Dcm3.2 (Mb Version)

    ECU the red LED of the BDM147 probe lights up to indicate that the logic on the board is supplied with the required voltage. The BDM100 module is now operational. Pict . C: Like that the BDM147 probe will be positioned over the DCM3.2 board.

  • Page 14: Interconnections Marelli Ecus

    Don’t forget to solder the zero-ohm resistor on its place again when the work with the BDM equipment is done. Pict. C: On this Marelli MJD-ECU (with another PCB-design) the resistor is already out-soldered. EVC electronic GmbH -14- BDM100 Module...
  • Page 15 Interconnections Marelli ECUs BDM110-cable made connecting the BDM100 module with ECUs using a 10way standard BDM-port with a 0.1’ pitch. On a Marelli board you will find a 12pad array with 0,05’ pitch for the BDM port. Two of them, pad 11 and pad 12 are unused (pitcure D).

  • Page 16: Interconnections-For Siemens Hmc Theta Pi Ecus

    BDM144 probe lights up to indicate that the logic on the board is supplied with the required voltage The BDM100 module is now operational Pict. C: The tips of the spring contact probes should reach a spring travel of 2mm minimum for...

  • Page 17: Interconnections For Siemens Ms45 Ecus

    ECU the red LED of the BDM141 probe lights up to indicate that the logic on the board is supplied with the required voltage Pict . C: The BDM141 contacting BDM- Pads. The BDM100 module is now operational. EVC electronic GmbH -17- BDM100 Module...

  • Page 18: Interconnections For Siemens Mss65 Ecus

    BDM14x probe lights up to indicate that the logic on the board is supplied with the required voltage Pict C: The BDM141 probe contacting the BDM- The BDM100 module is now operational pads of the second processor.. EVC electronic GmbH -18- BDM100 Module...

  • Page 19: Interconnections For Siemens Mss70 Ecus

    BDM-pads on the board as shown in picture B. Then connect the BDM110 flat wire cable to the BDM100 module which must already connected to your computer. The tips of the spring contact probes should reach a spring travel of 1mm minimum for best contact conditions.

  • Page 20: Interconnections For Siemens Msv70 Ecus

    Use separate wires to connect GND and +12Vcc to the pins of the main connector shown in picture A To make the BDM100-Modul able to recognize the ECU, a drop of solder or a zero-Ohm resistor is required. Place it between the both solder pads which are marked by a yellow circle on picture B.

  • Page 21: Interconnections For Siemens Ppd1.1 Ecus

    BDM-pads on the board as shown in picture B. Then connect the BDM110 flat wire cable to the BDM100 module which is already connected to your computer. Pict. B: This are the pads which are required for the BDM interface.

  • Page 22: Interconnections For Siemens Sid201 Ecus

    ECU, the red LED of the BDM141 probe lights up to indicate that the logic on the board is supplied with the required voltage Pict. C: The BDM141 contacting the BDM- Pads. EVC electronic GmbH -22- BDM100 Module...

  • Page 23: Interconnections For Siemens Sid202 Ecus And Sid803A

    If you then apply power to the main connector of the ECU, the red LED of the BDM141 probe lights up to indicate that the logic on the board is supplied with the required voltage EVC electronic GmbH -23- BDM100 Module...

  • Page 24: Interconnections For Siemens Sid203 Ecus

    If you then apply power to the main connector of the ECU, the red LED of the BDM141 probe lights up to indicate that the logic on the board is supplied with the required voltage EVC electronic GmbH -24- BDM100 Module...

  • Page 25: Interconnections For Siemens Sid204 Ecus

    BDM141 probe lights up to indicate that the logic on the board is supplied with the Pict. C: The BDM141 probe contacting the BDM required voltage pads on the board of the Siemens SID204 ECU EVC electronic GmbH -25- BDM100 Module...

  • Page 26: Interconnections For Siemens Sid206 Ecus

    Don't forget to close the connector of the ECU, the red LED of the jumper (red arrow). BDM141 probe lights up to indicate that the logic on the board is supplied with the required voltage EVC electronic GmbH -26- BDM100 Module...

  • Page 27: Interconnections For Siemens Sid803 Ecus

    ECU the red LED of the BDM141 probe lights up to indicate that the logic on the board is supplied with the required voltage Pict. C: The BDM141 contacting the BDM- Pads. EVC electronic GmbH -27- BDM100 Module...

  • Page 28: Interconnections For Siemens Sim266 Ecus

    Pict. C: The tips of the spring contact probes should reach a spring travel of 2mm minimum for best contact conditions EVC electronic GmbH -28- BDM100 Module...

  • Page 29: Interconnections For Siemens Sim2K

    If the length of the spring contact pins is not long enough, pull the spring contact pins up to the first rast position from their receptacles. Pict. C: The BDM144 probe contacts the board of the SIM2K ECU. EVC electronic GmbH -29- BDM100 Module...

  • Page 30: Interconnections For Siemens Sim90P Ecus

    That connecton is neccessary for making the BDM-interface operable but it does not affect the fünktionality of the ECU so it may remain. Bild C: This is the location for the required jumper. EVC electronic GmbH -30- BDM100 Module...

  • Page 31: Interconnections For Siemens Simos6.X Ecus

    C. Then connect the BDM110 flat wire cable to the BDM100 module which must already connected to your computer. Use the representation in Pict. B for orien-...

  • Page 32: The Alignment Of The Bdm-Port Pads

    Fig. 2: This the typical arrangement of the BDM pads. 2nd. step: Fig. 3: Then estimate which pads are grounded 3rd. step: Fig. 4: The pin1 is left of the two grounded pins, as agreed. EVC electronic GmbH -32- BDM100 Module...

  • Page 33: Pin Out Bdm100 Module

    Pin Out BDM100 Module Picture A shows the pinout of the 10way pin header located on the back of the BDM100 Module. This pinout appropriates the standard BDM port pinout. On ECUs equiped with a 10way BDM- port the interconnection can made by using a simple 10way flat- wire cable.

  • Page 34: Some Ecus With Bdm Capability

    November 23 , 2009 edition, 1 revision Publisher: EVC electronic GmbH, 46539 Dinslaken Author: Matthias Billian Although we were efforted to describe all details with the highest possible precision, nevertheless we can not guarantee an errorfree content of this manual.
