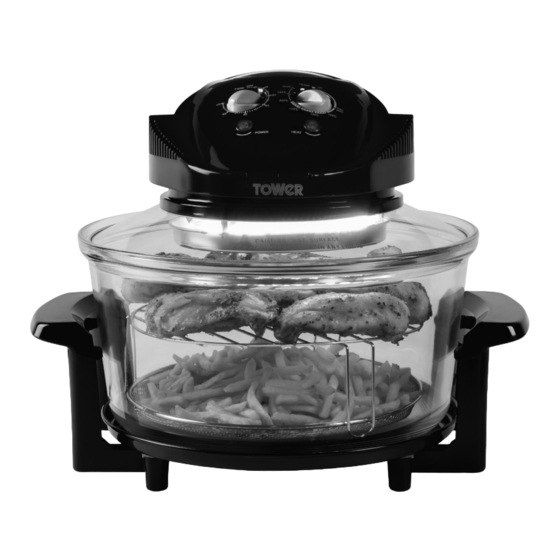

Tower Hobbies T14001 Safety And Instruction Manual

Low fat air fryer
Hide thumbs Also See for T14001:
Table of Contents

Advertisement

Quick Links

T14001
Low Fat Air Fryer
SAFETY AND INSTRUCTION MANUAL
PLEASE READ CAREFULLY
*Subject to registering your Extended Guarantee online at www.towerhousewares.co.uk.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T14001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tower Hobbies T14001

Summary of Contents for Tower Hobbies T14001

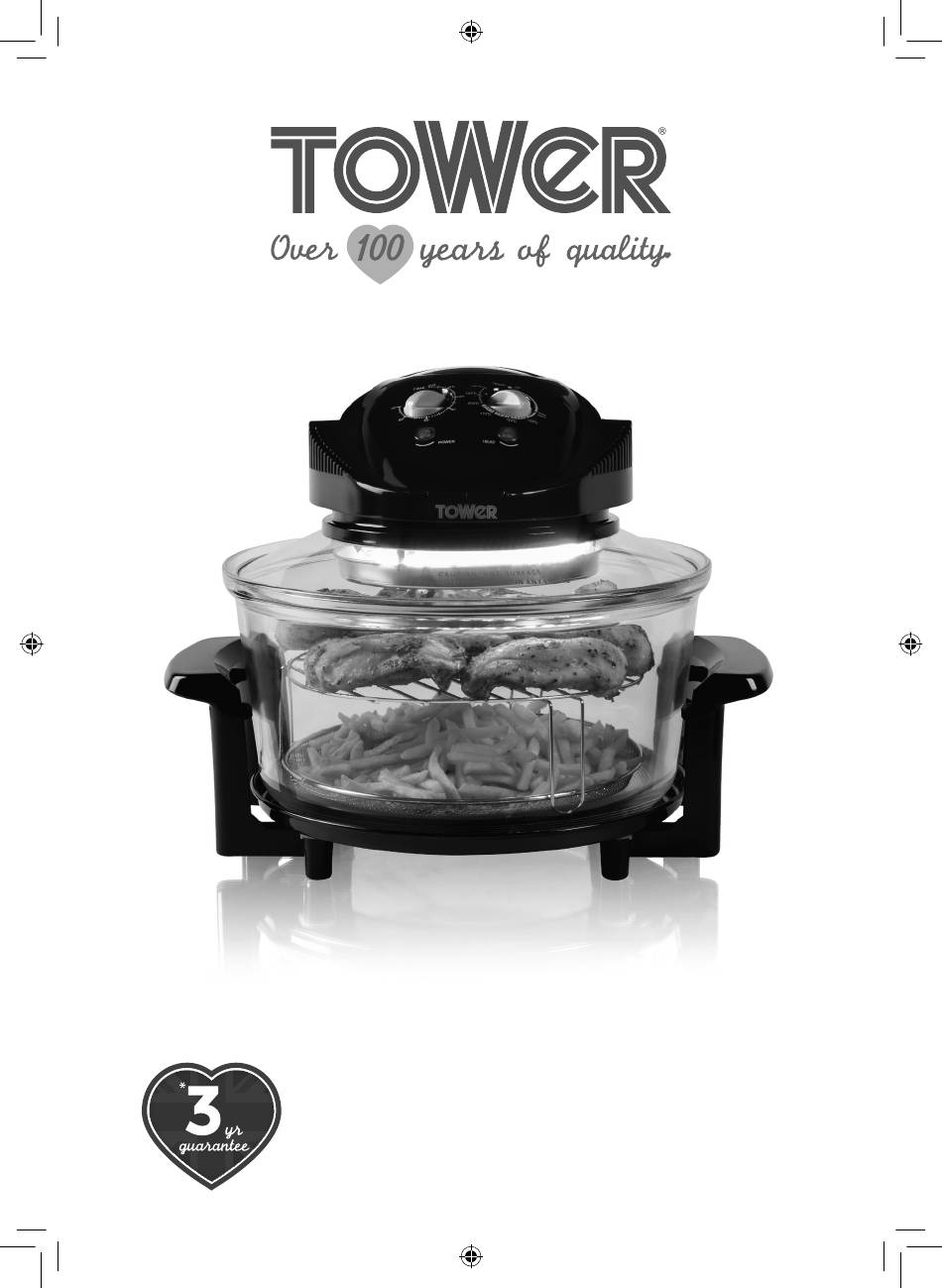

  • Page 1 T14001 Low Fat Air Fryer SAFETY AND INSTRUCTION MANUAL PLEASE READ CAREFULLY *Subject to registering your Extended Guarantee online at www.towerhousewares.co.uk.
  • Page 2 GREAT BRITISH DESIGN, INNOVATION AND EXCELLENCE SINCE 1912 Since the turn of the 20th century, Tower has been designing, developing and manufacturing housewares and small appliances used by millions of households throughout the UK and beyond. During the 1960s, the rise in popularity of pressure cooking saw Tower become the UK’s largest producer of pressure cookers, right through into the late 1980s.

  • Page 3: Table Of Contents

    Contents: Specifications Thank you for purchasing this appliance from the Tower range. Components and structure Technical data Please read this manual carefully BEFORE using the Important Safety appliance for your own safety. Information Before First Use It has been designed to provide many years of Using your Appliance trouble-free use.

  • Page 4: Specifications

    1 - Specifications: This box contains: Instruction Manual Oil Spray Recipe Book 2 x Mesh Plates Tongs 1 x Extension Ring (may be packaged Low Rack around the glass bowl) High Rack Basket Motor Lid Stand Structure of your appliance: Lid- Motor Block Indicator Lights 10.

  • Page 5: Technical Data

    2 - Technical Data: Description: Low Fat Air Fryer Model: T14001 Rated Voltage: 220-240V ~50Hz Power Consumption: 1300W Bowl Volume 10.6L Bowl Volume with Extender Ring Documentation We declare that this product conforms to the following product legislation in accordance with the following directive(s): 2014/30/EU Electromagnetic Compatibility Directive.

  • Page 6: Important Safety Information

    Important Safety Information: Please read these notes carefully BEFORE using your Tower appliance • • Check that the voltage DO NOT pull the plug out of the main circuit by the cord as this may corresponds with the damage the plug and/or rating of the appliance the cable.
  • Page 7 • • This appliance can be DO NOT place the used by children aged air fryer on or near from 8 years and above combustible materials and persons with reduced such as a tablecloth or physical, sensory or curtain. mental capabilities or •...
  • Page 8 • • Hot steam and air may Ensure that food is escape when you remove completely dry before the pan from the air fryer. adding any oil to it and/or putting it in the air fryer. • Any baking trays or oven •...

  • Page 9: Before First Use

    4 - Before First Use Before first use: Remove the parts from the packaging. Place the low fat air fryer on a flat, dry surface. Remove any promotional labels or stickers. Dispose of the packaging in a responsible manner. Place the fryer inside the protective outer basket before turning it on, to prevent injury. When you are ready to use the appliance, be sure that the timer controls are in the “off”...
  • Page 10 Safety handle: The convection oven will not work unless the safety handle is fully clicked into the down position. To do this press the safety button on the handle to lower into place. If you need to remove the lid during the cooking process, lifting the safety handle will stop the heater and the turbo fan while you attend to the dish.
  • Page 11 Application examples: Reference table of time and temperature for cooking various foods. Note: For meats weighing from 1-1.5 Kg, set the temperature at 200°C. Temperature (°C) Cooking Class Quantity Minutes Whole Chicken 2 ¼kg 70-75 Sliced Pork 500g Drumsticks 8 Pieces Fish 10 Pieces Clam...
  • Page 12 Roasting: • Lining the bottom of the bowl with foil will help to catch any drippings from the roast. • Use a low rack to let hot air circulate freely. • The propelled hot air of the convection oven cooks meat evenly and seals in any juices. A meat thermometer is recommended.
  • Page 13 Frozen food: • Large items like meat joints or poultry cannot be cooked from frozen and must be thawed thoroughly first. However, some foods cook best from frozen. • Simply follow the cooking instructions on the packaging as a guideline. •...
  • Page 14 Suggested baking times and temperatures: Food Temperature (°C) Minutes Brownies 18-20 Buns 10-12 Cakes, layer 18-20 Cakes, loaf 30-35 Cornbread 18-20 Cookies: drop 8-10 Cookies: rolled 10-12 Muffins 12-15 Pies/pastries/pie crust 8-10 With filling (no top crust) 25-30 With filling (two crusts) 35-40 Breads, rolls 12-15...

  • Page 15: Troubleshooting

    6 - Troubleshooting Questions Answers How long should I We recommend leaving the air fryer for 30-45 minutes to leave the air fryer to cool before storing. cool before storing it? Ensure that the fries are completely dry before adding oil to them and My homemade fries are putting them in the air fryer.

  • Page 16: Cleaning & Care

    8 - Cleaning & Care • Remove the plug from the mains socket, and allow the appliance to cool down before cleaning. • Do not immerse the lid unit of the appliance in water and make sure no water enters the appliance.

  • Page 17: Wiring Safety

    9 - Wiring Safety for UK Use Only Earth 13Amp (Green/Yellow) Fuse Neautral Live (Blue) (Brown) IMPORTANT As the colours in the mains lead of this Always ensure that the cord grip is fastened appliance may not correspond with the correctly.
  • Page 18 10 - Warranty This product is guaranteed for 12 months from the date of original purchase. If any defect arises due to faulty materials of workmanship, the faulty products must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer.

  • Page 19: Your Receipt

    11 - Your Receipt Affix your store receipt to this page for safe keeping.
  • Page 20 thank you! We hope you enjoy your appliance for many years. As a thank you for purchasing one of our fantastic products, we are offering you an extra 2 years peace of mind. *To receive your extra 2 years guarantee, register your appliance online within 28 days of purchase by visiting: www.towerhousewares.co.uk Should you have a problem with your appliance, or need any spare parts,...
