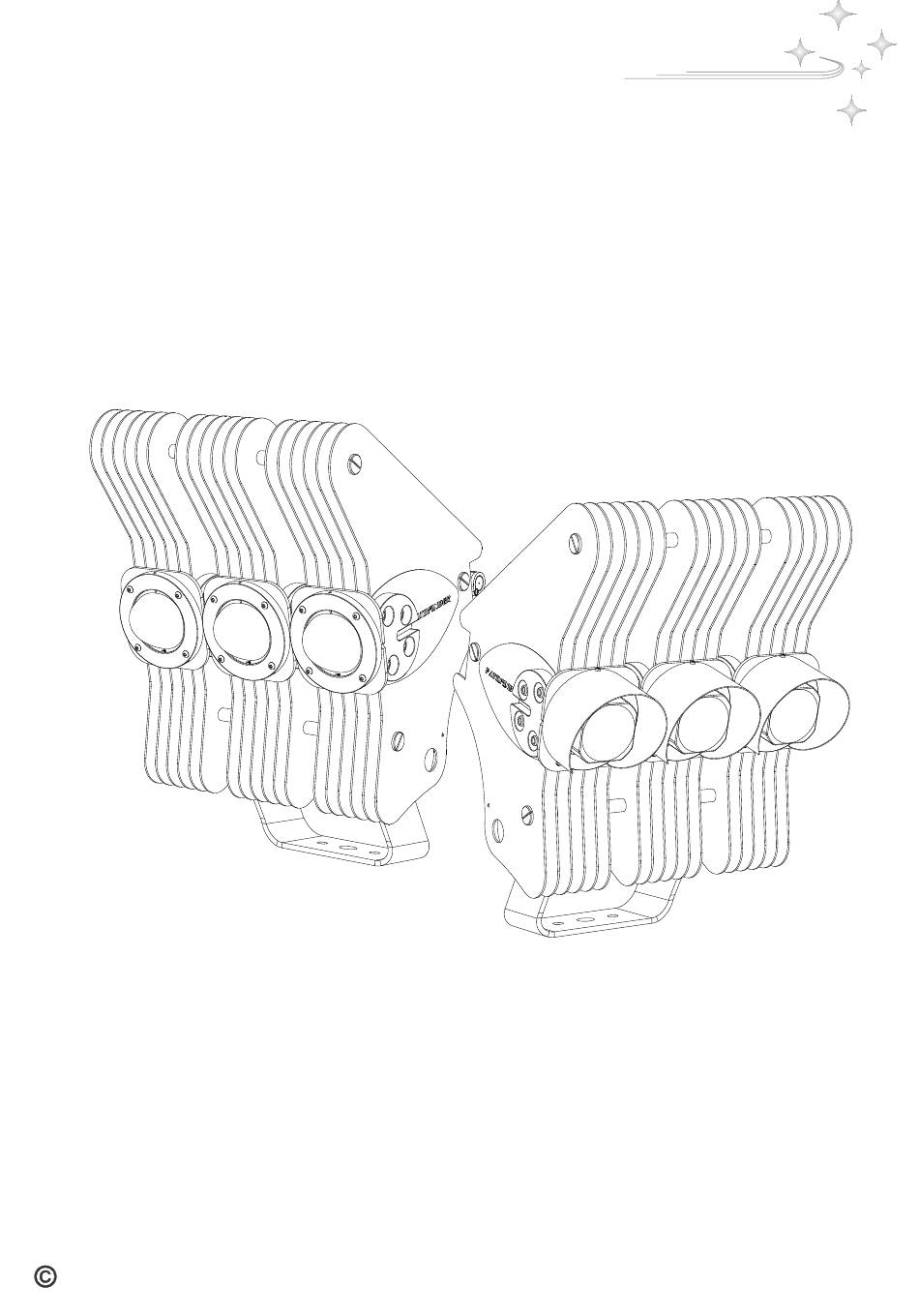

PATHFINDER
LED
Lighting the way
PsT 900
PsT 900
XS
LED Floodlight
Installation Instructions
PLED18-900-8
2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only

Advertisement

loading

Summary of Contents for PATHFINDER PsT 900

  • Page 1 PATHFINDER Lighting the way PsT 900 PsT 900 LED Floodlight Installation Instructions PLED18-900-8 2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only...
  • Page 2 PATHFINDER Lighting the way PLEASE READ THESE INSTALLATION INSTRUCTIONS CAREFULLY BEFORE INSTALLING THIS EQUIPMENT. THE PRODUCT IS DESIGNED FOR INSTALLATION IN ACCORDANCE WITH RELEVANT AUSTRALIAN STANDARDS (AS3000) AND LOCAL REGULATIONS (WHERE APPLICABLE), BY AN AUTHORISED AND LICENCED ELECTRICIAN. COMPLETION OF THE ATTACHED POST INSTALLATION CHECK LIST IS MANDATORY IN ORDER TO ACTIVATE WARRANTY THE PRODUCT MUST BE OPERATED IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS AND...
  • Page 3: Carton Contents

    PATHFINDER Lighting the way PDM2I600-PS900 Driver Module PS001_5Z_DR003B PST900/XS LED Module Carton Contents M6 x 16 ISO 7380 FL SS Screws x 4 PST900/XS LED Module Principal Dimensions 339,00 292,00 178,00 PLED18-900-8 2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only...
  • Page 4 PATHFINDER Lighting the way PST900/XS LED Module Mounting Detail 36,00 72,00 For Mounting Use One M20 Hex Bolt Azimuth lock with One M12 Hex Bolt Min. Grade 8.8 The unit is cooled by convection DO NOT Install with Gravity vector perpendicular to Fin Plane Tilt 0.0...
  • Page 5 PATHFINDER Lighting the way PDM2I60-PS900 Driver Module On-Board Mounting Install PDM2I600-PS900 Driver Module using 4 x M6 Flanged screws M6 x 16 Co-Bolt Bracket to ISO 7380 FL structure with luminaire SS Screws PS001_5Z_DR003B 140,00 Mounting Bracket 36,00 20,00 72,00...
  • Page 6 PATHFINDER Lighting the way PDM2I60-PS900 Driver Module Remote Mounting 44,00 37,00 Typical ‘Unistrut’ Set Up 109,00 242,00 262,00 198,00 CAUTION: The driver module is designed to cool by natural convection and consequently, when mounted inside a cabinet or enclosure, must be mounted vertically. It is also imperative that the enclosure be adequately ventilated.The case...
  • Page 7 LE Input Junction Box Recommended interconnection cable (Remote Mount) 4 Core 2.5 mm Max Length 80 Metres The PST 900/XS Light Engine module is designed Recommended interconnection cable (Driver On Board) solely for use with its associated PDM2I60-PS900 4 Core 1 - 1.5 mm Max Length 5 Metres Driver Module.
  • Page 8: Specifications

    PATHFINDER Dimming Connections Lighting the way Dimming is achieved by placing an active 0-10V voltage source, a PWM signal, or passive component like a resistor or zener across Dim + (PURPLE) and Dim- (GREY) If dimming is not required, Dim + should remain open.
  • Page 9 PATHFINDER Lighting the way Aiming The PST900/XS Light Engine The PST900/XS must be aimed in Azimuth and Elevation precisely in accordance with the appropriate site lighting plan specifications. Azimuth values are set using a suitable protractor to establish the desired relative angle between the pole zero reference and the luminaire reference(Meausured from any longitudinal mounting trunnion face).
  • Page 10 PATHFINDER Lighting the way Visually Aiming The PST900/XS Light Engine In the absence of detailed lighting plan data the luminaire may be crudely aimed using two visual references on the main body, namely the gallery tube and a notched gunsight mark on the forward faceplate.
  • Page 11 Lighting the way WARRANTY EXCLUSIONS All Pathfinder products are inspected, tested, and aged before This limited warranty does not cover the following: shipment and are warranted to be free of defects in material or workmanship for a period of Ten years for Light Engine Heat Sink Ÿ...
  • Page 12 " Pathfinder Series Installation Checklist PATHFINDER Lighting the way LED technology is significantly different to legacy MH, HID, and Sodium technologies and is easily damaged if incorrect installation techniques are applied. The following post Installation checklist must be completed and certified for by the installing technician or contractor. Execution of this form is mandatory in order to activate cover under the current product warranty statement.

This manual is also suitable for:

Pst 900 xs
