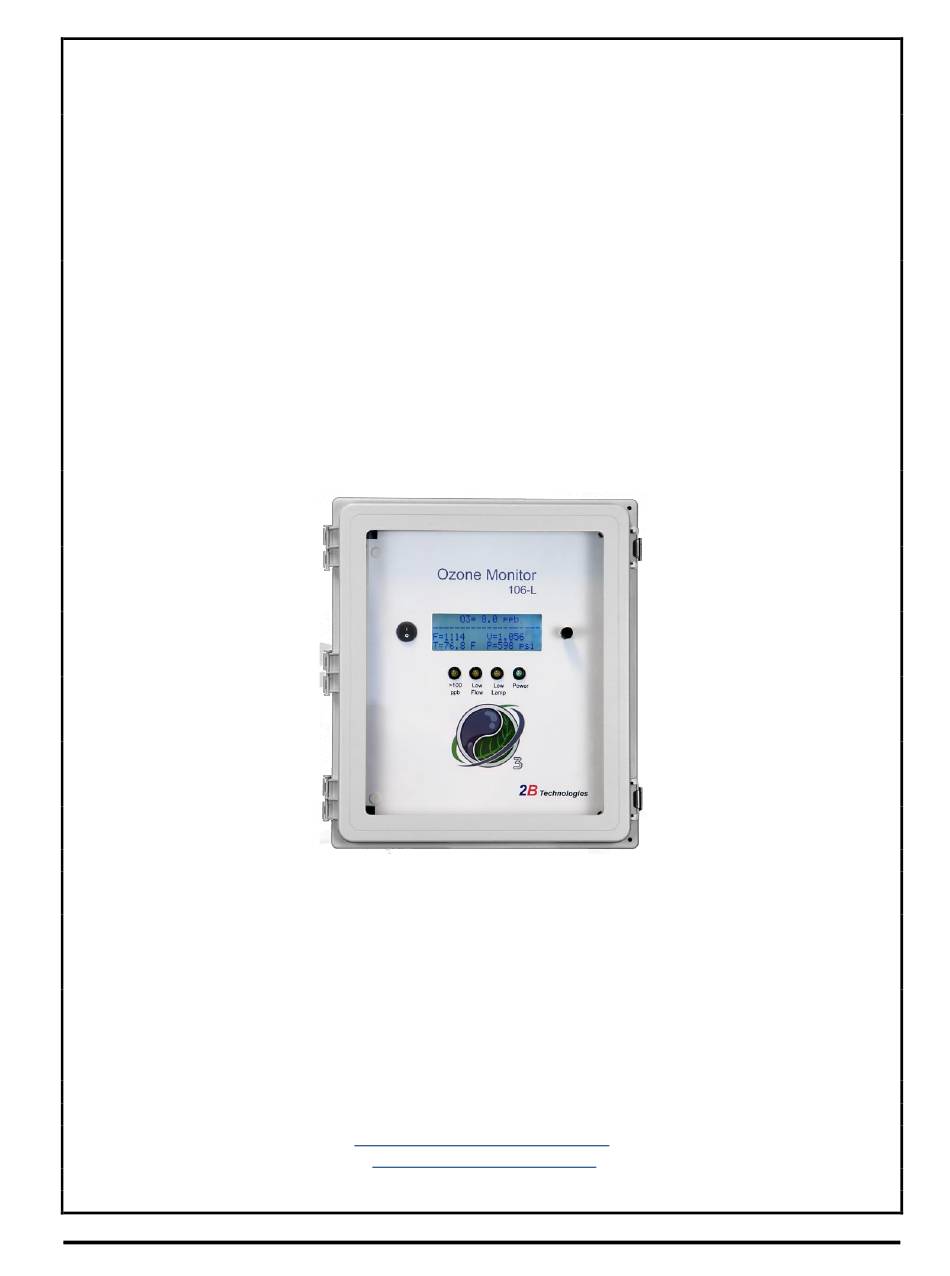

- Page 1 Industrial Enclosures: For Model 106 Ozone Monitors Technologies DRAWINGS AND INSTALLATION MANUAL © Copyright 2020, 2B Technologies All rights reserved. Technical Support: www.twobtech.com/techsupport techsupport@twobtech.com +1(303)273-0559 106 Industrial Installation Manual Rev. A-1...
-
Page 2: Table Of Contents
Contents IDENTIFICATION RECORDS PRINTING HISTORY WARRANTY STATEMENT WARNINGS INTRODUCTION INSTALLATION 2.1. Mounting ............................1 2.2. Power ............................1 2.3. Inlet Manifold ..........................2 2.4. Analog Output, Serial Communication, and Relays ..............5 GAS CONNECTIONS MAINTENANCE 106 Industrial Installation Manual Rev. A-1... -
Page 3: Identification Records
IDENTIFICATION RECORDS Record the following information for future reference: Unit serial number: ______________________________________ Warranty start date: _______________________________________ (date of receipt) 106 Industrial Installation Manual Rev. A-1... -
Page 4: Printing History
PRINTING HISTORY This manual covers the Industrial enclosures offered for 2B Technologies Series 106 Ozone Monitors. New editions of this manual are complete revisions that reflect updates to the instrument itself, as well as clarifications, additions and other modifications of the text. -
Page 5: Warranty Statement
2B Technologies warrants its products against defects in materials and workmanship. 2B Technologies will, at its option, repair or replace products that prove to be defective. The warranty set forth is exclusive and no other warranty, whether written or oral, is expressed or implied. -
Page 6: Warnings
WARNING: ATENCION: If this instrument is used in a manner not specified by 2B Technologies, Si este instrumento se usa de una forma no especificada por 2B USA, the protection provided by the instrument may be impaired. -
Page 7: Introduction
A 1/4” inch compression fitting is provided for the sample inlet and outlet on all the Series 106 Ozone Monitors. Multichannel inlet (3 or 6 channels) are offered as options. This enclosure is not water resistant. -
Page 8: Inlet Manifold
• Multichannel 6-port: Six gas inlets (option, available when ordering) The size of the Industrial Enclosure is the same for all three configurations. Figure 2a in this manual shows each configuration. Figure 1. Industrial Enclosure Dimensions (Front View of standard single-port configuration). 106 Industrial Installation Manual Rev. A-1... - Page 9 Outlet Inlet Outlet Outlet Inlets Inlets Figure 2a. Industrial Enclosure (Bottom View of standard single-, 3-, and 6-port configurations) Figure 2b. Industrial Enclosure Dimensions (Bottom View of standard single-port configuration). 106 Industrial Installation Manual Rev. A-1...
- Page 10 Figure 3. Industrial Enclosure Dimensions (Bottom View with Door Clearance). 106 Industrial Installation Manual Rev. A-1...
-
Page 11: Analog Output, Serial Communication, And Relays
(Figure 4). The connections are made to the 8-position and 12-position terminal blocks according to Figure 4 and Tables 1 and 2 below. Photos of the connections are shown in Figure 5. Figure 4. Connections to the Industrial Enclosure. 106 Industrial Installation Manual Rev. A-1... - Page 12 Relay 3, open on alarm condition Relay 3, ground Black Relay 3, closed on alarm condition White Relay 4, open on alarm condition Relay 4, ground Black Relay 4, closed on alarm condition Brown 106 Industrial Installation Manual Rev. A-1...
- Page 13 Figure 5. Photos of Terminal Connections. 106 Industrial Installation Manual Rev. A-1...
-
Page 14: Gas Connections
Clean the polyester surface with an appropriate cleaner. CAUTION: Do not use abrasive cleaners on the window. For the Model 106 instrument itself, refer to the Ozone Monitor user manual for the recommended maintenance and service procedures.
