Summary of Contents for Rest Lords MASSAGGIO STRAVAGANTE 2

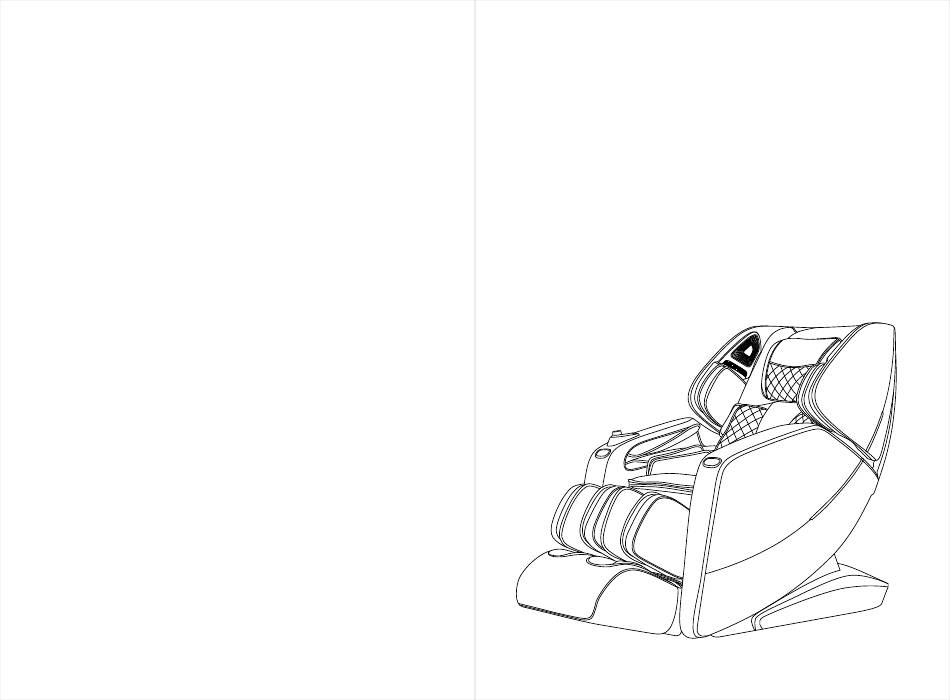

- Page 1 A700-2 MASSAGE CHAIR Operation Instructions SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Thanks for purchasing this product. Please read this manual instruction carefully in order to know how to use this product correctly before operation. Please pay more attention to some important safety warning and keep this manual book properly for future use. Note: Our Company reserves the right to revise the design and description of this product without any further notice. -
Page 3: Safety And Maintenance
Safety and maintenance Safety and maintenance ·Don’t damage the wires or change the circuit of this product. 1.Important Safety Warning. ·Don’t use wet cloth to clean the electric parts such as switch and plug. ·Don’t allow children to touch moveable part of this product. ·Be away from this product under power cut state to avoid injury if the power ·Please use well-grounding power supply suited to this product. -
Page 4: Use Safety Warning
Use safety warning Use safety warning Warning Warning ·When the footrest lifting, people should not apply pressure on the footrest to avoid ·Do not strive to pull out the control cable or power cord during standby or power- the massage chair falling forward to damage the product or cause personal onstate to avoid product damaged or electrocution accidents. -
Page 5: Name And Function Of Components
Name and function of components Function ·This product is designed with a intelligent and silent 3D massage hand that can move up and down, Thrust forward and Shrinking back . ·It can automatically detect the shoulder position and also can be adjust by manual ·Can have a humanized and scientific massage by detecting the human body curve and the position of the massage finger pressure point, and length of the massage hand of Thrust forward and Shrinking back. -
Page 6: Remote Interface Introduce
Remote interface introduce Remote interface introduce Remote controller display part Part of hand controller button Auto-Fast ZERO Speed Width Intensity Adjustment Arms air Shoulder Lower air "Up & Down" to select,"OK"to confirm. Note: Remote Control shows the color, massage function and massage function icon typesetting. -
Page 7: Method Of Usage
Method of usage Method of usage 1.Switch power supply on ·Choose one automatic mode, backrest and calf position will adjust to fixed angle. ·After adjusting the angle, massage chair will automatically detect the shoulder Diagram of the switch position and body (note: fast mode only detect shoulder position, other modes detect Diagram of line Diagram of plug in position of power supply... - Page 8 Method of usage Method of usage 4).Menu button ·After entering the massage modes, the shoulder position can adjusted in shoulder adjustment interface when at the operating status interface. ·“Menu” button to enter the main menu massage function selection interface includes automatic function, manual mode, adjustment, customize, set, equipment information function interface.
- Page 9 Method of usage Method of usage Description Function Manual mode Manual mode Manual mode Manual mode Fast Fast to experience all the massage effect. Massage Area Wise Others massage Comfortable Stop Upper body air pressure Heating Spot The most comfortable massage experience. massage Foot roller Partial...
- Page 10 Method of usage Method of usage 02).Manual mode (manual button-massage position) 03).Manual mode (manual button-air pressure) ·Manual mode(massage position): massage fixed point, partial, full back, upper back ·Manual mode(air pressure): include upper body air pressure and lower body air and lower back. pressure massage function.
- Page 11 Method of usage Method of usage ·Manual mode(extra-back heating) ·Manual mode(extra-negative oxygen ions) ·Press “confirm” button to choose switch on or off heating massage function, start 3 ·Press “confirm” button to choose switch on or off negative oxygen ions massage minutes will have warm.
- Page 12 Method of usage Method of usage 07).Adjustment function (adjust button-directly press “adjust” button to enter Auto-Fast Adjustment adjustment function interface) ·Press “menu” button to enter main menu interface, choose adjustment function icon: Wise include massage mode, massage range, massage intensity and other massage adjustment function.
- Page 13 Method of usage Method of usage 02).Adjustment function (adjust button-massage range) 04).Adjustment function (adjust button-other adjustment) ·Adjustment function(massage range): when at fixed point or partial massage range, ·Adjustment function (other adjustment): timing at present. Press “confirm” button press “up” button not release the massage head will rise or stop; press “down” button one time with 5 minutes added.
- Page 14 Method of usage Method of usage 9).Setting 02).Setting (lock screen) ·Setting (lock screen): include time or never lock, automatic lock without any ·Press “menu” button to enter main menu interface, choose “setting” function icon, operating in 2 seconds. enter setting interface include language, backlight, lock screen and so on. ·Press OK button on the remote control to adjust the screen lock time , The screen ·Press “left”...
- Page 15 Method of usage Method of usage 11).Zero gravity button 13).Angle adjustment button ·Press “zero gravity” button to adjust zero gravity position, choose “zero gravity I” or Description Function “zero gravity II” according to your requirement. Calf rest up button: press to rise, release to stop; when it finished, it will Auto-Fast Auto-Fast automatically detect foot length.
-
Page 16: Handrail Shortcut Button Introduction
Method of usage Method of usage 3.Handrail shortcut button introduction Description Function Power button: press in a second to stop, press in 3 seconds to switch on or off. If the pause time exceeds 20 minutes, all massage function are automatically turned off. 3D intensity button: 3D massage strength, that is, the massage head is extended forward or the whole is retracted. -
Page 17: Voice Control Instruction
Method of usage Method of usage 4.Voice control instruction 5.Turn off power, stop massage ·When the massage chair is turned on or in standby mode, say “Alice Alice” to wake ·During the massage process, press the power switch key to immediately turn off all up the voice control function. -
Page 18: Calf Installation
Method of usage Method of usage 3.The connector from the bottom of the frame is inserted firmly with the armrest 9.Align the mounting holes on the steel frame at the front end of the fixed armrest, connector, and the air pipe connector is also inserted into the position (figure 3). and then tighten armrest and frame steel tube with two M5X14-12.9 screws and a 4.After connecting with the corresponding connecting wires ,gently insert the middle 6X12X1.5 flat pad by supplied 4# hex wrench (figure 8). -
Page 19: Head Cushion And Backrest Pad's Dismounting And Use Manua
Method of usage Method of usage 3. Insert the rotating inner sleeve and the rotating outer sleeve into the left side of 7. After the screw is locked, insert the rear slot of the calf cover into the pin, and the calf and the right side of the lower leg (note: the large step must face inward) then press the front end of the calf cover down and the rotating shaft. -
Page 20: Floor Protection
Method of usage Product specification 10.Floor protection Model: A700 · Put the heavy massage chairs on the wood floor for a may damage the floor, so Configure: 2 please place a carpet or other object to avoid this damage. Name: Massage Chair Rated voltage: 110-120V~ 60Hz 220-240V~ 50Hz/60Hz Rated power input:220W...
