General Information
A
B
C
D
E
F
A.
Cut
fence wire with the hardened cutter. Not for use on
bolts, nails or for holding and prying.
B.
Strip
underground or coated fence wire with this special
slot. Bite, spin, and pull of unwanted plastic coating.
C.
Crimp
16 to 12.5 gauge fence wire. Overlap wire by at
least 1". Imbricate compressions on sleeves.
D.
Crimp
11 to 9 gauge wire, or 15.5 to 12.5 gauge barbed
wire. Overlap wire by at least 1.5". Imbricate compressions
on sleeves. Use this slot for electric/open tap sleeves.
E.
Adjustment screw
setting.
F.
Locking screw
screw, reset after proper tension is set.
rotate to tighten or loosen jaw
loosen before rotating adjustment
Advertisement
Table of Contents

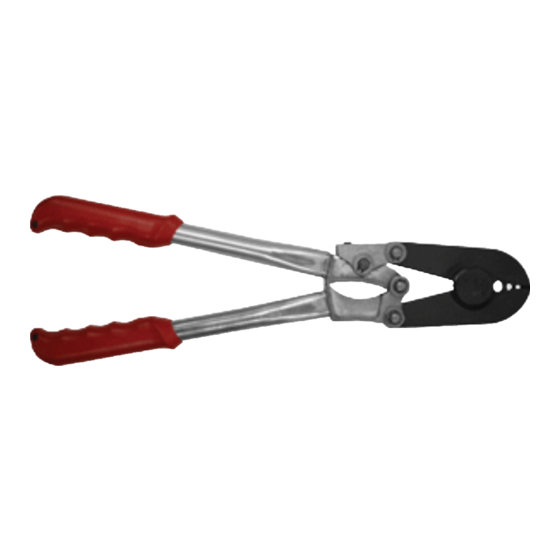

Summary of Contents for Kencove TZ3
- Page 1 General Information fence wire with the hardened cutter. Not for use on bolts, nails or for holding and prying. Strip underground or coated fence wire with this special slot. Bite, spin, and pull of unwanted plastic coating. Crimp 16 to 12.5 gauge fence wire. Overlap wire by at least 1”.
- Page 2 Maintenance Tips Maintain optimum crimp strength: With tool open, hold one handle while placing the other handle on a scale. Monitor the downward pres- sure required to close handles. Properly adjusted tool will require 10-15lbs of pressure. If adjustment is required twist locking screw counter- clockwise to loosen.
