estoli solid F-SD042 Manual

www.estoli.com
Materiales Macizos | Semihuecos
Hollow | Compact Materials
Massivmaterial | Halbhohl
a1
75mm. 60mm.
10mm.
2" 3/8"
3/8"
a2
a3
a4
a5

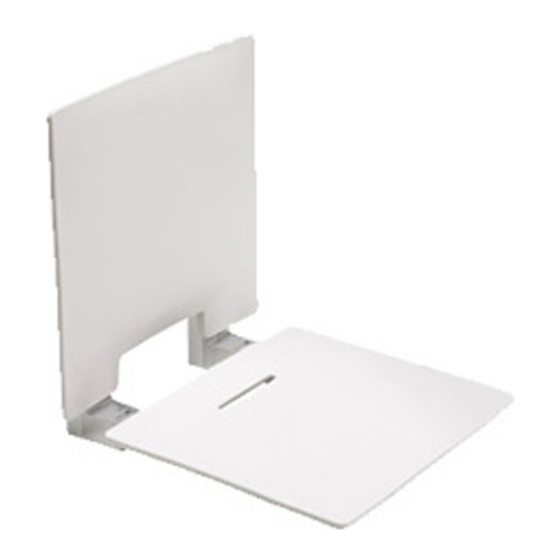

ASIENTO DE DUCHA PLEGABLE CON RESPALDO, A PARED
FOLDING SHOWER SEAT BACKREST (WALL MOUNTED)
DUSCHKLAPPSITZ MIT RÜECKENLEHNE ( WANDMONTIERT )
470mm.
18"2
Muro Madera
Wood Walls
Wand aus Holz
a1
75mm.
3"
Minimum
a2
4mm. 5/32"
a3
a4
a5
a
232mm.
9"1/8
Fijaciones recomendadas
Recomended Fixations
Empfohlene Befestigungen
Piedra natural Hormigón armado
Natural stone Reinforced concrete
Naturstein Stahlbeton
Hormigón Ladrillo hueco
Concrete Hollow brick
Beton Hohle Baustein
Bloque hueco Ladrillo macizo
Hollow block Massive brick
Hohlr Block Massiver Baustein
Bloque ladrillo hueco Madera
Block hollow brick Wood wall studs
Hohle Bausteinblock Holz
F-SD042
180mm.
7"1/16
546mm.
21" 1/2
NO
NEIN
Paneles compuestos MAXIMUM
Compound panels
Zusammengesetzte Panele
NO
NEIN
Paneles Cartón-yeso
Plaster-cardboard panels
Panele aus Karton
Consulta a tu Profesional
Ask your Professional
Fragen Sie Ihren Fachman
CHEMICALS
ALUMINIUM
120 kg
250 lbs
OK !
