Summary of Contents for SitePro RD 200

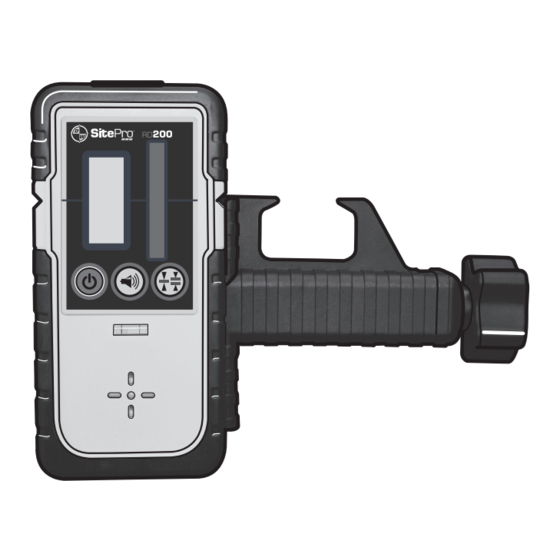

- Page 1 OPERATING MANUAL CONSIGNES DE FONCTIONNEMENT INSTRUCCIONES DE FUNCIONAMIENTO model | modelo LASER RECEIVER RD 200 IMPORTANT: IMPORTANT: IMPORTANTE: Read Before Using Lire avant usage Leer antes de usar...
- Page 2 Repair and contained therein are strictly servicing of this laser product are followed. The use of controls, to be performed only by SitePro or adjustments, or the performance of Authorized Service Centers. procedures other than those MAGNETS specified herein may result in hazardous radiation exposure.
- Page 3 The magnets of the tool generate a The detector may not function field that can impair the function of properly if used out of the ambient cardiac pacemakers. temperature range. Keep the tool away from magnetic Store inside the carry case and data medium and magnetically- place in a dry area not subject to sensitive equipment.
- Page 4 Heavy Duty Magnets Downward” 10. Rod Clamp Bracket 3d. Center Indicator 11. Clamping Screw Knob 3e. Direction Indicator “Move Upward” TECHNICAL DATA RD 200 Receiver Detecting Range: 1350 ft (400m) Accuracy: Fine: ±0.06in/130ft (±1.5mm/40m) Coarse: ±0.1in/130ft (±2.5mm/40m) Detecting sensor range: 1.75-in (44mm)
- Page 5 RD 200 Receiver Dimension: 6.1 x 2.95 x 1.3-in (155 x 75 x 31 mm) Wgt (with battery): 0.55 lb (250g) Please note: Specifications are subject to change without notification. OPERATIONS SETTING UP THE DETECTOR SWITCHING ON/OFF The detector can be used with or Press the Power ON/OFF without rod clamp 10 .
- Page 6 Dave regulations. White’s SitePro instruments. In all correspondence and spare...
- Page 7 LIMITED WARRANTY Dave White’s SitePro (“Seller”) warrants to the original purchaser only, that all laser receivers will be free from defects in material or workmanship for a period of one (1) year from date of purchase. SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty...
- Page 8 ©2017 Dave White’s SitePro LLC Otterbein, IN USA www.sitepro.us.com UM27-RD200 07/2017...
