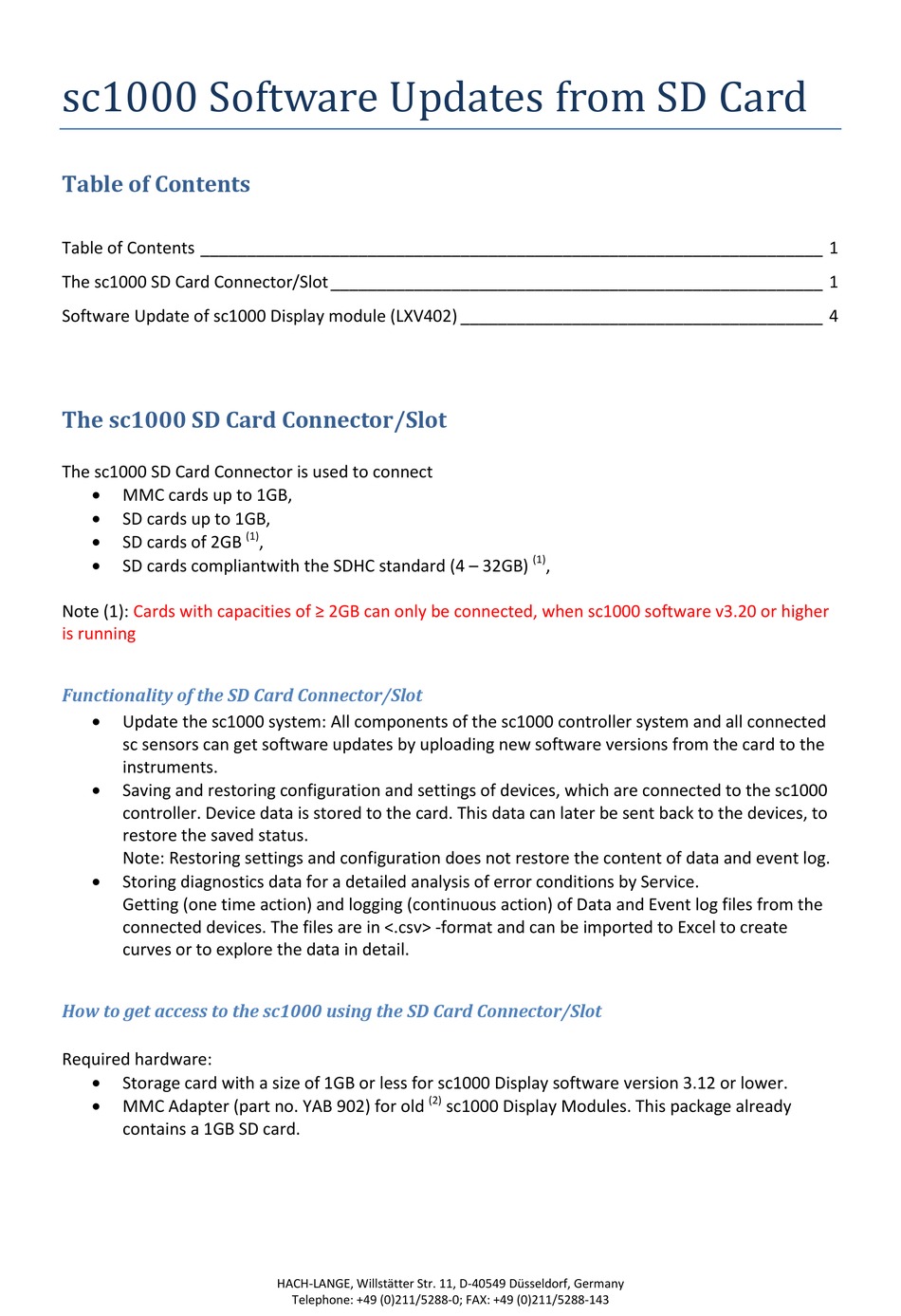

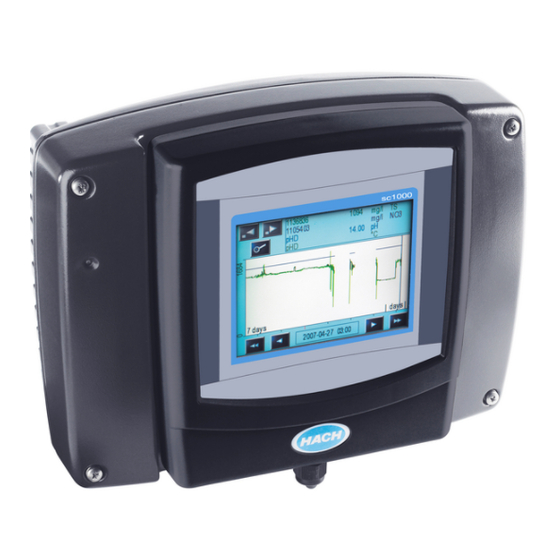

sc1000 Software Updates from SD Card
Table of Contents
Table of Contents ___________________________________________________________________ 1
The sc1000 SD Card Connector/Slot _____________________________________________________ 1
Software Update Of Sc1000 Display Module (Lxv402) _______________________________________ 4
The sc1000 SD Card Connector/Slot
The sc1000 SD Card Connector is used to connect
MMC cards up to 1GB,
SD cards up to 1GB,
SD cards of 2GB
SD cards compliantwith the SDHC standard (4 – 32GB)
Note (1):
Cards with capacities of ≥ 2GB can only be connected, when sc1000 software v3.20 or higher
is running
Functionality of the SD Card Connector/Slot
Update the sc1000 system: All components of the sc1000 controller system and all connected
sc sensors can get software updates by uploading new software versions from the card to the
instruments.
Saving and restoring configuration and settings of devices, which are connected to the sc1000
controller. Device data is stored to the card. This data can later be sent back to the devices, to
restore the saved status.
Note: Restoring settings and configuration does not restore the content of data and event log.
Storing diagnostics data for a detailed analysis of error conditions by Service.
Getting (one time action) and logging (continuous action) of Data and Event log files from the
connected devices. The files are in <.csv> -format and can be imported to Excel to create
curves or to explore the data in detail.
How to get access to the sc1000 using the SD Card Connector/Slot
Required hardware:
Storage card with a size of 1GB or less for sc1000 Display software version 3.12 or lower.
MMC Adapter (part no. YAB 902) for old
contains a 1GB SD card.
(1)
,
HACH-LANGE, Willstätter Str. 11, D-40549 Düsseldorf, Germany
Telephone: +49 (0)211/5288-0; FAX: +49 (0)211/5288-143
(1)
,
(2)
sc1000 Display Modules. This package already
Advertisement
Table of Contents
Summary of Contents for HACH LANGE sc1000
- Page 1 How to get access to the sc1000 using the SD Card Connector/Slot Required hardware: Storage card with a size of 1GB or less for sc1000 Display software version 3.12 or lower. MMC Adapter (part no. YAB 902) for old sc1000 Display Modules.
- Page 2 Connecting storage cards to old sc1000 controllers. Connect the Storage Card to the sc1000 Display, contact stripes of the card to the bottom side. When an MMC adapter is used (figure2), first insert the card to the adapter, and then insert the adapter into the card slot of the Display Module.
- Page 3 Entry point for the Storage Card Menu When no Storage Card is connected, an MMC adapter is missing, or when the card size does not match the running software version of the sc1000 controller, the screen SC1000 SETUP screen will not display the “STORAGE CARD” option.
- Page 4 Connector/Slot” have been completed Follow the menu tree to access contents of the SD card MENU SC1000 SETUP STORAGE CARD Select UPDATE ALL (a screen will appear showing a list of Software Update Files, which will be...
- Page 5 When the Software Update files are older than the running software, a notification is shown: figure7: sc1000 Software Update menu without recent files In menu (figure6: sc1000 Software Update menu) press the <OK> button to get to the final confirmation, which starts the update process (figure8): figure8: Confirmation menu before Updates start Note: Confirming stops the normal operation of the sc1000 controller.
- Page 6 Do not disconnect the sc1000 in this state, because the unit can be permanently damaged! Note: Starting from sc1000 Software v3.20, size indicators show the progress during updates. This gives users the possibility, to estimate the remaining update time. ...
- Page 7 End of Software Update The Software Update is finished. Repower the sc1000 display module. Note: Disconnecting the sc1000 controller during Software Updates will damage the unit! HACH-LANGE, Willstätter Str. 11, D-40549 Düsseldorf, Germany Telephone: +49 (0)211/5288-0; FAX: +49 (0)211/5288-143...
