Summary of Contents for Freedom Motors Chevrolet Traverse

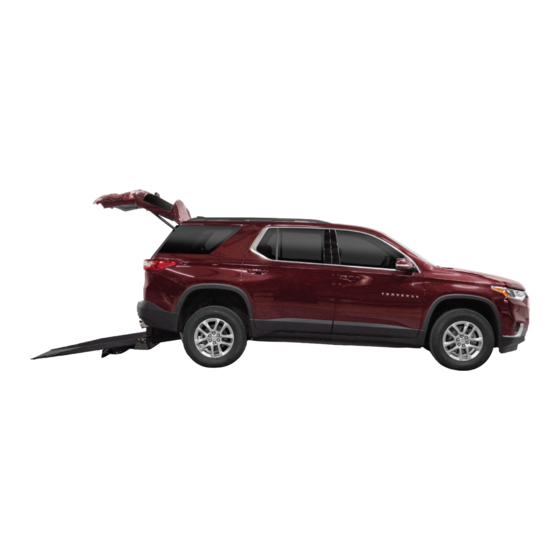

- Page 1 CHEVROLET TRAVERSE Wheelchair Accessible SUV Owners Manual...
- Page 2 BENCH SECUREMENT...
- Page 3 Freedom Motors reserves the right to make changes in design and specifications, and/or make additions to or improvements to its products without imposing any obligation upon itself to install them on products previously manufactured.
-
Page 4: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..................1 SAFETY PRECAUTIONS ................. 2 REMOTE KEYLESS ENTRY TRANSMITTER ........3 CONTROL SWITCHES ................4 OPERATION INSTRUCTIONS ..............5-6 SEATING SECUREMENT ................ 7 MANUAL OPERATION ................8 DOCKING SYSTEM OPERATIONS ............9-10 SCHEDULED MAINTENANCE .............. 11 MAINTENANCE LOG ................ -
Page 5: Introduction
INTRODUCTION CONGRATULATIONS ON PURCHASING YOUR WHEELCHAIR ACCESSIBLE CHEVROLET TRAVERSE FROM FREEDOM MOTORS Please take the time to read this publication carefully. Following the instructions and recommendations in the manual will help assure safe and enjoyable operation of your vehicle. When it comes to service, remember that your authorized dealer knows your vehicle best, has factory-trained technicians, and cares about your satisfaction. -
Page 6: Safety Precautions
Traverse, please contact Freedom Motors directly at 800-625-6335. • Read your owners manual before operating the vehicle. In addition to reading the owners manual, please make sure your Freedom Motors salesperson explains and demonstrates the vehicle’s features before operating. • Before operating the ramp, make sure the transmission is in park. -
Page 7: Remote Keyless Entry Transmitter
REMOTE KEYLESS ENTRY REMOTE KEYLESS EN Keyless Entry Transmitter Keyless Entry Transmitter Open Function Open Function* Pressing and holding button 1 will open the Pressing and holding button 1 will deploy the rear door and deploy the ramp. Releasing the ramp. -
Page 8: Control Switches
CONTROL SWITCHES CONTROL SWITCHES Ramp Deploy / Retract Switch Ramp Deploy / Retract Switch The drivers ramp The drivers ramp deploy / retract switch WARNING WARNING deploy / retract switch is located on the is located on the dashboard on the left DO NOT retract the ramp if a person or object dashboard on the left side of the steering... -
Page 9: Operation Instructions
OPERATION INSTRUCTIONS WARNING Before operating the power door and power ramp, make sure the rear area of the vehicle is clear and unobstructed. Allow approximately 8 feet for the ramp to deploy beyond the rear of the vehicle plus an additional 4 feet for the wheelchair occupant to maneuver. - Page 10 OPERATION INSTRUCTIONS The wiring circuits for the automatic ramp conversion are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of damage by electrical problems. Checking and Replacing The Fuse If the automatic ramp deployment is not working, check the placement and condition of the fuse.
-
Page 11: Seating Securement
SEATING SECUREMENT Instructions for Use: 1. Place wheelchair in the vehicle facing forward and in a suitable position. 2. Preselect a position on the wheelchair to attach the hook and a position on the floor to attach the floor latch end of the strap. 3. -
Page 12: Manual Operation
MANUAL OPERATION Operate Door Manually With the ramp in the fully stowed position, the back door may be opened or closed manually at any time. If automatic conversion ceases to operate you can manually deploy / retract the ramp. 1. Place the vehicle transmission in park. 2. -
Page 13: Docking System Operations
DOCKING SYSTEM OPERATION Entering the Docking Base To enter the docking system requires that you guide your wheelchair over the top of the docking base until the docking pin mounted to your wheelchair is fully engaged. TO ENSURE THAT THE WHEELCHAIR IS FULLY ENGAGED, YOU SHOULD ATTEMPT TO EXIT THE SYSTEM WITHOUT PRESSING THE RELEASE SWITCH AND WITH THE VEHICLE IGNITION OFF . - Page 14 DOCKING SYSTEM OPERATION IF THE VEHICLE LOSES ELECTRICAL POWER, THE EMERGENCY RELEASE LEVER SHOULD BE PUSHED TO THE LEFT TO RELEASE THE WHEELCHAIR. Docking System Controls The system control panel must be mounted in an area that is readily visible to the driver of the vehicle. The control panel provides a release switch as well as displaying the dock base status through an array of colored lights and an audible alarm.
-
Page 15: Scheduled Maintenance
SCHEDULED MAINTENANCE Scheduled Maintenance Plan INSPECTION ITEM INSPECTION CRITERIA INSPECTION FREQUENCY Bushing on all hinge points Clean and check for any wear, out of Monthly by operator and round bushing ID, rust, unusual noise biannually by local authorized Power Hatch System or motion. -
Page 16: Maintenance Log
MAINTENANCE LOG Record maintenance information in the table below. Date: Date: Description: Description: ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________... - Page 17 MAINTENANCE LOG Record maintenance information in the table below. Date: Date: Description: Description: ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________...
-
Page 18: Warranty
WARRANTY FREEDOM MOTORS USA, INCORPORATED CONVERSION COMPONENT LIMITED WARRANTY Freedom Motors USA, Inc. (“FMI”) provides a comprehensive Conversion Component Limited Warranty (“Warranty”). This Warranty is designed to work with any applicable Original Equipment Manufacturer (“OEM”) factory warranty. WHAT IS COVERED? This Warranty gives you specific legal rights. - Page 19 WARRANTY WHAT ARE THE COVERAGE PERIODS? Newly manufactured and installed Kneelvan wheelchair van conversions and newly installed and manufactured FMI specialty conversions on chassis which are five (5) or less model years old and less than 50,000 miles are warranted for 36 months or 36,000 miles, whichever occurs first. Newly manufactured and installed Kneelvan wheel- chair van conversions and newly installed and manufactured FMI specialty conversions on chassis which are 6 or more model years old and more than 50,000 miles are warranted for 12 months or 12,000 miles, whichever occurs first.
- Page 20 WARRANTY Damage Caused by Use and/or the Environment: The Warranty does not cover surface rust, deterioration and damage to paint, trim, upholstery, and other appearance items of the conversion components that result from use and/or exposure to the elements. You, as the owner, are responsible for these items. Some examples are: •...
- Page 21 BENCH SECUREMENT WARRANTY FMI is not responsible for any time or income that you lose, any inconvenience you might be caused, the loss of your transportation or use of your vehicle, the cost of rental vehicles, fuel, telephone, travel, meals, or lodging, the loss of personal or commercial property, the loss of revenue, or for any other incidental or consequential damages you may have.
- Page 22 740 Watkins Rd. | Battle Creek, MI 49015 | 800-625-6335 | Fax: 269-660-5825 | FreedomMotors.com...
