FOLKSAFE FS-PD2001-GM Quick Start Manual

Table of Contents

Quick Links

Download this manual

FS-PD2001-GM

FS-PD2001-GM Specification

Overviews

FS-PD2001-GM is a kind of PD Splitter (also called POE Splitter), supports IEEE802.3af/at standard; supplies power and transmits data to devices which do not support POE power

Well-protects

supply (such as IP camera); The product uses the transformer for isolation design, which gives you more stable, more secure and

the powered products ,Bandwidth is

10/100/1000M. Mid-Span (No.4&5and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections are well supported. The product has two

switchable Output voltages: one is 12V, maximum current is 2.0A, the other is 24V, and maximum current is 1.0A. Some HD digital cameras do not have POE module which leads to

the inconvenience and difficulty on installation. However, this device can solve the problem of wiring. Connect POE switch with PD Splitter, people can realize the power supply and

data transmission of IP camera directly and timely.

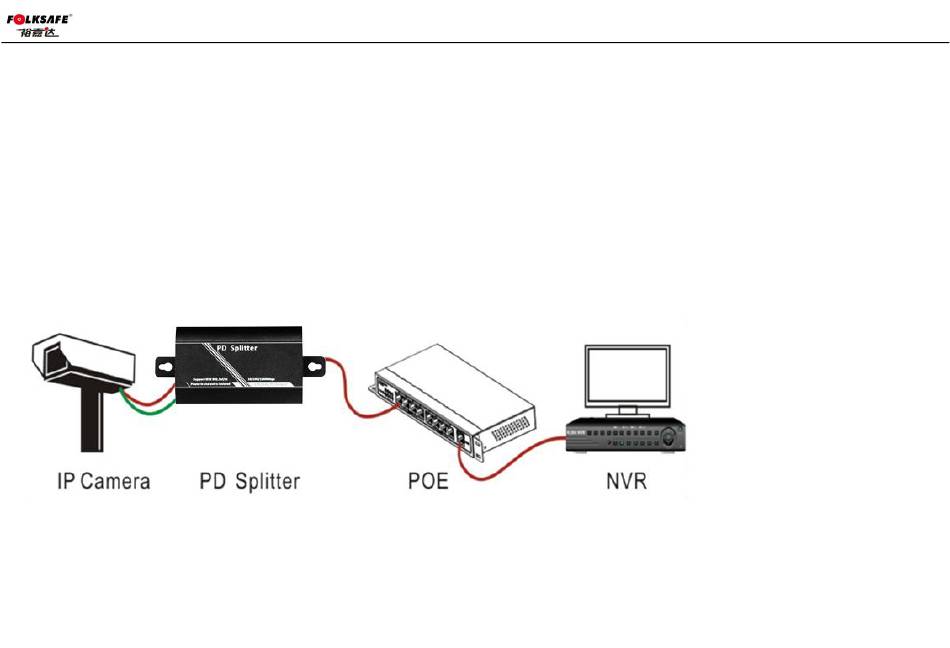

Typical applications please refer to following picture

Features

1、Bandwidth: 10/100/1000M

2、Input Voltage: 37-57V

3、Input port: Supports (No.4&5 and 7&8 cables supply power) and End-Span (No.1&2 and 3&6 cables supply power) connections.

4、Two switchable output Voltages: 12V/24V

Table of Contents

Need help?

Do you have a question about the FS-PD2001-GM and is the answer not in the manual?

Questions and answers

Summary of Contents for FOLKSAFE FS-PD2001-GM

Page 1 FS-PD2001-GM Specification Overviews FS-PD2001-GM is a kind of PD Splitter (also called POE Splitter), supports IEEE802.3af/at standard; supplies power and transmits data to devices which do not support POE power Well-protects supply (such as IP camera); The product uses the transformer for isolation design, which gives you more stable, more secure and the powered products ,Bandwidth is 10/100/1000M.
Page 2 FS-PD2001-GM 5、Max output current: 2.0A (for output Voltage is 12V),1.0A(for output Voltage is 24V) 6、Standard: Supports IEEE802.3af/at 7、Isolation protection: Using the transformer for isolation design, more stable, more secure Overheating protection, Short circuit protection, overvoltage and overload protection 8、Protection function:...
Page 3 FS-PD2001-GM Bottom view Installation steps 1. Before installation, please check the following equipments and accessories, if there are any missing, please contact with your supplier. 1). 1pc FS-PD2001-GMdevice 2). 1pc user manual 3).1pc power line 2. Please install as below steps 1) Before installation, please turn off the power of all signal sources and the monitor in case of the damage to transmissiondevice.
Page 4 FS-PD2001-GM Port and Performance Electrical interface parameters One input RJ45 port One Output RJ45 Plug One Power supply output DC Plug Cable Type Cat5 UTP and above Protocol Standards IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3af/at Power over Ethernet...
Page 5 FS-PD2001-GM Making methods of RJ45 connector Required tools: wire crimpers, network cable tester. 1) The wire sequence of RJ45l connector must complies with international standard of EIA/TIA 568A or EIA/TIA 568B. 2) Strip about 2cm’s of insulating jacket to let 4 pairs UTP can be seen.
Page 6 1) All man-made damage, including operation in abnormal working environment or not in accordance with the instructions and storage failures; 2) Users disassemble or repair voluntarily, or do the maintenance at other service points undesignated by Folksafe ; 3) Malfunction or damage by irresistible accidents and natural disasters, such as fire, lightning and earthquakes, etc.
