SonicWall® TZ Series M.2 Module
Installation Guide
September 2020
This document describes how to replace or install a SonicWall M.2 module in your TZ Series appliance.

Package Contents

:
• M.2 module
• Screw – inner screw for module attachment
• Tamper-evident sticker for FIPS compliance

WARNING:

Disconnect the TZ from power before beginning the M.2 module installation.
To replace or install the M.2 module in your TZ:

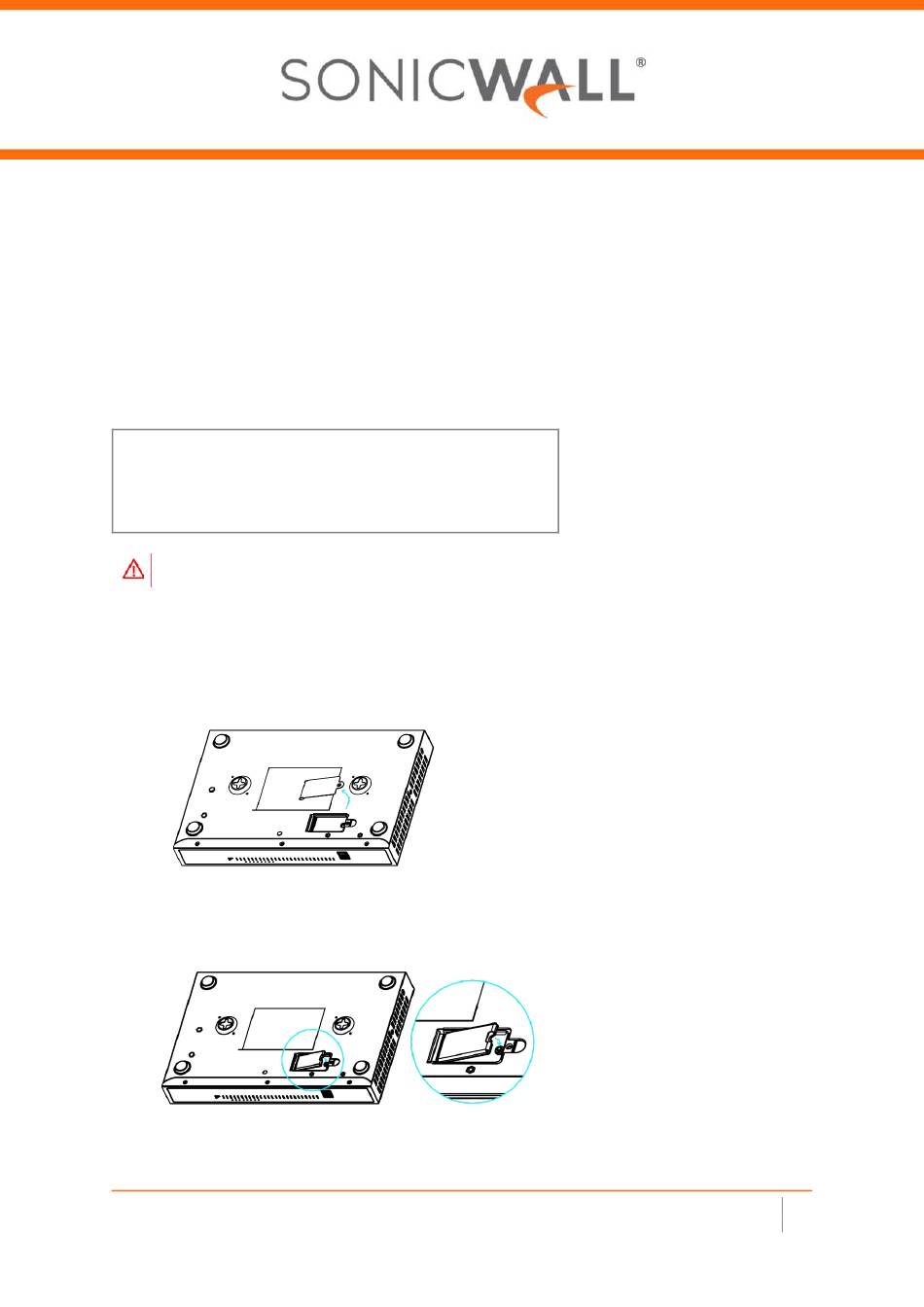

Turn the TZ upside-down to access the module compartment on the bottom.
1
If replacing an existing M.2 module, remove any tamper-evident sticker from the module cover plate.
2
Use a Phillips PH1 screwdriver to remove the module cover plate.
3
If replacing a module, use a PH0 screwdriver to remove the inner screw, then remove the module.
4
With the new module label-side up, insert the module contact pins into the module slot and press the
5
module down, aligning the notch with the inner screw location.
