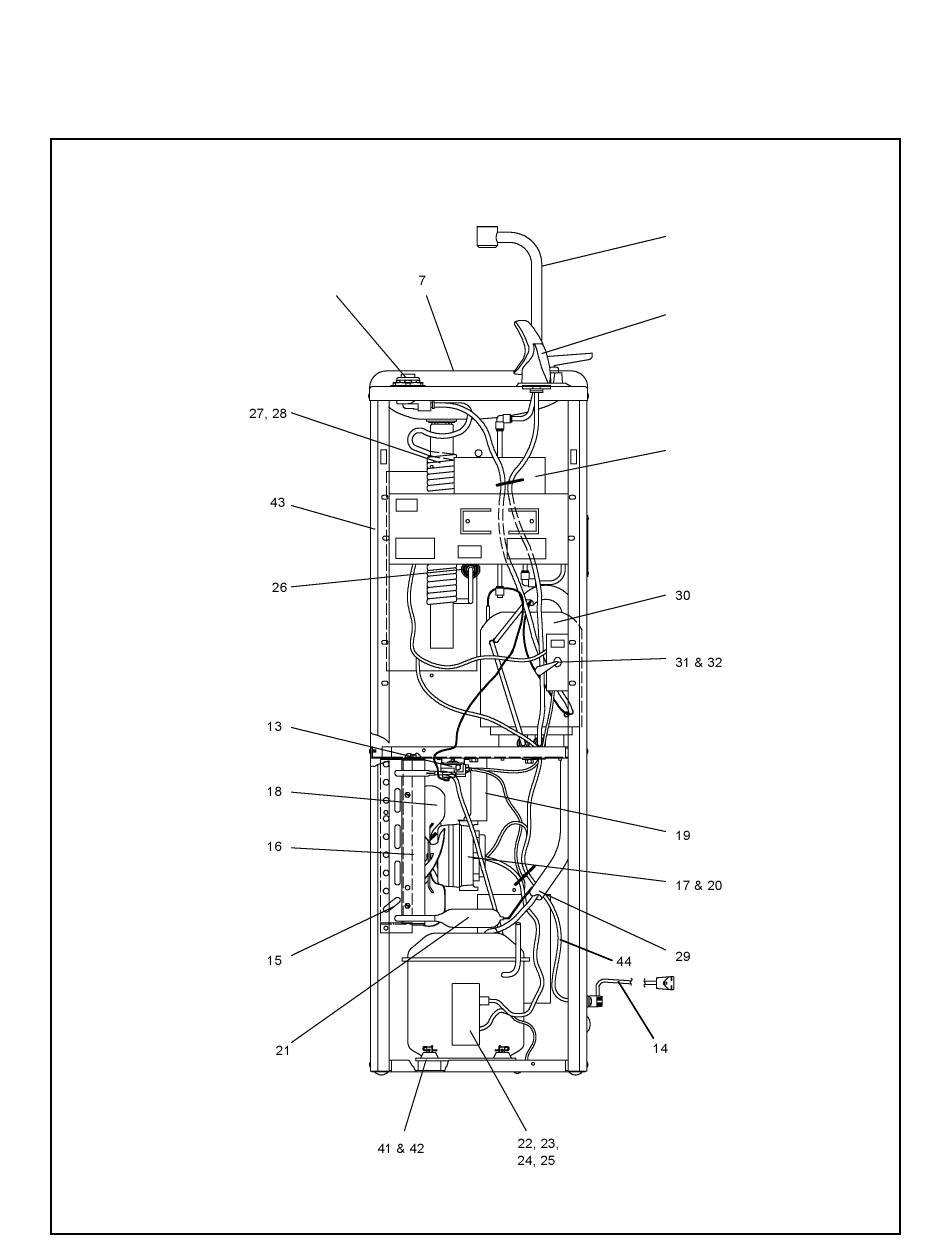

- Page 1 FHD7005*2EJO, FHD7005*3EJO ® Space-ette With FLEXI-GUARD ™ Installation/Care/Use Manual USES HFC-134A REFRIGERANT 34 (SEE FIG. 5) SEE FIG. 3 SEE FIG. 4 33 (SEE PAGE 3) FIG. 1 PAGE 1 97596C (Rev. A - 3/01)
- Page 2 FHD7005*2EJO, FHD7005*3EJO FINISHED FLOOR PISO ACABADO PLANCHER FINI FIG. 2 LEGEND/LEYENDA/LÉGENDE A = RECOMMENDED WATER SUPPLY LOCATION 3/8 O.D. UNPLATED COPPER TUBE CONNECT STUB 1-1/2" (38mm) OUT FROM WALL SHUT OFF BY OTHERS SE RECOMIENDA UBICAR EL TUBO DE CONEXIÓN AL TUBO DE COBRE SIN CHAPAR DE 3/8" DE DIAM. EXT. A 1-1/2" (38mm) FUERA DE LA LLAVA DE PASO EN LA PARED COLOCADA POR TERCEROS.
- Page 3 FHD7005*2EJO, FHD7005*3EJO SERVICING THE HOT CONTROL AND FUSE ASSEMBLY VERY TIGHTLY TIGHTEN HOT TANK PARTS LIST ITEM NO. PART. NO. DESCRIPTION BASIN BASIN DO NOT OVER TIGHTEN. FIG. 3 FIG. 4 WIRING DIAGRAM FIG. 5 PAGE 3 97596C (Rev. A - 3/01)
- Page 4 FHD7005*2EJO, FHD7005*3EJO PRINTED IN U.S.A. ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 97596C (Rev. A - 3/01) PAGE 4...
