POINTMOBILE PM5 User Manual

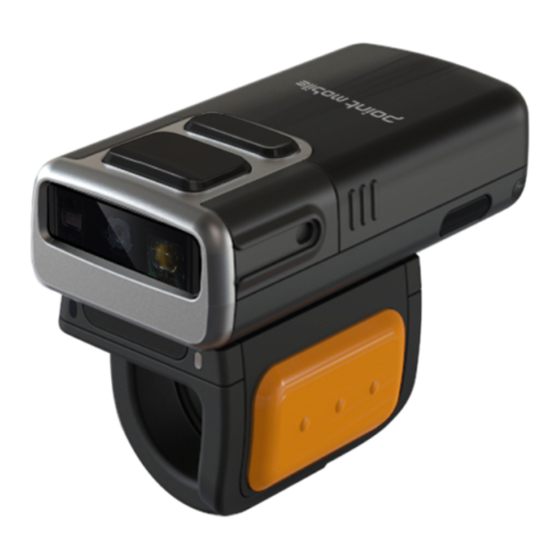

Bluetooth barcode reader

PM5 (Bluetooth Barcode reader) User Manual

PM5 is Bluetooth barcode reader which has 2D Scanner and single ring trigger.

User should pair PM5 with device what has a Bluetooth. Then they can check a data,

adjust settings and so on.

1. Major Parts.

1) PM5 terminal

① Scan Key

② Battery locker

③ LED light

PM5 User Manual

Table of Contents

Do you have a question about the PM5 and is the answer not in the manual?

Page 1 PM5 (Bluetooth Barcode reader) User Manual PM5 is Bluetooth barcode reader which has 2D Scanner and single ring trigger. User should pair PM5 with device what has a Bluetooth. Then they can check a data, adjust settings and so on.
Page 2 ① Scan key ② Pin for locking PM5 ③ Finger Ring Strap PM5 can connect with single trigger. Single trigger has a finger strap so user can put PM5 on their finger. © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 4 ② Push Scan key. Then you can check red LED light from bottom side and beep sound. 2) Turn Off Remove the battery in PM5. 5. Pairing User can use app “RingControl” in their phone for pairing and setting of PM5. RingControl © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 6 PM5 User Manual From the next time, the list Pop-up shows when your device in it shows up. pairing is a success. User can choose the device from it for pairing. © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 7 PM5 User Manual 6. Scan & Setting Learning the basics After pairing, user can use User can adjust the setting scan function. such as beep volume or FW update from setting button © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
Page 8 This device complies with FCC/IC RF exposure requirements. Cet appareil est conforme aux exigences d'exposition aux RF FCC/IC.  FCC ID : V2X-PM5  IC : 10664A-PM5 © 2006 – 2020 POINTMOBILE Co., Ltd. All rights reserved...
