Additional operating manual
Of type SIMC with limit switching unit
Operation and servicing instructions
These operating manual is only valid in connection with the operating manual for i-matic.
Keep this manual for future reference.
Part. no: 384771
Revision:
1.0
Date:
April 26, 2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the 384771 and is the answer not in the manual?

Questions and answers

Summary of Contents for Drehmo 384771

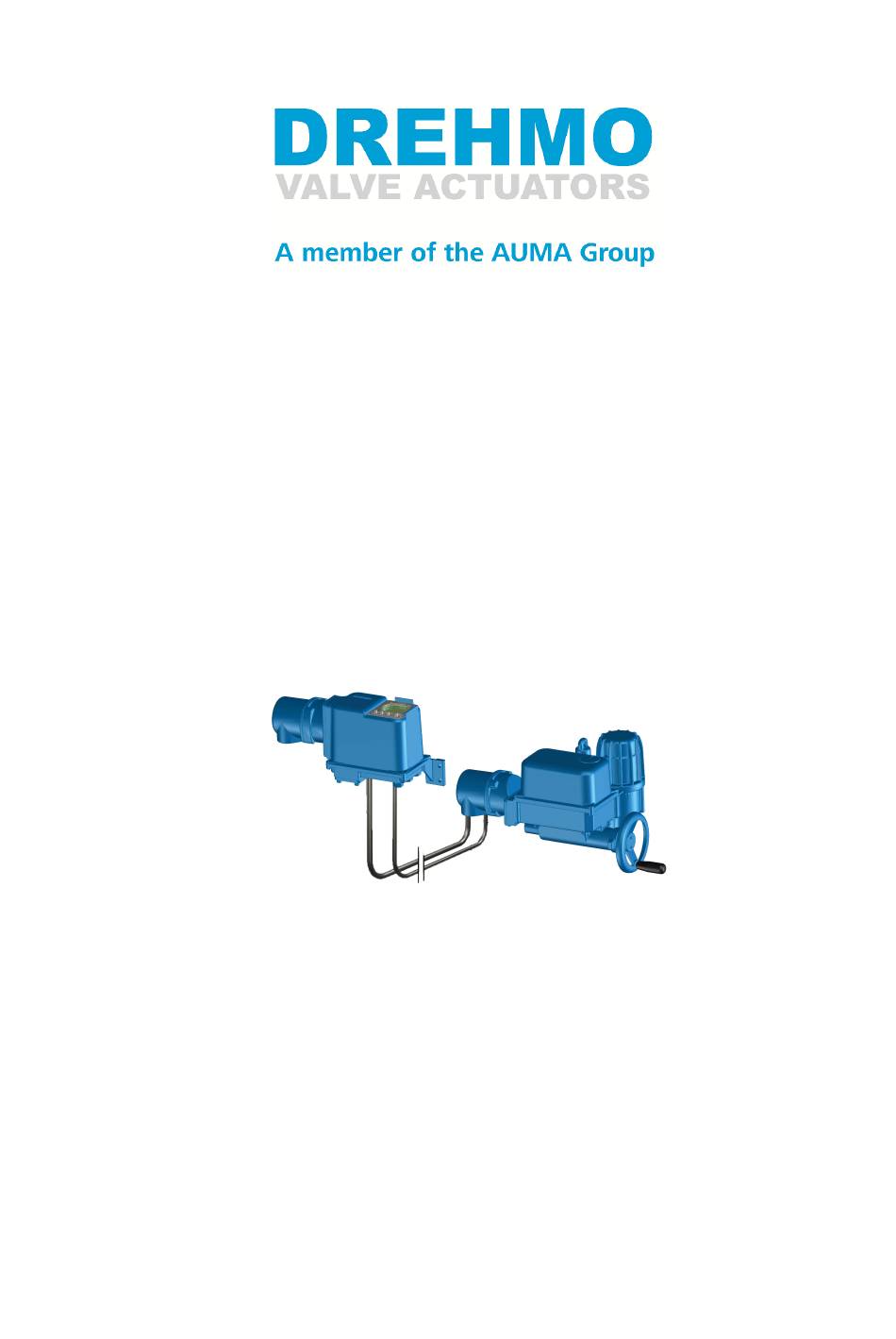

  • Page 1 Additional operating manual Of type SIMC with limit switching unit Operation and servicing instructions Part. no: 384771 Revision: Date: April 26, 2017 Keep this manual for future reference. These operating manual is only valid in connection with the operating manual for i-matic.

  • Page 2: Table Of Contents

    Table of Contents 1 Commissioning 1.1 Setting the torque values ......1.2 Setting the limit positions ......1.3 Setting the reduction gearing for multi-turn actuators .

  • Page 3: Commissioning

    1. COMMISSIONING 1 Commissioning The following chapter describes the commissioning step for DREHMO i matic actuators (for high temperatures) . NOTICE All explanations below relating to commissioning apply to actuators with clockwise closing valves. Clockwise output drive rotation corresponds to direction...

  • Page 4: Setting The Torque Values

    1. COMMISSIONING 1.1 Setting the torque values The torques are set by manufacturer as instructed according to the order. The torques are only indicated on the name plate if this is specifically requested. If no torques are specified on the order, the smallest possible torque is set by the manufacturer. The torque can be infinitely varied within the range given on the name plate by means of the torque scales affixed to the unit Use the setting screws for torque setting if torque signals are to be used (refer to fig-...

  • Page 5: Setting The Limit Positions

    1. COMMISSIONING DANGER Exceeding the maximum permitted torque A setting above the maximum permitted torque is not permit- ted. DANGER Regard the permitted torque range for additional gears, if used For actuators that are delivered with an additional gear or thrust unit by the manufacturer, the permitted torque range is written outside the housing cover.

  • Page 6: Setting The Reduction Gearing For Multi-Turn Actuators

    1. COMMISSIONING lines up with switch and it operates, stop turning. If the cam is turned too far by mistake, repeat the entire setting process from the beginning. NOTICE The signal of the potentiometer is converted into a 4 20 mA Adjust the reduction gearing to the stroke to make it run cor- rectly 1.3 Setting the reduction gearing for multi-turn...
  • Page 7 1. COMMISSIONING 1. Shaft of the mechanical position in- dicator 2. Sliding wheel 3. Scale with possible setting ranges for the travel 4. Fixing screw for the sliding wheel Figure 1.3: Reduction gearing There is a gear wheel at the bottom of the base plate. The figure 1.4 shows the version for section III.
  • Page 8 1. COMMISSIONING Transmission ratio of limit Turns per travel (min. and Position of sliding wheel switch wheels max.) 1:3 (SectionIII) 1:3 (SectionIII) 1:3 (SectionIII) 1:3 (SectionIII) 1.38 2.49 1:3 (SectionIII) 1:3 (SectionIII) 1:3 (SectionIII) 1:3 (SectionIII) 15.1 27.2 1:3 (SectionIII) 27.3 49.6 1:3 (SectionIII)

  • Page 9: Setting The Reduction Gearing For Part-Turn Actuators

    1. COMMISSIONING Setting: 1. If the required rev/stroke ratio of the actuator is communicated to the manufacturer upon ordering, the actuator is correctly set in the factory. 2. Determine actuator revolutions per stroke (e.g. actuator speed per minute x acting time in minutes).
  • Page 10 1. COMMISSIONING Additional gearing Without Size DPIM30...DPIM119 DPIM75... DPIM600... DPIM1200... DPIM450 DPIM900 DPIM1800 Swing angle Reduction ratio none none 25,3 Number of teeth LS III/15:45 III/15:45 I/30:30 II/45:15 II/45:15 tr/stroke min. 0 25 1 375 2 75 6 325 Sliding wheel position Turning angle Cam shaft 175 4...
  • Page 11 Notes Additional operating manual...
  • Page 12 DREHMO GmbH Zum Eichstruck 10 57482 Wenden/Germany Phone: +49 2762 9850-0 Phone service: +49 2762 9850-204 Internet: www.drehmo.com E-mail: drehmo@drehmo.com...
