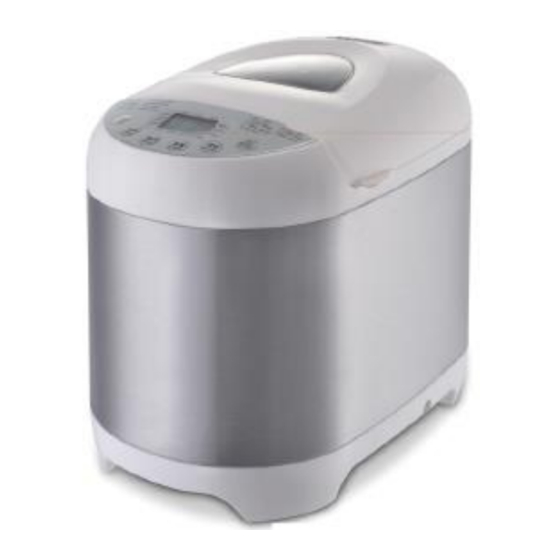

Bread Maker
H644
v01: 15/03/21
Please read and retain these instructions for future reference
ASSEMBLY INSTRUCTIONS / INSTRUCTIONS FOR USE:
Unpack the components carefully. Please check all parts have been removed from the packaging.
IMPORTANT SAFEGUARDS
Before using the electrical appliance, the following basic precautions should always be followed:
1. Read all instructions.
2. Before using check that the voltage of wall socket corresponds to the one shown on the rating plate.
3. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is
dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service
agent for examination, repair or electrical or mechanical adjustment.
4. Do not touch hot surfaces. Use handles or knobs. Use of oven gloves is recommended.
5. To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.
6. Unplug from socket when not in use, before putting on or taking off parts, and before cleaning.
7. Do not let cord hang over edge of table or hot surface.
8. The use of accessories not recommended by the appliance manufacturer may cause injuries.
Dimensions
(H) 35.5cm x(W) 24cm x(D) 30.2cm
Composition
Plastic and stainless steel
•
230V, 50Hz, 550W, low noise DC motor
•
1.2M power cord including plug
•
Aluminium alloy bread pan and aluminium die casting
mixing blade, both in non stick coated
•
19 digital programs with LCD display
•
Adjustable crust control: light, medium and dark
•
10 minutes electric power cut off memory
•
15 hours programmable delay timer
•
60 minutes warm-keeping
•
Measuring cup, dough hook and spoon included
CAUTION! THIS ELECTRICAL APPLIANCE'S EXTERNAL SURFACES
WILL GET HOT IN NORMAL USE.
ALLOW TO COOL BEFORE TOUCHING THE EXTERNAL
SURFACES.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Bergstrom H644
-
Page 1: Important Safeguards
Bread Maker H644 v01: 15/03/21 Please read and retain these instructions for future reference Dimensions (H) 35.5cm x(W) 24cm x(D) 30.2cm Composition Plastic and stainless steel • 230V, 50Hz, 550W, low noise DC motor • 1.2M power cord including plug •... -
Page 2: Table Of Contents
Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 9. This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. -
Page 3: Know Your Bread Maker
Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 TROUBLE SHOOTING ............................14 Recipe ................................16 PLUG WIRING (UK & IRELAND) .......................... 23 KNOW YOUR BREAD MAKER... -
Page 4: Introduction Of Control Panel
Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Accessories INTRODUCTION OF CONTROL PANEL After power-up As soon as the bread maker is plugged into power supply, a beep will be heard and “15:00” will be displayed. - Page 5 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Start/stop This button is used for starting and stopping the selected baking program. To start a program, press the START/STOP button once. A short beep will be heard, the indicator will light up, and the two dots in the time display begin to flash and the program starts.
- Page 6 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Program 6: Rice bread Kneading, rise and baking loaf with the 1:1 mix of cooked rice and flour. Program 7: Gluten free Kneading, rise and baking GLUTEN free loaf. Normally for: gluten free flour, rice flour, sweet potato flour, corn flour and oat flour.
- Page 7 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Program 15: Yoghurt Rising and making yoghurt. Program 16: Sticky rice Kneading and baking a mix of polished glutinous rice and rice. Program 17: Rice wine Rising and baking polished glutinous rice.
-
Page 8: Keep Warm
Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 bread at 7:00 in the morning. If you don’t want to take out the bread immediately, keeping warm time of 1hour starts. Note: For time delayed baking, do not use any easily perishable ingredients such as eggs, fresh milk, fruits, onions, etc. -
Page 9: Before First Use
Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 BEFORE FIRST USE The appliance may emit a little smoke and a characteristic smell when you turn it on for the first time. This is normal and will soon stop. - Page 10 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 6. Press the COLOR button to select the desired crust colour. 7. Press the LOAF SIZE button to select the desired size. 8. Set the delay time by pressing button.
-
Page 11: Cleaning And Maintenance
Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Special introduction About Quick Breads Quick breads are made with baking powder and baking soda that is activated by moisture and heat. For perfect quick breads, it is suggested that all liquids be placed in the bottom of the bread pan ;... - Page 12 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Flour that contains no baking powder, it is used for making express bread. 3. Whole-wheat flour Whole-wheat flour is ground from grain. It contains wheat skin and gluten. Whole-wheat flour is heavier and more nutricious than common flour.
-
Page 13: Ingredients Measurement
Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 (2) Put 1 tsp. white sugar into the cup and stir, then sprinkle 2 tsp. yeast over the water. (3) Place the measuring cup in a warm place for about 10min. Do not stir the water. - Page 14 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Water, fresh milk or milk powder solution should be measured with measuring cups. Observe the level of the measuring cup with your eyes horizontally. When you measure cooking oil or other ingredients, clean the measuring cup thoroughly without any other ingredients.
- Page 15 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Problem Cause Solution 1.Incorrect program menu Select the proper program menu selected 2.after operating, cover has been opened several times Ingredients are not...
- Page 16 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Problem Cause Solution 2.yeast rate is too rapid or yeast temperature is too Yeast is used under room temperature Bread collapses in high...
- Page 17 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Remark Menus Ingredient Volume Volume Volume bread 1000g 750g 500g weight sequence time 3:05 3:00 2:55 water 320ml 260ml 180ml salt 1.5 spoons...
- Page 18 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Remark Menus Ingredient Volume Volume Volume bread 1000g 750g 500g weight time 3:50 3:45 3:40 water 300ml 240ml 160ml salt 1spoon 0.5 spoon 0.5 spoon...
- Page 19 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Remark Menus Ingredient Volume Volume Volume put on the dry flour,do not let instant 1.25 spoons 1spoon yeast spoons come in contact with liquid...
- Page 20 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Remark Menus Ingredient Volume Volume Volume use cool downed cooked rice cooked rice 2 cups 1.5 cups 1 cup 2 cups/ 1.5cups/ 1cup/...
- Page 21 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Remark Menus Ingredient Volume Volume Volume raisin cups time 0:15 water 330ml salt 1spoon put on the corner scoops high gluten cups/56 flour...
- Page 22 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Remark Menus Ingredient Volume Volume Volume 3 pcs together into bread barrel, then start this menu. sugar 0.5cups 2scoop 2cups/2 self-rising flour 1spoon...
- Page 23 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 Remark Menus Ingredient Volume Volume Volume default 30mins；adjustable from 0:10 to 2:00，10mins for each pressing defrost time 0:30 peanuts 300g Stir-fry default 0:30；adjustable from 0:10 to 2:00，+/-1min for each short-pressing，...
- Page 24 Bread Maker Instructions for Use H644 Please read and retain these instructions for future reference v001: 15/03/21 • Plastics, polybags – Contains the following recyclable plastic. Code & Symbol Type of Plastic Polypropylene Microwaveable food containers, yoghurt pots, Commonly used for...
