Summary of Contents for Altana BYK t200

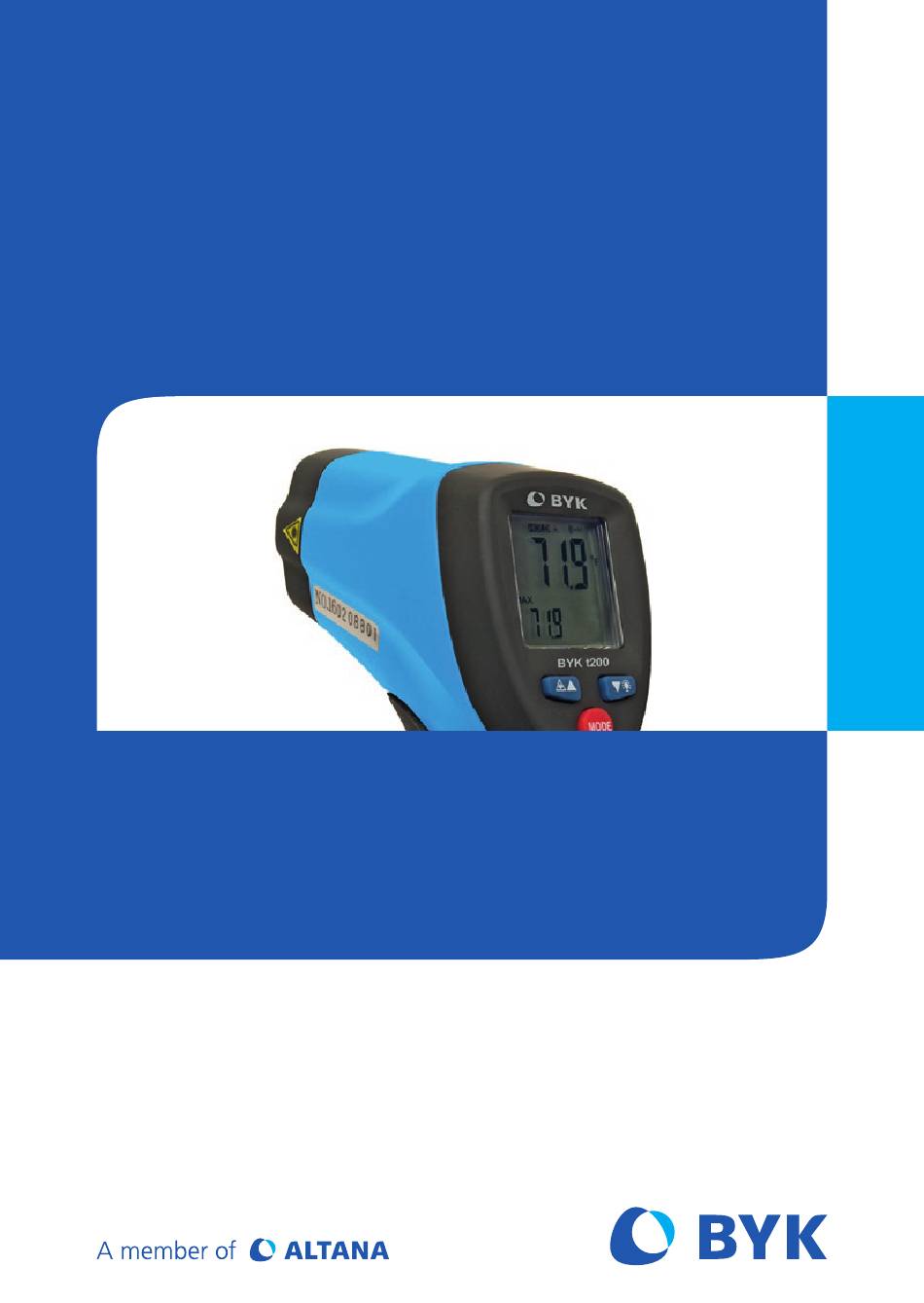

- Page 1 Measure what you see. BYK t200 IR Thermometer Manual...
- Page 3 BYK t200 Manual IR Thermometer November 2019 BYK - Gardner USA BYK-Gardner GmbH 9104 Guilford Road Lausitzer Str. 8 Columbia, MD 21046 D-82538 Geretsried Germany Phone 800-343-7721 Tel. 0-800-gardner 301-483-6500 (0-800-4273637) 800-394-8215 +49-8171-3493-0 301-483-6555 +49-8171-3493-140 www.byk-instruments.com...
-
Page 4: Table Of Contents
Tabe of Contents 1 Safety Information ................05 2 Preparations ..................06 3 System Description ................07 4 Operation ....................08 5 Technical Data ..................09... -
Page 5: Safety Information
WARNING! The BYK t200 IR Thermometer is designed and intended for the use described in this manual. Using the IR Thermometer for other purposes for which it was not designed may reduce or eliminate the protection offered by the features of the instrument. -
Page 6: Preparations
2 Preparations The BYK t200 IR Thermometer is capable of non-contact, infrared temperature measurement. By depressing the trigger button, a dual-beam laser pointer illuminates the target area and measures the surface temperature. The non-contact Infrared Thermometer measures surfaces that are difficult to reach or not possible to measure by contact measurement devices. -
Page 7: System Description
3 System Description OVERVIEW Display screen °C/°F and buzzer on/off button Max/Min button Laser on/off button Laser Infrared Sensor Trigger power Laser measurement on button LCD INTERFACE INSTRUCTIONS Data hold Laser on Buzzer on Scan power symbol Measure °C/°F data symbol Temp. -
Page 8: Operation
Press the laser button Switch on/off buzzer Short press the °C/°F button Find Max/Min If the buzzer is turned on, when BYK t200 finds the Max/Min value, the buzzer will beep. BATTERY REPLACEMENT If battery power is not sufficient, the low power symbol will be displayed. -
Page 9: Technical Data
5 Technical Data SPECIFICATIONS Temperature range -50 to 380°C (-58 to 716°F) -50 to 20°C (-58 to 68°F) ±2.5°C (4.5°F) Temperature accuracy 20 to 380°C (68 to 716°F) ±1.0% +1°C (1.8°F) Temperature repeatability ±1°C (1.8°F) Response time 150 ms D:S Ratio 12:1 Spectral response 8-14 microns... - Page 10 EC – Declaration of Conformity BYK-Gardner USA 9104 Guilford Road Columbia, MD 21046 USA herewith declare the product: BYK t200 IR Thermometer Type: comply with the requirements of the following EC directives: Electromagnetic Compatibility 2014/30/EU The following harmonized standards were applied:...
