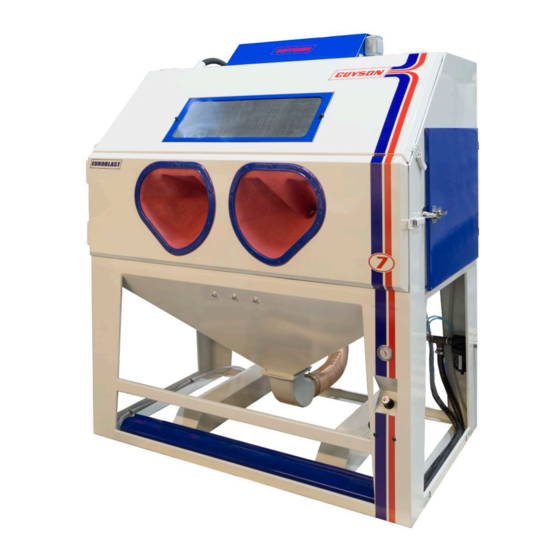

Euroblast PF Range
Operating & Maintenance Instructions
Machine
Serial No.
Customer
A/C No.
Guyson International Limited
Snaygill Industrial Estate
Keighley Road
Skipton
North Yorkshire
BD23 2QR
Tel:
01756 799911
Fax:
01756 790213
E-mail:
info@guyson.co.uk
Website:
www.guyson.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Euroblast PF and is the answer not in the manual?

Questions and answers

Related Manuals for Guyson Euroblast PF

Summary of Contents for Guyson Euroblast PF

  • Page 1 Euroblast PF Range Operating & Maintenance Instructions Machine Serial No. Customer A/C No. Guyson International Limited Snaygill Industrial Estate Keighley Road Skipton North Yorkshire BD23 2QR Tel: 01756 799911 E-mail: info@guyson.co.uk Fax: 01756 790213 Website: www.guyson.co.uk...

  • Page 2: Table Of Contents

    7.1.9.6 Replacing the HEPA14 Filter Cartridge, C800 Dust Collector ........42 7.1.9.7 Bin Balance Breather Sock ................... 43 7.1.9.8 Autopulse, C400 and C600 ................... 44 7.1.10 Compressed air filter ......................46 Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 2...
  • Page 3 10.1.4 G55 Pressure pot assembly ....................74 10.2 Electrical schematics and parts lists ..................76 10.2.1 Electrical installation of dust collectors and cyclones ............77 10.3 Proprietary manuals ........................79 Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 3...

  • Page 4: Introduction

    1.1 Safety recommendations Users of Guyson equipment are advised to make sure they have identified any hazards associated with their specific blasting processes, including: Use of compressed air Fire/explosion risks, e.g.

  • Page 5: Blast Media

    Walnut shell Walnut shell Zirblast Fused zirconia Cleaning, peening, Ceramic deburring and scale removal Iron silicate Copper slag Site blasting, removing Expendables corrosion and paint prior to recoating Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 5...
  • Page 6 A data sheet is available for each of the media listed in the table, giving more specific details of the product, applications and mesh sizes. Contact Guyson International Ltd for further information and advice on which blast media will suit your application.

  • Page 7: Data Sheet

    /hr or 42 CFM Cabinet lighting Electric supply Single phase, 230 V, 50 Hz LED link light Fuse rating Operator protection required Hand and lower arm by gloves or gauntlets (supplied) Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 7...

  • Page 8: Cyclones

    3.5 bar 3.5 bar where: Cartridge Filter - PTFE Element Fabric filter - Polyester needlefelt - Scrim reinforced Manual shaking system Manual Pulse Air Cleaning System Auto Pulse Air Cleaning System Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 8...

  • Page 9: Air Consumption Tables

    ** Nozzles have traditionally been given numbers to denote their size. This number defines the bore size in sixteenths of an inch e.g. a Guyson G2 nozzle is 2 sixteenths or one eight of an inch. Bore sizes are also “rounded” to the nearest millimeter size but of course, this is not exact. The chart above indicates the “rounded”...

  • Page 10: Installation

    Locate the cabinet in the required position and orientation; always allow sufficient room around the units to fully open doors and to give access for operation and maintenance. Care should be taken to ensure all parts of the system are level Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 10...

  • Page 11: Assembly

    Note: If your system requires a G55 pressure pot then this will already be connected to the cyclone. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 11...
  • Page 12 If the cabinet is a side loader version then: Connect the outer frame to the cabinet using the fasteners supplied. Ensure the outer support is level using the adjustable feet Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 12...

  • Page 13: Compressed Air Connections

    1” and it connects to a 3/4” BSP thread. Connect the main compressed air supply to the pneumatic isolator valve. Take care that any jointing material (e.g. PTFE tape) does not enter the pipework. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 13...
  • Page 14 The C400, C600 and C800 dust collectors will require a compressed air supply. The regulator should be set to a max of 50 psi. C400 Connect the air supply from the back right leg of the blast cabinet to the dust collector. C600 C800 Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 14...

  • Page 15: Pressure Pot Connections

    The pressure pot should be connected up to the exhaust, blast nozzle, air supply, etc. Use the hose tags and the drawings in the appendix to match the hoses up correctly. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 15...

  • Page 16: Electrical Connections

    Power supplies should be taken to the starter boxes situated on the side of the dust collector and cyclone. The electrical supply to the lighting on the cabinet is via an IEC lead. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 16...

  • Page 17: Testing Installation

    If rotation is in the wrong direction, then on a 3 phase motor two of the input phase lines should be changed over. Guyson International should be contacted for more information if it is a single phase motor.
  • Page 18 If rotation is in the wrong direction, then on a 3 phase motor two of the input phase lines should be changed over. Guyson International should be contacted for more information if it is a single phase motor.
  • Page 19 Depress the foot pedal • Check for steady air blast from blast nozzle and for possible leaks • Release foot pedal and remove arms from entries • Add media to machine Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 19...

  • Page 20: Media Levels

    Turn off the cyclone • Open the filler chute flap • Pour media into the cyclone Close the filler chute flap • • Turn the dust collector on • Turn the cyclone on Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 20...

  • Page 21: Machine Settings

    Greater media breakdown means higher media consumption • Noise increases Adjust the blast gun pressure using the control knob on the main air inlet filter. The gauge shows the set pressure. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 21...

  • Page 22: Media Control Valve

    Once media flow is achieved by the gradual closing of the nozzle ball valve then the media valve should be adjusted to even out the flow. Small adjustments of both valves may thus be needed to achieve optimum performance. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 22...
  • Page 23 LEAN FLOW IS ALWAYS BEST. As the media enters the airstream it causes the airflow to slow down. Too much media makes the process less effective. Once set to its optimum position it should not require further adjustment whilst using the same blast media. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 23...

  • Page 24: Stand-Off Distance

    In systems with a cyclone the extraction should be set so that a minimum amount of media is transferred into the dust collection system. Always check the waste bin for good media when adjusting any settings. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 24...
  • Page 25 If a bin liner is not used then dust will be drawn up through the bin balance pipe into the clean side of the dust collector. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 25...

  • Page 26: Cyclone

    Secure the thumb-screw when the adjusting rod is in the desired position • Close the access panel Note: The position of the vortex can be viewed by opening the top access door during the adjustment procedure. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 26...
  • Page 27 To maximize operation, each different blasting operation will need the settings checking for best blasting performance. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 27...

  • Page 28: Operation

    Further blasting may be necessary, or an adjustment to one or more of the machine or blast settings • The air line may be used to clean dust from the component surface Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 28...

  • Page 29: Maintenance

    PERFORMING ANY MAINTENANCE. A LOCK-OUT AND TAG PROCEDURE SHOULD BE IN PLACE TO PREVENT THE MACHINE FROM BEING STARTED PRIOR TO THE COMPLETION OF MAINTENANCE. PPE: GUYSON RECOMMENDS THAT AS A MINIMUM, OPERATIVES SHOULD USE A DUST MASK AND SAFETY GLASSES WHEN PERFORMING MAINTENANCE OF ANY SORT.

  • Page 30: Daily

    Top up media as required (see section 7.1.8) • Clean the filters every four working hours (see section 7.1.9) • Check compressed air filter (see section 7.1.10) • Check earthing bonds are secure (see section 7.1.11) Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 30...

  • Page 31: Exhaust Box

    If not the illumination window (P2GL0012) may be scratched. Replace if necessary. The rubber gasket (R5SL0000) and the gasket filler strip (R5SL0002) should also be inspected and replaced if necessary. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 31...

  • Page 32: Hoses

    Flexible exhaust ducting - standard - 150 mm bore (m) R6TB0036 Flexible exhaust ducting - polyurethane - 150 mm bore (m) P2HS0001 Hose sleeve - 150mm P1HC0006 Hose clips - 150mm Y2AB0014 Hose flanges - 150mm Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 32...

  • Page 33: Blast Nozzles

    38mm wide x 5m roll 7.1.6 Overspray Care should be taken not to wear away the insides of the cabinet. If certain areas are getting increased wear then Guyson International can supply rubber curtains and linings. Issue: A6ML0165 - Euroblast PF Manual...

  • Page 34: Empty Waste Bin

    To lower the bin; use the lever on the side. Then slide the bin out. The bin is also raised so a suitable lifting mechanism can be used to move the bin. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 34...

  • Page 35: Topping Up Media

    The release interval is set to 30 seconds in the factory. See appendix for controller manual. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 35...
  • Page 36 7.1.10.4 and 7.1.10.5 for details. The 41 dust collector does not come fitted with differential pressure gauges as standard. Hosetails are fitted as standard allowing an aftermarket differential pressure gauge (E1AA1836) to be used. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 36...

  • Page 37: Replacing The Filter Sleeves On A 41

    (Y1CA0000) by hooking top of filter onto retainer clip first then pass worm drive clip over the base of the sleeve and secure to base of dust collector. Re-fit front cover. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 37...

  • Page 38: Replacing The Filter Cartridge On A C400

    Y1CA0045 PTFE filter) Turn lifter cam 180° to the right to lock cartridge Replace front cover ENSURE THE FILTER IS CORRECTLY POSITIONED SO THAT DUST CANNOT BYPASS IT TO THE EXHAUST Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 38...

  • Page 39: Replacing The Filter Cartridge On A C600

    4. The cam is now unlocked and the filter cartridge can be removed 5. Replace with new filter cartridge (Y1CA0045) 6. Turn lifter cam 90° to the left to lock cartridge 7. Close door and lock Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 39...

  • Page 40: Replacing The Filter Cartridges On A C800

    Lower lifting handle to its locked position Close and lock door ENSURE THE FILTERS ARE CORRECTLY POSITIONED SO THAT DUST CANNOT BYPASS THEM TO THE EXHAUST Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 40...

  • Page 41: Replacing The Hepa14 Filter Cartridge, C600 Dust Collector

    Ensure the filter is fitted with the seal side on the dirty side of the airflow (facing down). HEPA filter (Y1CA0064) Filter dirty side (with seal) Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 41...

  • Page 42: Replacing The Hepa14 Filter Cartridge, C800 Dust Collector

    2. Replace with a new HEPA filter (Y1CA0064) 4. Replace the filter lid and tighten the M6 Hex ensuring that the air flow arrow on the filter match screws. those on the inner frame. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 42...

  • Page 43: Bin Balance Breather Sock

    Check that the sock is firmly attached and not full of dust. The sock prevents dust from contaminating the clean side, as dust will be drawn out of the dust collector bin if a plastic bin liner is not used. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 43...

  • Page 44: Autopulse, C400 And C600

    Once the new time is saved, the unit will start operating with the new settings. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 44...
  • Page 45 You are now ready to start using the DLUX timer again. Restore normal system pressure and proceed to use the machine. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 45...

  • Page 46: Compressed Air Filter

    The compressed air filter is self draining. If the media is dry and not clumping together then the compressed air filter is working correctly. If the media is clumping together then there is a problem with the compressed air filter or your air supply. Guyson International Ltd should be contacted for more information.

  • Page 47: Weekly

    Ensure turntable is free to rotate (see section 7.2.5) • Inspect pressure pot media flow control valve for wear (see section 7.2.6) • Check exhaust and media hoses and couplings for signs of wear (see section 7.2.7) Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 47...

  • Page 48: Hopper Elbow

    E1AA0097 90° Ø100 PU hopper elbow E1AA3176 Wear plate side loader hopper elbow If your elbow is not one of those listed in the table above then please contact Guyson International for more information. Issue: A6ML0165 - Euroblast PF Manual...

  • Page 49: Cyclone

    • media may be able to exit the cabinet Item code Description Y1AA0024 Armhole sleeve large Y1AA0011 Armhole sleeve 3 corner Y1AA0017 Gauntlets Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 49...

  • Page 50: Side Loader Turntable Trolley

    Euro 10 Outer MS washer P5BE0006 Euro 10 Sealed bearing E1AB4167 Euro 10 Flat wheel E1AB4166 Euro 10 Vee wheel E1AB5911 Euro 10 Inner PTFE washer E1AB5912 Euro 10 Outer MS wheel Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 50...

  • Page 51: Turntable Rotation

    Turn table, various sizes and Call for options finishes available Washer, Euro 6/7/8/9/10, E1AA0104 sideloader and non-sideloader Felt seal, Euro 6/7/8/9/10, P5SE0019 sideloader and non-sideloader Flange bearing, Euro 6/7/8/9/10, P5BE0017 sideloader and non-sideloader Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 51...

  • Page 52: Media Flow Control Valve

    Regular inspection is necessary to ensure that the failure of the sliding gate does not lead to the destruction of the valve outer casing. P4VL0175 P4VL0177 P4VL0176 Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 52...

  • Page 53: Media Hoses And Couplings

    Any internal wear will result in the hose feeling soft where the hose wall is thinner. See assy drawings in appendix for coupling item codes. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 53...

  • Page 54: Monthly

    Drain old media and discard (see section 7.3.1) and refill system with new media (see section 4.2) • Check the ball valve for internal wear and replace if worn (see section 7.3.2) • Check exhaust valve and diaphragm for wear and splits (see section 7.3.3) Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 54...

  • Page 55: Emptying Media

    • Unscrew latches and allow media control valve to swing open • Collect media in container TAKE CARE TO AVOID TRAPPING FINGERS; THE MEDIA CONTROL VALVE COULD BE VERY HEAVY Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 55...

  • Page 56: Ball Valve

    PLEASE ENSURE THAT THE PRESSURE POT IS NOT OVERFILLED OTHERWISE PREMATURE FAILURE OF THE BALL VALVE MAY OCCUR. REGULAR INSPECTION IS NECESSARY TO PREVENT PREMATURE FAILURE Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 56...

  • Page 57: Exhaust Valve

    Exhaust air from pot Vent hole Exhaust air out Control air in To pressure gauge and Compressed air in safety blow off Compressed air out to pot Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 57...

  • Page 58: Spare Parts

    2 off polyurethane valve seals 2 off O-rings 2 off PTFE discs Note: part number 1A is available as a separate part – item number P4VL0186 Complete valve: item number: P4VL0178 Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 58...
  • Page 59 Remove the bottom plug from the valve. This allows access to the bolt. Unscrew this bolt. This will enable the core of the valve to be fully disassembled. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 59...
  • Page 60 Operation & Maintenance Manual Guyson suggests only replacing those items that are numbered though the other parts are included in the spares kit. The valve can then be reassembled in reverse order. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019...

  • Page 61: Quarterly

    7.4.1 Blast gates Inspect for excessive wear. If this wear is so excessive that you cannot set the blast gate correctly then it will need replacing. Contact Guyson International for more information. Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 61...

  • Page 62: Faq's

    EQUIPMENT SHOULD BE FULLY ISOLATED BEFORE PERFORMING ANY FAULT FINDING CHECKS IF REQUIRED ENSURE ALL AIR SUPPLIES ARE TURNED OFF AND THE SYSTEM IS FULLY EXHAUSTED BEFORE PERFORMING ANY MAINTENANCE Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 62...
  • Page 63 Check machine extraction system Poor media quality Replace all media If problems are ongoing please conduct a full maintenance service of the equipment or contact Customer Services to book a Guyson Service Engineer visit Issue: A6ML0165 - Euroblast PF Manual Date:...

  • Page 64: Spares And Servicing

    If an item has broken that is not listed in the maintenance section and cannot be identified from the mechanical assembly drawings in the appendix of this manual then please contact Guyson International on the details below for further help.

  • Page 65: Spare Parts Identification

    Floor - Euro 8 E1AA0903  Floor - Euro 9 E1AA0906  Floor - Euro 10 E1AA0632   = Standard options fitted to the specified Euroblast * = Optional equipment Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 65...

  • Page 66: Appendices

    Operation & Maintenance Manual 10. Appendices Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 66...

  • Page 67: Mechanical Drawings And Parts Lists

    Operation & Maintenance Manual 10.1 Mechanical drawings and parts lists 10.1.1 Air assy for Euroblast 4 PF with G27/G55 Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 67...
  • Page 68 Hose 10 x 16mm OD Braided PVC P3HW0036 Cable Tie 200 x 4.5mm Black R6TB0046 Tube 1/8" Id Blue PU E1AA0859 Hose Tag P1HC0002 Hose Clip 19mm P4CG0021 Coupling Q/R 19mm Hose Spigot Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 68...
  • Page 69 Hose 19mm x 29mm Rubber 3428/3 P4VL0113 Ball Valve 3/4" BSP Venting P4MN0090 Nipple Barrel 3/4” BSP Y1BB0422 Label, "Ps: 6.0 bar" Y1BB0056 Label "Fit Hand Valve .." P4CG0053 Hosetail 1/8” BSP x 6mm Hose Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 69...

  • Page 70: Air Assy For Euroblast 6 Pf, 7 Pf, 8 Pf, 6 Pf Sl, 7 Pf Sl & 8 Pf Sl With G27/G55

    Operation & Maintenance Manual 10.1.2 Air assy for Euroblast 6 PF, 7 PF, 8 PF, 6 PF SL, 7 PF SL & 8 PF SL with G27/G55 Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 70...
  • Page 71 Hose 10 x 16mm OD Braided PVC P3HW0036 Cable Tie 200 x 4.5mm Black R6TB0046 Tube 1/8" Id Blue PU E1AA0859 Hose Tag P1HC0002 Hose Clip 19mm P4CG0021 Coupling Q/R 19mm Hose Spigot Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 71...

  • Page 72: G27 Pressure Pot Connections

    Operation & Maintenance Manual 10.1.3 G27 Pressure pot connections Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 72...
  • Page 73 Hose Clip 19mm P4CG0017 Hosetail 1/4” BSP x 6mm Hose R6TB0002 Hose 6mm Clear PVC, Braided P4VL0115 Ball Valve 1/4" BSP Venting E1AA0859 Hose Tag P3HW0036 Cable Tie 200 x 4.5mm Black Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 73...

  • Page 74: G55 Pressure Pot Assembly

    Operation & Maintenance Manual 10.1.4 G55 Pressure pot assembly Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 74...
  • Page 75 Hose Clip 19mm P4CG0017 Hosetail 1/4 BSP x 6mm Hose R6TB0002 Hose 6mm Clear PVC, Braided P4VL0115 Ball Valve 1/4" BSP Venting E1AA0859 Hose Tag P3HW0036 Cable Tie 200 x 4.5mm BLACK Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 75...

  • Page 76: Electrical Schematics And Parts Lists

    Rectifiers, Encoders, Filters Terminal connectors Plugs/Sockets, Terminals Electrically actuated devices Solenoid valves, Motor brakes, Door locks Note: These reference letters should be distinguished from lower case letters used to identify terminal connections Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 76...

  • Page 77: Electrical Installation Of Dust Collectors And Cyclones

    Manual 10.2.1 Electrical installation of dust collectors and cyclones Guyson dust collectors and motorised cyclones (whether for single or three phase supplies), when supplied to complement blast cabinets, are fitted with starters. These should be wired from the customer’s switched fused isolator.
  • Page 78 TWO of the feed wires (L1, L2 or L3) on three phase machines. If a problem occurs with installation then Guyson International should be contacted to provide support. If the yellow indicator is visible where the arrow points to, the blue reset button needs to be pressed.

  • Page 79: Proprietary Manuals

    Operation & Maintenance Manual 10.3 Proprietary manuals ZX393 Product Data Sheet 1-6 Way Sequence Controller Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 79...
  • Page 80 Operation & Maintenance Manual Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 80...
  • Page 81 Operation & Maintenance Manual Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 81...
  • Page 82 Operation & Maintenance Manual Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 82...
  • Page 83 Operation & Maintenance Manual Wiring diagram Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 83...
  • Page 84 Operation & Maintenance Manual General arrangement Issue: A6ML0165 - Euroblast PF Manual Date: 05/2019 Page: 84...
