Summary of Contents for Laarmann LMMG100

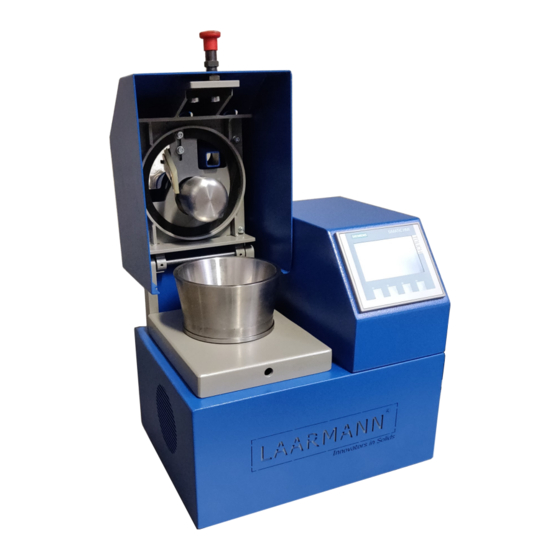

- Page 1 LMMG100 MORTAR GRINDER USER MANUAL Laarmann Group B.V. info@laarmann.eu Op het Schoor 6 www.laarmann.eu 6041 AV webshop.laarmann.eu Netherlands +31 6 23 40 00 33...
- Page 2 LMMG100 MORTAR GRINDER MANUAL Foreword Please read this manual thoroughly before initial commissioning, and comply with the safety instructions! The operating manual contains important information for operation, maintenance, Care and safety of the machine to guarantee the best possible preservation of your Investment.
-
Page 3: Table Of Contents
LMMG100 MORTAR GRINDER MANUAL Contents Page 1 Foreword Supplied technical documentation Serial number 2 Description and proper usage of the Mortar Grinder Description and proper use of the Mortar Grinder Improper usage 3 Safety instructions General safety regulations Safety symbols... - Page 4 LMMG100 MORTAR GRINDER MANUAL Contents Page 6 Electrical connection Connection Starting-up of the Mortar Grinder 7 Operating the Mortar Grinder Control elements and their use Mortar grinder part functions Switching the Mortar Grinder ON and Off Inserting / replacing the Mortar and Pestle...
-
Page 5: Foreword
Only original LAARMANN replacement parts respectively purchased parts complying with the original state may be used. Guarantee claims are only valid if no changes are made to the original state of the LMMG100 Mortar Grinder. We assume no liability for damage caused by failure to comply with these instructions or by inappropriate behaviour. This... -
Page 6: Description And Proper Usage Of The Mortar Grinder
LMMG100 MORTAR GRINDER MANUAL Description and proper use of Mortar Grinder Description and proper use of the Mortar Grinder This Mortar Grinder is intended for Dry Grinding / Wet Grinding / Ultra Fine Grinding / Cryogenic Grinding • Laminar Blending / Liquid-Liquid Dispersion •... -
Page 7: Safety Instructions
There is an added risk of accidents during maintenance and servicing work. This is why all jobs of work must be carried out with the machine at a standstill by experienced and skilled staff capable of taking the LAARMANN safety precautions for major maintenance work. -
Page 8: Initial Commissioning
LMMG100 MORTAR GRINDER MANUAL General safety instructions Only switch the Mortar Grinder on when the easy clamp system is tightened properly Bring the Mortar Grinder Mill directly to its operating position. Safety clothing Observe the same safety precautions as for maintenance! Switch off the Mortar Grinder before cleaning, safeguard the main switch. -
Page 9: Electrical Equipment Of The Mortar Grinder
LMMG100 MORTAR GRINDER MANUAL Electrical equipment of the Mortar Grinder Maintenance In the case of malfunctions, interrupt the power supply immediately and secure it to prevent the machine being switched on again. Only use the fuses stated in the circuit diagram. Connection, maintenance and servicing should only be carried out by an electrician. -
Page 10: Transport, Erection And Assembly
LMMG100 MORTAR GRINDER MANUAL Erection and assembly Check as follows: Check all fixing screws • Check all safety fasteners, and remove any foreign bodies from the Milling chamber. • Check electric system (only by an electrician) Operating voltage using a voltmeter •... -
Page 11: Control Elements And Their Use
LMMG100 MORTAR GRINDER MANUAL Operation Control elements and their use The machine can be easily moved within the laboratory or the workshop. The following points must be observed at the erection site of the machine: A constant temperature must be guaranteed. It should not be under +5°C or above +40°C. -
Page 12: Mortar Grinder Part Functions
LMMG100 MORTAR GRINDER MANUAL Mortar grinder part functions Parts Name Function Cover locking holder Lock the cover Scraper Mixing and grinding material, scraping down the material from the mortar Pestle Mill the sample Mortar Sample mixing and grinding Scraper holder... -
Page 13: Switching The Mortar Grinder On And Off
LMMG100 MORTAR GRINDER MANUAL Switching the Mortar Grinder ON and Off Functions Starting the MG100 The ON/OFF and switch G is located at the rear of the machine, Figure 2 The grinding parameters can now be selected and the machine is ready for operation. Push the START button. -
Page 14: Program Settings
LMMG100 MORTAR GRINDER MANUAL Program setting Starting Screen This is the starting screen for the installation. Here you can select “Hand Controls” for manual input or select “Automatic System” for automatic. Additional languages can be added on request Hand control Here you see the overview of the manual system. -
Page 15: Selection Guide Mortar And Pestle
LMMG100 MORTAR GRINDER MANUAL Working instructions for operation Selection Guide Mortar and Pestle Material grinding set Feed size Wear behaviour Type of sample characteristics Cyrogeneic Stainless steel 10mm good middle hard, brittle samples Hardened steel 10mm good middle hard, brittle samples... - Page 16 All supply voltages and frequencies as stated on the rating plate must be used. External power cables and connectors must be supplied by LAARMANN. Any additional equipment used must be of a type approved by LAARMANN. This conformity certificate will lose its validity in case of: •...
