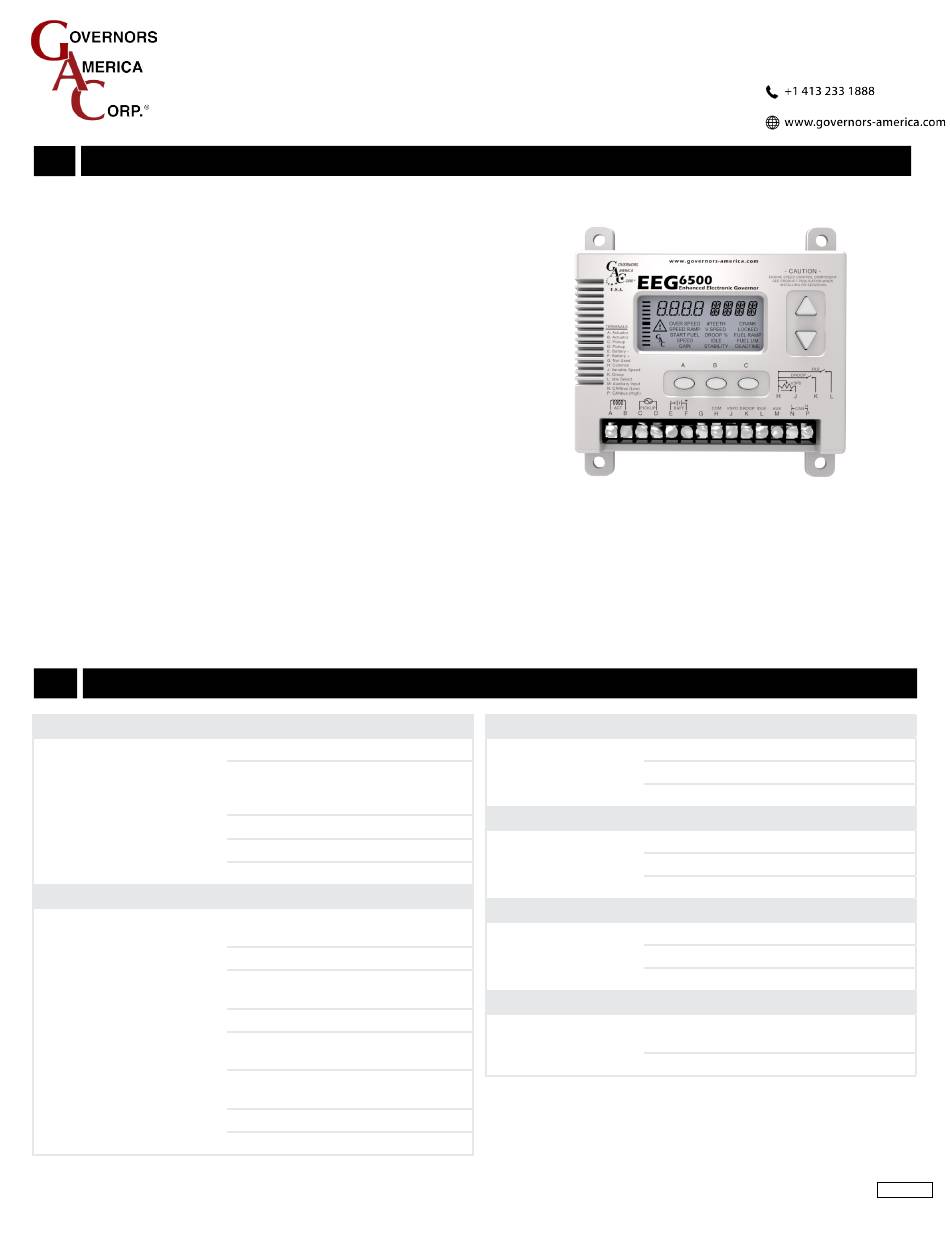

INTRODUCTION
GAC's EEG6500 Series digital governor is designed to regulate engine
speed on diesel and gasoline reciprocating engines. With flexibility, pre-
cision, and accurate control of governed speed, the EEG is designed
for industrial engine applications from generator sets and mechanical
drives, to pumps or compressors.

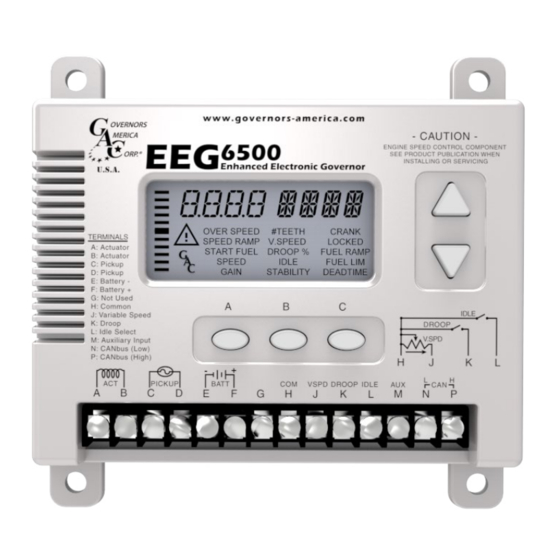

The EEG6500 Series Quikset Display allows its operator to monitor and
configure parameters without needing configuration software or a PC.
Improved, simple LCD User Interface
Š
Fast setup with 5 pushbuttons, no potentiometers
Š
Rated, Idle Speed, and Variable Speed
Š
Selectable Isochronous, Droop, & Variable Governing
Š
Built-In Fault Protection With Overcurrent Sensing
Š
Adjustable Starting Fuel Strategy (Black Smoke Reduction)
Š
Extended Speed Range to 12KHz or 6000 RPm with Frequency
Š
Display
Speed Ramping (Idle to Rated or any Speed Setting)
Š
Includes Standard GAC AUx Input for Synchronizing and Load
Š
Sharing
J1939 Engine Data and Speed Output
Š
Overspeed Sensing & Protection
Š
Compatible with all GAC actuators and ATB's, except the ATB T4
Š
Series, ADB335 and ACB2001.
2
SPECIFICATIONS
Performance
Isochronous Operation
Speed Range / Governor
Idle Adjust
Droop Range
Speed Trim
InPUT / oUTPUT
Supply
Polarity
Power Consumption
Speed Sensor Signal
Actuator Current
77 °F (25 °C) mAx
@
Load Share/
Synchronizer Input
Reverse Power Protection
Transient Voltage Protection
EEG6500
Enhanced Electronic Governor
With Quikset Display
± 0.25 %
100 Hz - 12 KHz
(200-6000 RPM
w/120 tooth flywheel) cont.
Full Range
1 - 25 % regulation
Programmable ±120 Hz
12-24 V DC Battery Systems
(7.0 to 32 V DC)
Negative Ground (Case isolated)
70 mA mAx continuous
plus actuator current
1.0 - 60.0 V RMS
10 A
0-10 V DC (5 V nominal,
reversed polarity, 145 Hz / V )
60 V
envIronmenTal
Ambient Temperature
Relative Humidity
All Surface Finishes
PHYSIcal
Dimension
Weight
Mounting
relIaBIlITY
Vibration
Shock
Testing
comPlIance / STanDarDS
Agency
Communications
Yes
EEG6500 Series Enhanced Electronic Governor 6-2020-A3 PIB5010
1
Governors America Corp. © 2020 Copyright All Rights Reserved
-40 to 85 °C (-40 to 185 °F)
up to 95 %
Fungus Proof and Corrosion Resistant
See Section 3 , Installation
1.8 lbf (820 gf)
Any position, Vertical Preferred
7 g, 20-100 Hz
20 g Peak
100 % Functional Test
CE, (EN55011, EN50081-2
and EN50082-2)
SAE J1939 (Optional)
