Assembly Manual
Sport-Thieme
Swimming Line Trolleys
®
Art.-Nr. 114 5713
D-38367 Grasleben · Germany
sport-thieme.com · info @sport-thieme.com
Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921
Art.-Nr. 114 5713
Art.-Nr. 114 57039
114 5739

Advertisement

loading
Need help?

Need help?

Do you have a question about the 114 5713 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sport-thieme 114 5713

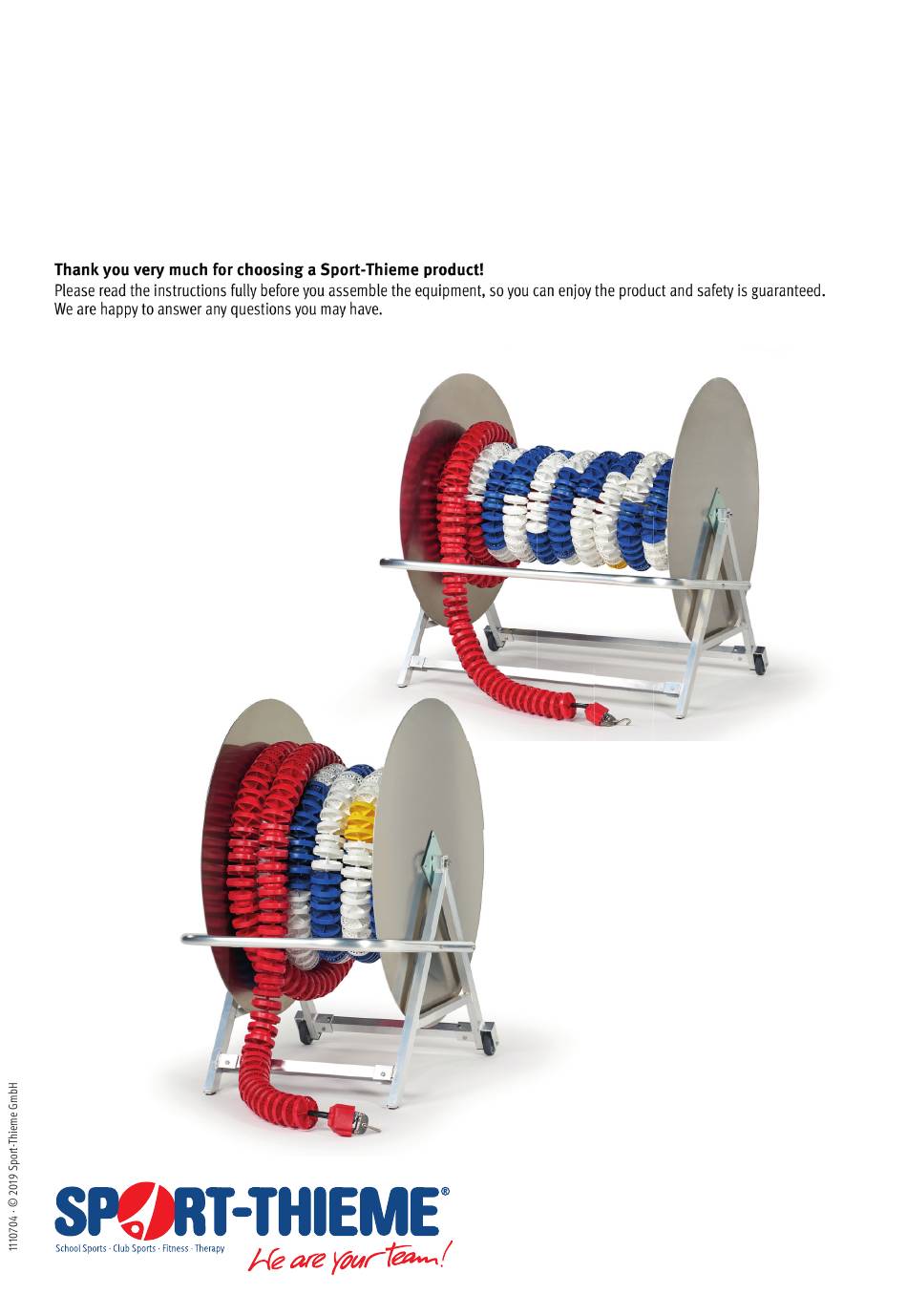

  • Page 1 Assembly Manual Art.-Nr. 114 5713 114 5739 Sport-Thieme ® Swimming Line Trolleys Art.-Nr. 114 5713 Art.-Nr. 114 57039 D-38367 Grasleben · Germany sport-thieme.com · info @sport-thieme.com Phone: +49 53 57 181 543 · Fax: +49 53 57 181 921...
  • Page 2: Scope Of Delivery

    Assembly Manual for Art.-Nr. 1. Scope of delivery: Please check the following content before assembly. Total content: 2 frame side parts 2 round reel side parts 1 reel tube 1 hoop 2 crossbars 1 accessories Accessories: 6 hexagon socket countersunk head screws M8 x 16mm, DIN 7991 2 plastic cas 50x30mm, black 12 hexagon socket screws M8 x 16mm, DIN 933 2 polyamide liners 40 x 40 mm, length 35 mm...
  • Page 3 Assembly Manual for Art.-Nr. 3. Assembly of wheels and caps at frame side parts: At fi rst stick sockets through wheel hubs. Lay both frame side parts on the ground and stick wheels into side parts. Push from the outside hexagon socket screws DIN 931, M8 x 85mm through holes of frame and sockets.
  • Page 4 Assembly Manual for Art.-Nr. 4. Assembly of crossbars at frame side parts: Lay side part on the ground. Stick 2 crossbars (U-profi le) into the sleeves welded at the side part (U-profi le). Push from the out- side 3 hexagon socket screws M8 x 16mm, DIN 933 through holes of U-profi les of each crossbar and screw slightly from the inside 2 self-locking nuts M8, DIN 985.
  • Page 5 Assembly Manual for Art.-Nr. Connect reel tube, side parts and plates as follows: Set side part against the flange of reel tube Hold plug plate at side part Adjust all parts and holes To fi x the plug plate stick threaded eye from the reel tube side through the flat hole of reel tube flange and side part (see left picture) and screw it slightly into the plate.
  • Page 6 Assembly Manual for Art.-Nr. 7. Assembly of reel at side part: Stick 1 washer Ø outside 44 mm, DIN 126 and then 1 polyamide liner 40 x 40 mm on the plugs. To insert the reel press both side parts outwards and push polyamide liners into the square attachments.
  • Page 7 Assembly Manual for Art.-Nr. 7. Assembly of handlebar: Adjust holes of handlebar and side parts. Note: Take care that the handlebar is mounted opposite to the rollers. Stick from the outside of each side part 2 hexagon socket screws M6 x 80mm, DIN 933 through holes of handlebar and side parts and fi x them with 2 self-locking nuts M6, DIN Use a hammer/mallet to fi x plastic caps Ø...
  • Page 8 Assembly Manual for Art.-Nr. 8. Assembly of reel lock: For safety reasons during transport and to avoid unrolling of lane markers the trolley is equipped with a reel lock. A sleeve with thread M8 is welded on one of the reel supports.
  • Page 9 Assembly Manual for Art.-Nr. 114 5713/5739 9. Maintenance, storage and safety instructions: Check screws regularly and change damaged and wearing parts if need be. Take care that during use the trolley is located on a horizontal surface and the guide roller is locked.

This manual is also suitable for:

114 5739
