Noyes OFI-FFTTTx Specs
Provided by www.AAATesters.com

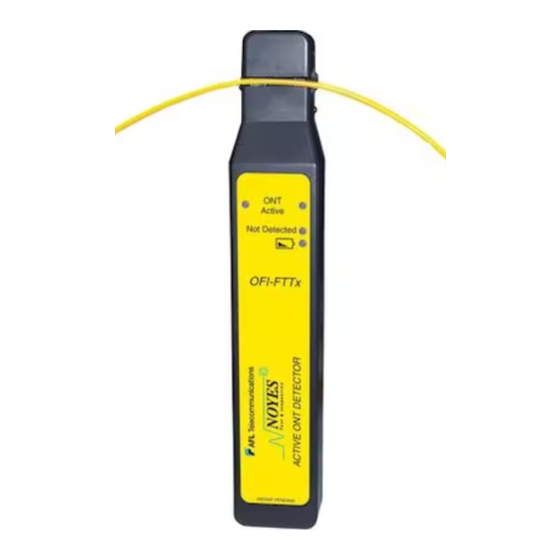

OFI-FTTx Active ONT Detector
Quick Reference Guide
General Information
The OFI-FTTx is a rugged, handheld optical fiber identifier designed to
identify the presence or absence of an active Optical Network Terminal (ONT)
on FTTx F2 fibers at the Fiber Distribution Hub (FDH). During a test the F2
fiber does not have to be removed from service. Thus the OFI-FTTx can
verify whether a splitter pigtail at the FDH is connected to an active circuit
before it is disconnected for fault location or re-use. The OFI-FTTx can help
verify FTTx network records and recover splitter pigtails and F2 fibers that
are connected at the FDH but, in fact, are available for new customers.
Please check our web site at www.AFLtele.com/go/Noyes for updates to
this Reference Guide and additional application information. If you have any
questions about your OFI-FTTx, or if you need technical or sales support,
please contact Noyes Customer Service.
Contacting Customer Service
You may call Noyes Customer Service between 8 AM and 5 PM, United
States Eastern Time.
Phone
800-321-5298
603-528-7780
Fax
603-528-2025
Mail
noyestechsupport@afltele.com
1
Advertisement
Table of Contents
Related Manuals for Fujikura AFL OFI-FTT Series
Summary of Contents for Fujikura AFL OFI-FTT Series
- Page 1 Noyes OFI-FFTTTx Specs Provided by www.AAATesters.com OFI-FTTx Active ONT Detector Quick Reference Guide General Information The OFI-FTTx is a rugged, handheld optical fiber identifier designed to identify the presence or absence of an active Optical Network Terminal (ONT) on FTTx F2 fibers at the Fiber Distribution Hub (FDH). During a test the F2 fiber does not have to be removed from service.
- Page 2 OFI-FTTx Description Hardware Features Plunger cover Optical assembly Plunger Fiber Fiber groove groove Active Not Detected Clamping Battery plate trigger OFI FTTx Battery plate PATENT PENDING 2 x AA Retaining batteries screw...
- Page 3 OFI-FTTx Indicators Indicator Description Illuminates to identify the presence of an active Optical Active Network Terminal (ONT) on FTTx F2 fibers. Illuminates to identify the absence of an active Optical Not Detected Network Terminal (ONT) on FTTx F2 fibers. Illuminates to indicate a low battery condition. Testing Fibers Time to complete each test is typically one second.
- Page 4 To place the plunger in the correct position Remove the plunger cover. Make sure the plunger is oriented in the correct position. If not, lift the plunger from the two retaining pins. Rotate the plunger as follows: To test standard fibers To test BIF fibers The side labeled “STANDARD”...
- Page 5 Replacing Batteries The OFI-FTTx is powered by two standard AA alkaline batteries. When the [Battery] indicator illuminates, the discharged batteries require replacement. To replace the discharged batteries: Remove the retaining screw and slide the battery plate away from the unit. Replace the discharged batteries.
- Page 6 Specifications Model OFI-FTTx Network Types FTTx BPON, GPON, EPON, 1:4 splitter ratio Network Locations Between splitter and customer ONT 2mm jacketed SMF-28e ®, 15mm bend radius Fiber Type AFL Bend Insensitive (BIF), and equivalents Induced Loss (Typ) < 1 dB @ 1550 nm Test Time (Typ) 1 sec Loss from ONT to FDH: 0 –...
