Satrix LNC Series Quick Start Manual

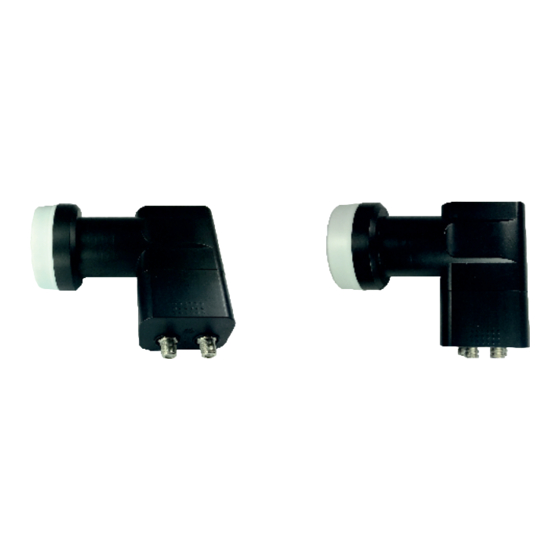

LNC Series SINGLE | TWIN | QUATTRO | QUAD | OCTO
Installation example with Quattro-LNC and Multiswitch
CE Declaration of conformity
This product bears the marking required by Directive 2004/108 / EC and
2006/95 / EC: With the CE mark, the manufacturer declares that the product
complies with the essential requirements and guidelines of the European
regulations. These can be requested. All trademarks and registered trade-
marks are the property of their respective owners.
skytronic Multimedia Technologie GmbH
Hasselborner Strasse 19-21
35647 Waldsolms-Brandoberndorf
Deutschland / Germany
WEEE-Reg.-Nr.: DE 78634072
4K•ULTRA HD•3D
0 Khz 22 Khz
VERTICAL VERTICAL
LOW (VL) HIGH (VH)
HORIZONTAL HORIZONTAL
LOW (HL) HIGH (HH)
4/4 www.satrix-media.com
LNC Series SINGLE | TWIN | QUATTRO | QUAD | OCTO
Satrix SINGLE LNC TMV-70065 Satrix TWIN LNC TMV-70089
for 1 Satellite & 1 Output for 1 Satellite & 2 Outputs
RECEIVER 1
Satrix QUATTRO LNC TMV-70072
for Multiswitch Systems / 1 Satellite
HH VH
HL VL
HH HL VH VL
RECEIVER 1 RECEIVER 5
RECEIVER 2 RECEIVER 6
Multiswitch
RECEIVER 3 RECEIVER 7
RECEIVER 4 RECEIVER 8
skytronic Multimedia Technologie GmbH
Hasselborner Strasse 19-21
35647 Waldsolms-Brandoberndorf
Deutschland / Germany
WEEE-Reg.-Nr.: DE 78634072
4K•ULTRA HD•3D
Satrix QUAD LNC TMV-70096
for 1 Satellite & 4 Outputs
RECEIVER 1
RECEIVER 2
RECEIVER 1 RECEIVER 3
RECEIVER 2 RECEIVER 4
Satrix OCTO LNC TMV-70683
for 1 Satellite & 8 Outputs
RECEIVER 1
RECEIVER 2
RECEIVER 3
RECEIVER 4
1/4 www.satrix-media.com
RECEIVER 5
RECEIVER 6
RECEIVER 7
RECEIVER 8
