Satrix HD-SATFINDER Manual

HD-SATFINDER
The analogue and acoustic display on the SATRIX HD-SATFINDER helps you to align the antenna
into an instant (especially suitable for ASTRA and EUTELSAT). The meter is simply switched between
the LNC and the receiver. When the antenna is aligned, the reception is indicated by a backlit visual
display and an audible tone, allowing for a fast and optimal alignment of the antenna. The additional
sensitivity control allows optimal adjustment to the signal strength. As an additional highlight you can
see the 2 built-in LEDs: V / H and 0/22 KHz

Installation and use:

• Connect the cable (from LNB of Satellite dish) with the connection „TO LNB" from SAT-Finder.
• Connect the cable (from Receiver/Multiswitch) with ethe connection „TO REC" from SAT-Finder.
• Check the correct connection on the SAT Finder and the functionality of your receiver or the
connected multiswitch.
• After switching on the SAT receiver, the scale illumination of the SAT Finder and the indicator
light up. The level display of the scale value shows 0..
• The vertical and horizontal alignment of the antenna as well as the vertical and horizontal
position of the LNB are carried out after maximum indication of the SAT Finders.
• The optimum conditions are reached and the adjustment is complete when the pointer indicates
a maximum value and the beep reaches maximum altitude.
• If the end stop is before the optimal adjustment, a smaller value can be set with the knob "-6 / +6"
on the front of the SAT Finder. This procedure can be repeated several times.
• The H / V LED indicates which polarization plane of the Sat Finder is selected. Switches on the
plane of polarization planes.
• The 22 kHz LED indicates the signal of 22 kHz. Typically, this signal is used to set the maximum
LNB frequencies for each frequency range.
• Disconnect the SAT Finder and connect the coaxial cable from the LNB with the cable to your
satellite receiver / multiswitch.

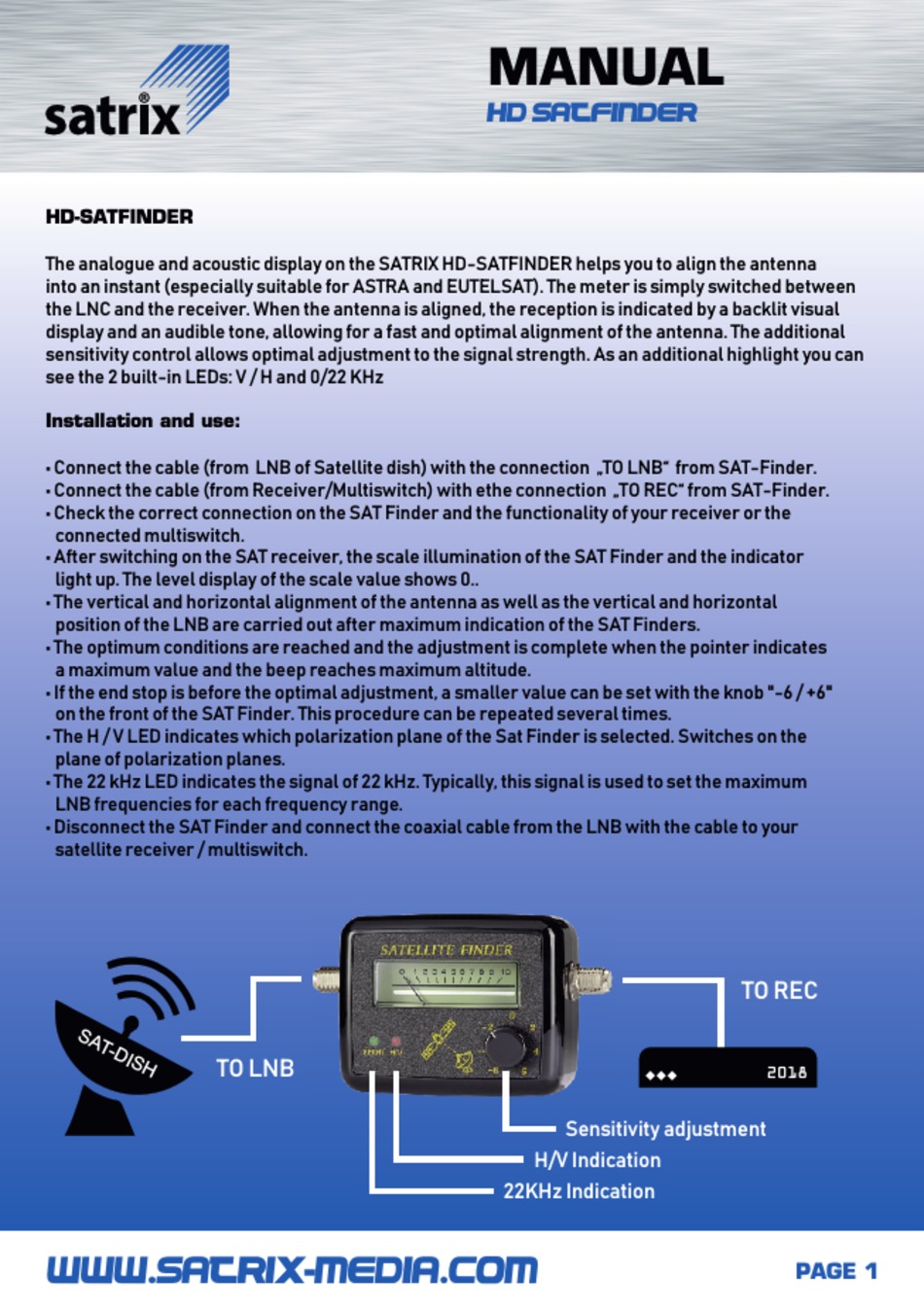

TO LNB
