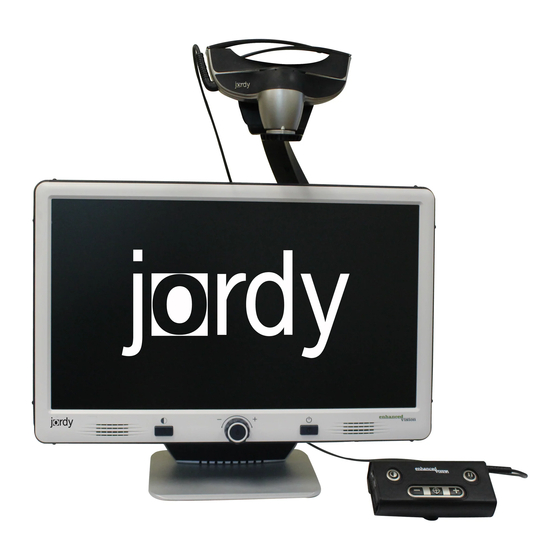

ENHANCED VISION jordy User Manual

Cctv docking stand
Hide thumbs Also See for jordy:
Table of Contents

Advertisement

Quick Links

Download this manual
Docking Stand
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the jordy and is the answer not in the manual?

Questions and answers

Related Manuals for ENHANCED VISION jordy

Summary of Contents for ENHANCED VISION jordy

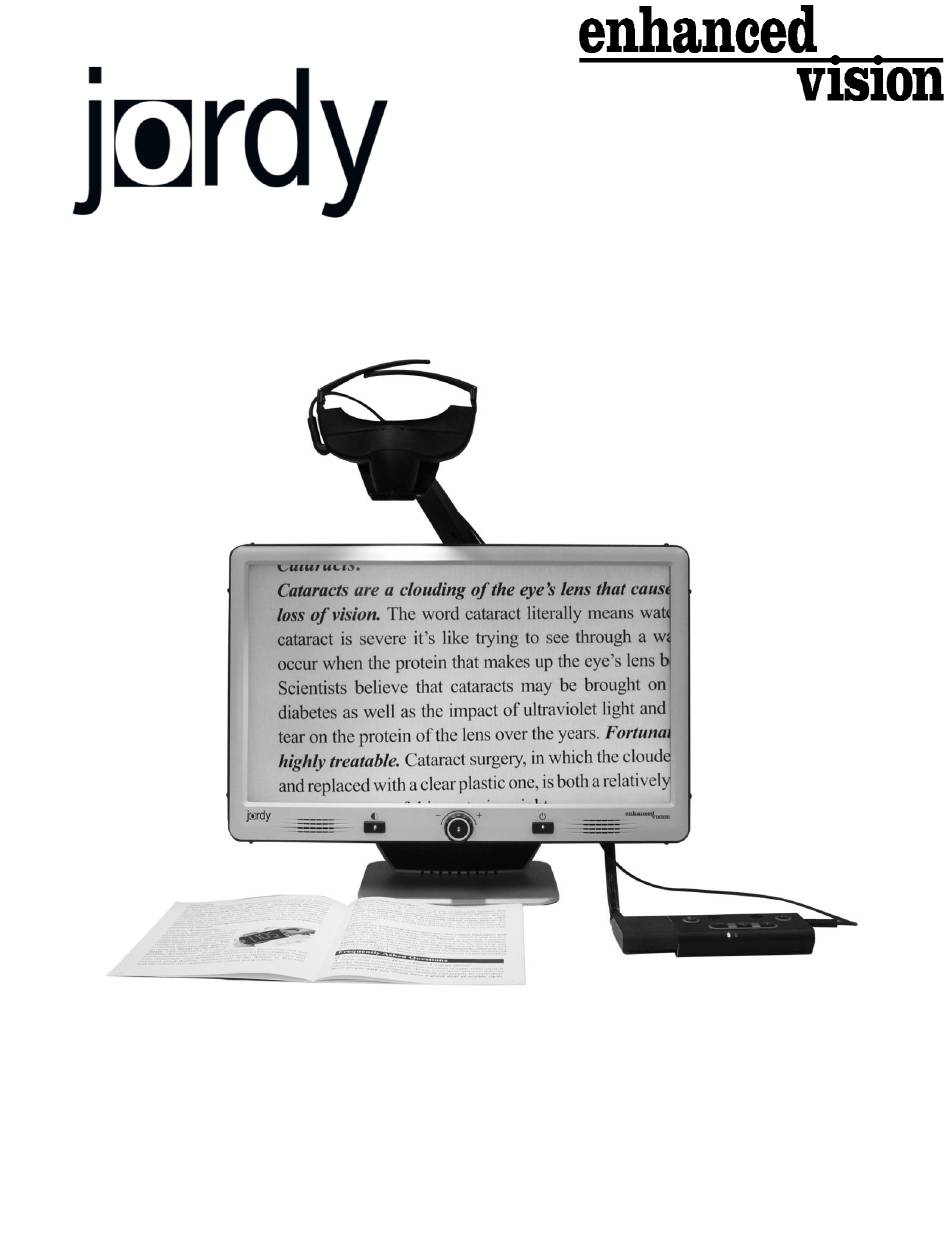

  • Page 1 Docking Stand User Manual...
  • Page 2 Enhanced Vision products are designed to give you the highest quality and convenience available. The Jordy CCTV Docking Stand can enable people with low vision to read, write and to see objects at any distance. The unique design of this product provides the ultimate in flexibility and offers a large range of magnification with multiple viewing options that make reading easier than ever.
  • Page 3 FCC COMPLIANCE NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Table Of Contents

    Table of Contents Important Safety Precautions ............... 5 - 8 Jordy Stand Package Contents ............. 9 -10 Docking Stand Setup................Using Jordy Docking Stand ..............12 - 17 Troubleshooting................... Specifications ....................Warranty Statement .................. Other Enhanced Vision Products............21-22 Contact Information .................

  • Page 5: Important Safety Precautions

    It may fall causing serious damage to the unit or bodily injury to the user.  Use the Jordy Stand indoors only – it should NOT be exposed to extreme or rapid changes in temperature or humidity. Do not place the Jordy Stand near a radiator, heater or areas exposed to long hours of direct sunlight.
  • Page 6 Caring for the Jordy Docking Stand  Always turn the power OFF on the Jordy Stand when the system is not in use.  Always turn the power OFF before cleaning the Docking Stand.
  • Page 7  Do not use the Docking Stand near flammable liquids.  At least once per week, clean the Jordy Stand with a soft dry cloth or an electrostatic dusting cloth. DO NOT use liquid cleaners on its plastic surfaces.
  • Page 8 Docking Stand to avoid possible injury to hands and fingers.  To avoid personal injury or damage to the Jordy Docking Stand or connected peripherals, always disconnect and remove your Jordy Head unit and other cables from the Docking Stand.

  • Page 9: Jordy Stand Package Contents

    DOCKING STAND PACKAGE CONTENTS All required accessories for operation are included in your Jordy CCTV Docking Stand package. The Docking Stand is comprised of the following items and features: 1. LCD High Quality Display 2. Jordy Docking Arm 3. Jordy Cable Guide/Holder 4.
  • Page 10 Jordy Stand Package Contents...

  • Page 11: Docking Stand Setup

    1. Unpacking and transporting the Jordy Docking Stand During unpacking and transporting, be sure to lift the Jordy Docking Stand by the built-in carrying handle. ****Do not attempt to lift or carry the Stand by the base or camera arm**** 2.

  • Page 12: Using Jordy Docking Stand

    With everything positioned as in Figure 3 gently slide the two components together (never force, bend or push at an angle to avoid damage to your Jordy Head unit and docking station). When the connection is secure the Dongle and Console should be flush with one another just like in Figure 4.
  • Page 13 Placing the Jordy Head unit in the Camera Arm Receptacle Step #1: Ensure that the Jordy Head unit Reading Lens is flipped open as indicated in Figure 1. A magnet should hold the lens in position. Figure 1 Step #2: Gently place the Jordy Head Unit into the indicated receptacle.
  • Page 14 #3 Power Button- When you press this button it turns the Jordy Monitor and Head Unit On and Off. As long as the Jordy docking stand is connected to 19VDC power the Jordy Head Unit will be charging when the dongle is connected.
  • Page 15 FOV and then Release to return to your previous Zoom Level. #2 Mode Button: Press this button to toggle through the various Jordy viewing modes. Press and hold 2 seconds to restore the full color mode. Press and hold 5 seconds to enter Jordy Menu.
  • Page 16 Jordy is connected to the docking station. #1 Training Mode: The Training Mode is a special display mode where the video image is simultaneously displayed on the Jordy Dual Micro Displays and the Jordy CCTV Docking stand to assist in training for Jordy Users.
  • Page 17 Jordy Dongle Connectors. Figure 4 With the adjuster in hand place it in the center of the Docking Dongle as shown in (Figure 4).

  • Page 18: Troubleshooting

    • Make sure the two parts of the power supply cord are securely connected. • Double check that the DC 19V IN jack on the back of the Jordy stand is secure. Visually inspect to ensure the pins are not bent or broken.

  • Page 19: Specifications

     Power Usage < 35 W Equipment Classification (IEC 601-1):  Type of Protection: Class 1  Degree of Protection: Type B  Mode of Operation: Continuous  Operating Temperature Range: 0-40 °C / 32- 104 °F Warranty: 2 years Jordy CCTV Stand Specifications...

  • Page 20: Warranty Statement

    Jordy Docking Stand against defects in material and workmanship under normal use for two years from the date of original purchase. Enhanced Vision, at its option, will at no charge either repair the product or replace it during the warranty period.

  • Page 21: Other Enhanced Vision Products

    OTHER ENHANCED VISION PRODUCTS DaVinci Pro DaVinci Pro is a high performance desktop video magnifier (CCTV), featuring HD, Full Page text-to- speech (OCR) and a 3-in-1 camera. With HD you will experience high definition color and contrast giving you a beautiful, crystal clear picture and vibrant colors.
  • Page 22 Magnification: 20” LCD: 1.9x (min) to 51.2x (max) 22” LCD: 2.1x (min) to 55.9x (max) 24” LCD: 2.3x (min) to 61.2x (max) Other Enhanced Vision Products...

  • Page 23: Contact Information

    Carrying Cases Convenient cases for storage and transport of all Enhanced Vision products. HDMI Splitter Box Enables the user to quickly and easily split an HDMI Video Signal to their Jordy or Docking Stand. Contact information: (US Office) Phone: (714)465-3400...
  • Page 24 The Jordy CCTV Docking Stand is designed to enlarge and enhance images to improve the lives of people who have low vision. The extent to which the Jordy can improve the ability to see images and text depends on a person's individual condition and level of visual impairment.
