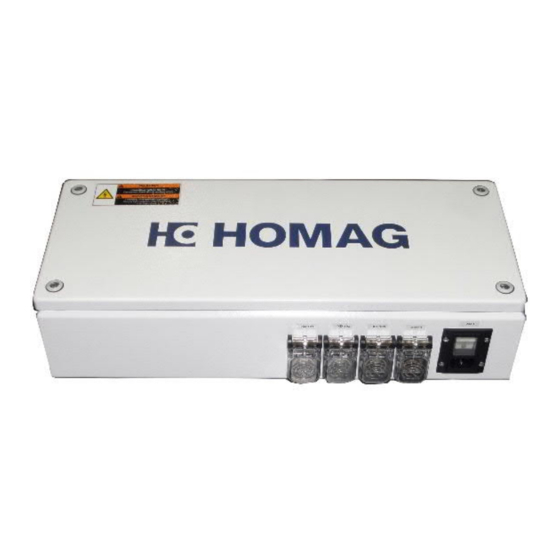

HGLightBox01
Smart Device
The LED-Box in combination with the HOMAG CUBE controls the LED-stripes for realization of
pick-by-light applications.
This equipment is not suitable for use in locations, where children are likely to be present.
Properties
supply voltage
frequency
current consumption
operating temperature
Inhalt:
1
2
2.1
Connections .......................................................................................................... 3
2.2
Assembly .............................................................................................................. 4
2.3
Putting into operation ............................................................................................. 4
3
4
5
6
Appendix
6.1
Declaration of conformance ..............................Fehler! Textmarke nicht definiert.
9.9
Values
100 - 240 VAC
50 / 60 Hz
1.0 - 3.0 A
0 - 50 °C
9-082-46-2100
Instruction-Manual-LED-Box-20201112-EN.docx
4.6.2
Fehler! Textmarke nicht definiert.
2
2
7
8
9
1
/ 9
Advertisement
Table of Contents
Summary of Contents for HOMAG HGLightBox01
-
Page 1: Table Of Contents
HGLightBox01 Smart Device 4.6.2 The LED-Box in combination with the HOMAG CUBE controls the LED-stripes for realization of pick-by-light applications. This equipment is not suitable for use in locations, where children are likely to be present. Properties Values supply voltage... -
Page 2: Functions/Sequences
Functions/sequences The LED-Box can light 1 to 3 LED-Stripes at the same time. To enable the function, a HOMAG CUBE and the App „HOMAG production Assist“, or „HOMAG material Assist“ is required. The app suitable, for the application, must be connected to the corresponding hardware during initial commissioning. -
Page 3: Connections
Nevertheless, it is recommended to connect the LED strips in the correct order. Note: Only connect the included LED-stripes or from HOMAG as accessories available stripes to the LED-Box. Never try to connect other strips to the device. Warning: Never shorten the supplied LED strips. -
Page 4: Assembly
For putting the system into operation, a mobile device is required (a Tablet as example). You also need a HOMAG CUBE. Ø On the mobile device you have to install one of the Apps „HOMAG production Assist“, or „HOMAG material Assist“. - Page 5 HGLightBox01 Smart Device 4.6.2 Ø Connect LED-Stripes to the LED-Box (XD 101, XD 102, XD 103). Therefore, open the cover of the plug contacts and plug connection cable. The order is not important here. They can be plugged in any order. Nevertheless, it is recommended to connect the LED strips in the correct order.
- Page 6 HGLightBox01 Smart Device 4.6.2 Ø Connect Ethernet cable from HOMAG CUBE to LED-Box „ETH 1“. Therefore, open the cover of the plug contacts and plug in the Ethernet cable. Ø Then check whether the plug is properly engaged by pulling the plug slightly X00121td.jpg...
-
Page 7: Routine Maintenance/ Care
HGLightBox01 Smart Device 4.6.2 Routine maintenance/ care Cleaning: Cleaning should always be done with a slightly damp cloth. For light soiling it is usually sufficient to clean the surface with water. Gentle cleaners such as liquid detergents are suitable as cleaning agents. -
Page 8: Troubleshooting
HGLightBox01 Smart Device 4.6.2 Troubleshooting If the box continues to malfunction, please contact a service technician Service). Warning: Only a qualified electrician, with appropriate training is permitted, to open the housing of the LED box. Danger: Unplug the power cable before opening the housing. -
Page 9: Disposal
HGLightBox01 Smart Device 4.6.2 Disposal According to Directive 2012/19/EU - Waste electrical and electronic equipment Note: It is not allowed to dispose this product with unsorted municipal waste. Please dispose the device according to the regulations valid in your country or send it back to: HOMAG GmbH Homagstraße 3 - 5...
