I. Vario-Slack WALL – wall anchoring for slacklines
The Vario-Slack WALL wall anchoring is part of the Vario-Slack
set WW (fi g. 1) and the Vario-Slack set GW (fi g. 2) and is used
for fi rmly mounting the slackline to an even concrete wall.
The resistance to fracture on even concrete ground
is 2200 daN.
Only use the supplied Fischer dowels (bolt anchor FAZ II
12/120) or similar dowels of a different manufacturer with
a clamping depth of at least 110 mm.
The wall anchoring Vario-Slack WALL may only be used
for slacklining in combination with the Slackline-Tools
products Slack-Grip, Slack-Ratchet CL 30 and the CLASSIC
Slackline-Tools band.
We recommend having the Vario-Slack WALL mounted by
a specialist.

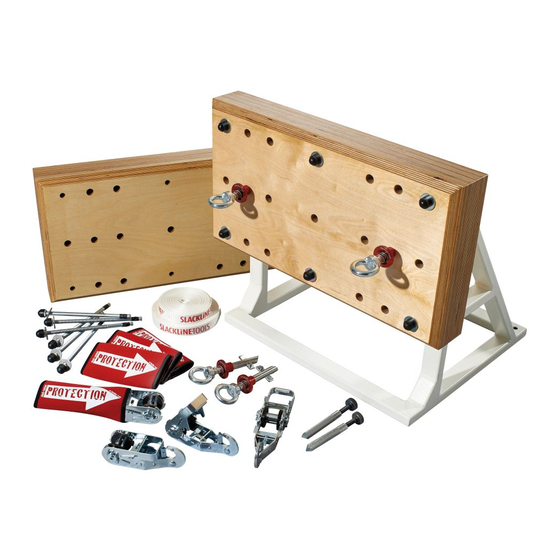

Scope of delivery for the assembly of the Vario-Slack WALL
wall anchoring for each side:
• 1 x Vario-Slack WALL
• 6 x FAZ II 12/120 including washer and M12 nut
• 6 x plastic cap
• 2 x mounting block
• 1 x assembly instructions

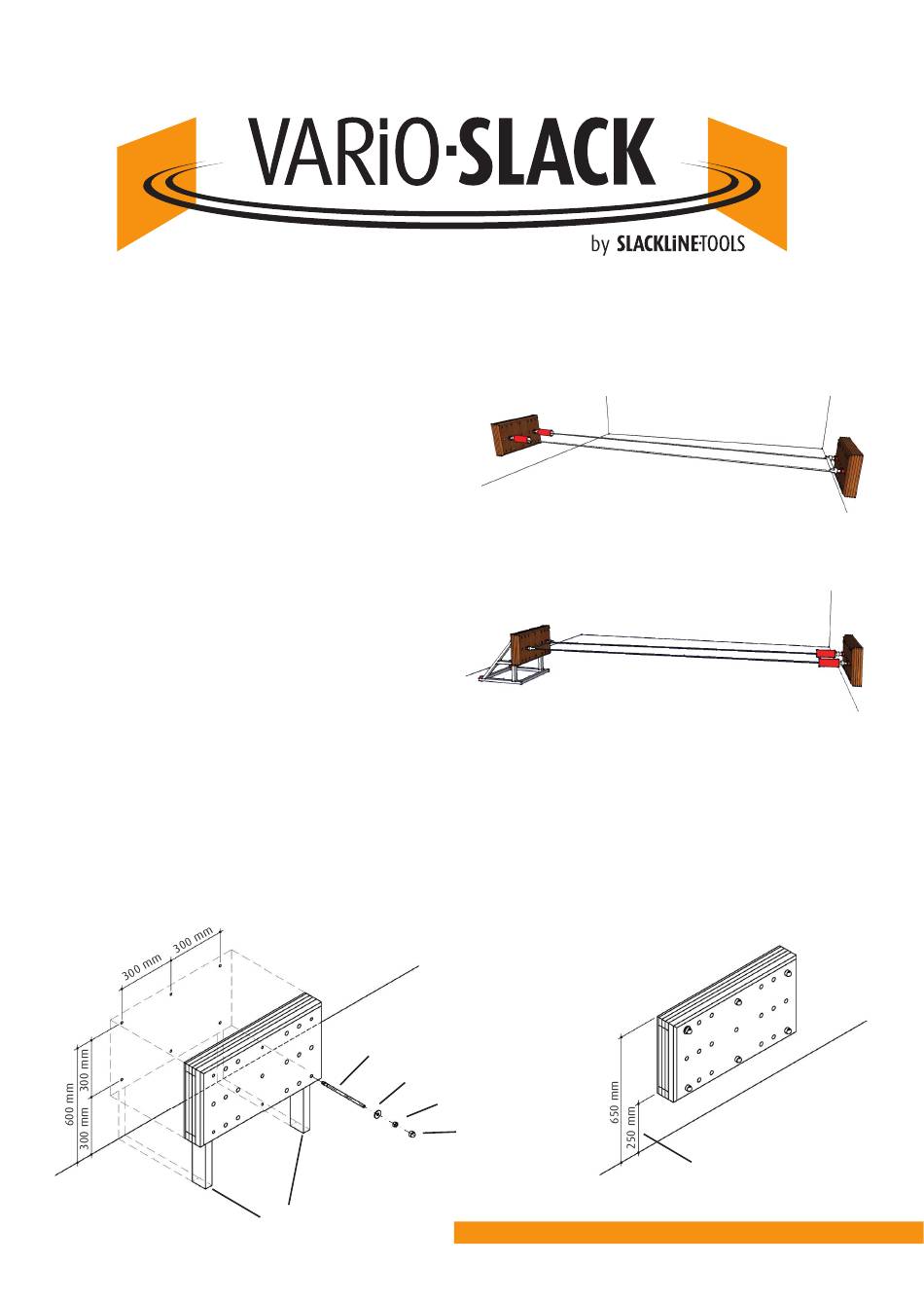

Fig. 3:
FAZ II 12/120 anchor
Washer
Mounting blocks
Fig.1: Vario-Slack set WW
Fig. 2: Vario-Slack set GW
Fig. 4:
M12 nut
Plastic cap
MONTAGEANLEITUNG VARIO-SLACK © Slackline-Tools 03.2017
Recommended mounting
height 250 mm above
the ground
5
