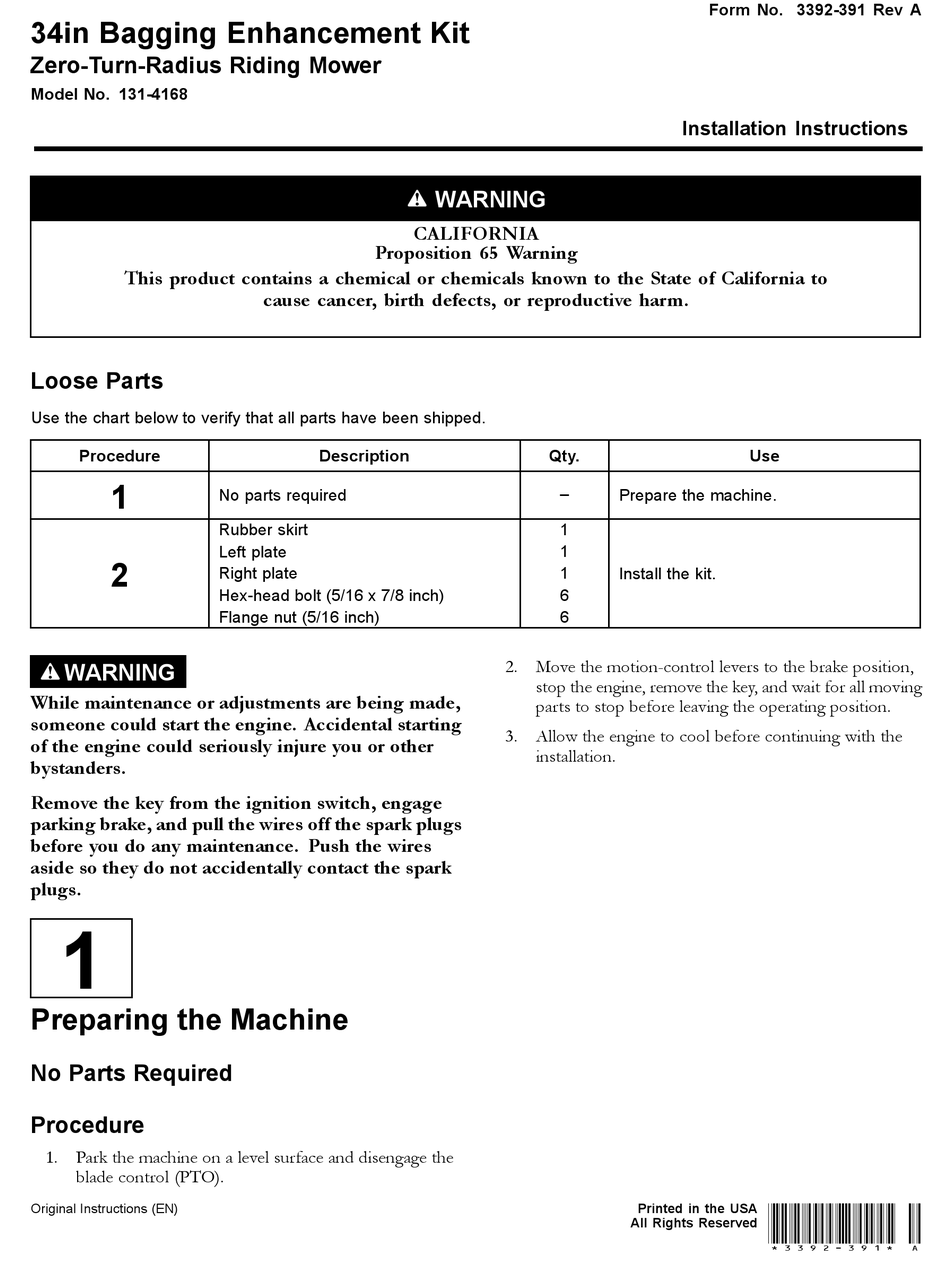

HOMEDEPOT 131-4168 Installation Instructions

34in Bagging Enhancement Kit
Zero-Turn-Radius Riding Mower
Model No. 131-4168
This product contains a chemical or chemicals known to the State of California to
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
WARNING
While maintenance or adjustments are being made,
someone could start the engine. Accidental starting
of the engine could seriously injure you or other
bystanders.
Remove the key from the ignition switch, engage
parking brake, and pull the wires off the spark plugs
before you do any maintenance. Push the wires
aside so they do not accidentally contact the spark
plugs.
1

Preparing the Machine

No Parts Required
Procedure
1. Park the machine on a level surface and disengage the
blade control (PTO).
Original Instructions (EN)
Proposition 65 Warning
cause cancer, birth defects, or reproductive harm.
Description
No parts required
Rubber skirt
Left plate
Right plate
Hex-head bolt (5/16 x 7/8 inch)
Flange nut (5/16 inch)
WARNING
CALIFORNIA
Qty.
–
1
1
1
6
6
2. Move the motion-control levers to the brake position,
stop the engine, remove the key, and wait for all moving
parts to stop before leaving the operating position.
3. Allow the engine to cool before continuing with the
installation.
Form No. 3392-391 Rev A
Installation Instructions
Use
Prepare the machine.
Install the kit.
Printed in the USA *3392-391* A
All Rights Reserved
