Summary of Contents for Viatom DT1

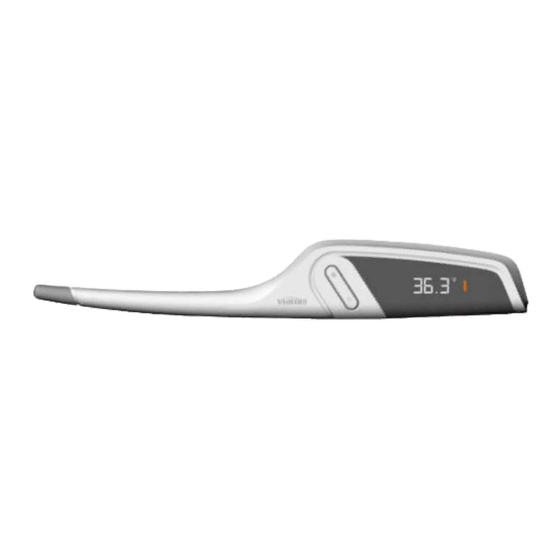

- Page 1 User’s Manual Bluetooth Clinical Electrical Thermometer Model DT1/DT2...
- Page 2 1. The Basics This manual contains the instructions necessary to oper ate the product safely and in accordance with its functio n and intended use. Observance of this manual is a pr erequisite for proper product performance and correct o peration and ensures patient and operator safety.Profess ionals, non-professionals, and patients can operate medi cal device in accordance with the instructions.
- Page 3 thermometer. Do not share the thermometer with more than one person without disinfection, cause cross-infection. Do not try to sterilize by immersing the thermometer head in alcohol or hot water (water temperature exceeds 50°C). Do not use force to squeeze the product. If the ...
- Page 4 Adults are required to shaving the skin before measuring their temperature. Make sure that the skin that is in contact with the thermometer is flat and wrinkle-free. Do not use the device where flammable gases such as anesthetic gases are present. It may cause an explosion.
-
Page 5: Intended Use
2. Introduction 2.1 Intended Use The product is used to measure body temperature in the home and in the medical sector. 2.2 Contraindications Those who are allergic to stainless steel or PC plastic should not use this product. 2.3 Symbols Symbol Meaning Application part type BF... -
Page 6: About The Product
2.4 About the product Product name: Bluetooth Clinical Electrical Thermometer Software release version：V1 Product model: Model and Configuration see the table below. Temperat Bluetooth transmissio Model measure ment n function function √ √ √ × 1. On/Off button On/Off：long press it to achieve this function. shortly When you want to take your temperature again, press it to re-measure your temperature. -
Page 7: Screen Display Information
It can measure the temperature. 2.5 Screen display information Unit/ Measurement Temperature display... -
Page 8: Before Measurement
3. Using the thermometer 3.1 Charge the Battery Use the USB cable to charge the product. Connect the USB cable to a USB charger or to the PC. There will be a battery logo flash on the device when charging.When the battery is low,the display screen will display a low power prompt. - Page 9 3.3 Measurement Note: Before measuring temperature, please clean the temperature measuring head with or rubbing alcohol. Rinse it with cool water. The thermometer supports measuring temperature of multiple body parts. For the infants under 3 months old, it is recommended to measure rectal temperature.
-
Page 10: After Measurement
3.4 After Measurement When the buzzer emits a beep sound(Beep-short sound) , it indicates that the temperature measurement ℉ is finished. The display "°C/ " stops blinking, and the displayed temperature value is the result of the current body temperature. Note: When the temperature measured by the device is lower than ℃... -
Page 11: Cleaning And Disinfecting
4. Cleaning and Disinfecting Do not use corrosive detergent to clean the unit. Clean and disinfect the thermometer before and after each use. Cleaning Process 1. Wipe probe with a cloth dipped in a disinfectant solution such as 70% isopropyl (rubbing) alcohol or soap and water. 2.Rinse off disinfectant residue. -
Page 12: Troubleshooting
5. Trouble Shooting Problem Possible Cause Recommended Action Can not boot Very low battery Please charge it according to the instruction The ambient tem Please perature exceeds within 40℃ or below working 5℃. environment temperature range (5℃-40℃) The monitor Other devices have Turn on the cannot be Bluetooth turned off... - Page 13 The device has not Measurements been placed for should be taken more than 30 before they are minutes from the left in the colder environment measuring to the measuring environment for environment. more than 30 minutes. The device has not Measurements been placed for should be taken...
-
Page 14: Specifications
7. Specifications Classifications MDD, 93/42/EEC EC Directive RED, 2014/53/EU ROHS 2.0, 2011/65/EU Degree protection against electrical Type BF shock Environmental Item Operating Storage Temperature 5 to 40°C -20 to 50°C Relative humidity 15% to 85% 15% to 85% (noncondensing) 700 to 1060 Barometric 700 to 1060 hPa Degree of dust &... - Page 15 Charge time 2～3 hours. Temperature measurement Measurement Direct mode method Measurement site Mouth,Axilla,Rectum REFERENCE Mouth,Axilla,Rectum BODY SITE Temperature Unit Celsius(℃）or Fahrenheit(℉） Temperature range 32.0 – 43.9℃（89.6-111.0℉） Less than 35.8℃, ±0.3℃.(Less than 96.4℉, ±0.5℉.) 35.8℃ to less than 37℃,±0.2℃.(96.4℉ to less than 98.0℉,±0.3℉.) 37.0℃...
-
Page 16: Electromagnetic Compatibility
8. Electromagnetic Compatibility The device meets the requirements of EN 60601-1-2. Warnings and Cautionary Advices Using accessories other than those specified in this manual may result in increased electromagnetic emission or decreased electromagnetic immunity of the equipment. The device or its components should not be used ... - Page 17 Voltage Fluctuations / Complies power supply network that supplies Flicker Emissions IEC buildings used for domestic purposes. 61000-3-3...
- Page 18 Guidance and Declaration - Electromagnetic Immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Immunity test IEC60601 test Compliance Electromagnetic level...
- Page 19 <5 % UT battery. for 5 s (>95 % dip in for 5 s Power frequency 3 A/m 3 A/m Power frequency (50/60 magnetic fields should magnetic field levels IEC 61000-4-8 characteristic typical location in typical commercial or hospital environment. Note: U is the AC mains voltage prior to application of the test level.
- Page 20 less than the compliance level in each frequency range Interference may occur in the vicinity of equipment marked with the following symbol: Note 1: At 80 MHz to 800 MHz, the separation distance for the higher frequency range applies. Note 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
- Page 21 Recommended separation distances between portable and mobile RF communications equipment and the device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the monitor as recommended below, according to the maximum output power of the...
- Page 22 FCC Warnning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 23 Shenzhen Viatom Technology Co., Ltd. 4E, Building 3, Tingwei industrial Park, No.6 Liufang Road,Block 67 Xin’an Street, Baoan District Shenzhen,518101 Guangdong China www.viatomtech.com info@viatomtech.com MedNet GmbH Borkstrasse 10, 48163 Muenster, Germany Tel:+49 251 32266-0 Fax:+49 251 32266-22 PN：255-02378-00 Version: A...
