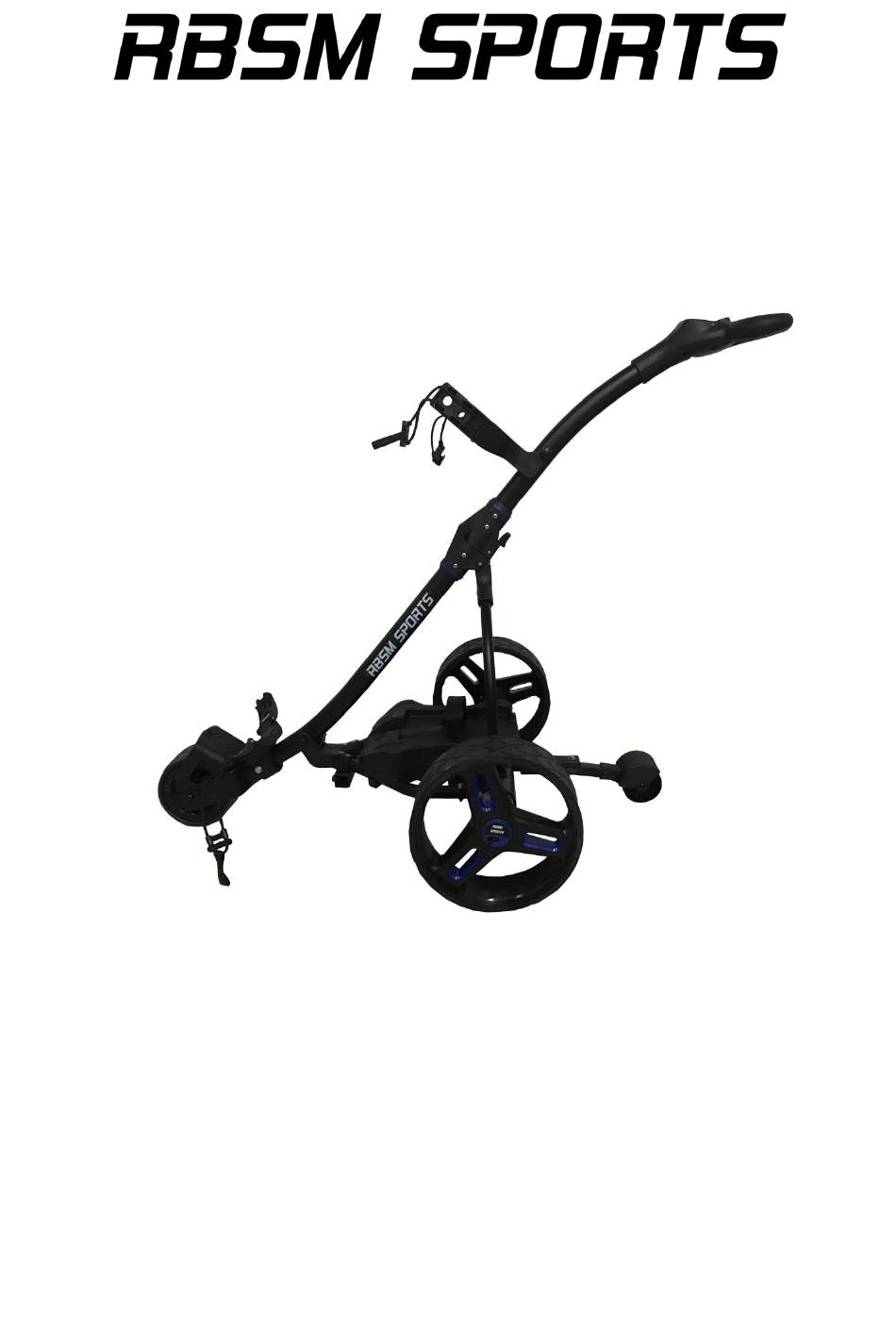

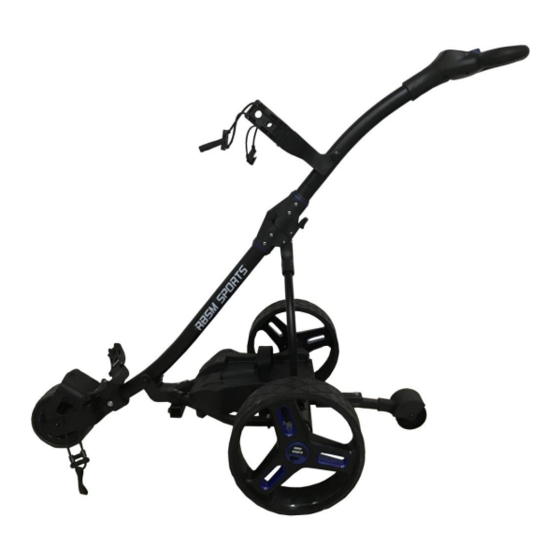

Digital Remote golf trolley
User Manual
WARNING: PLEASE FOLLOW ALL ASSEMBLY INSTRUCTIONS AND READ AND UNDERSTAND
THE OPERATING INSTRUCT
For customer assistance, please call our toll free line at (844) 202-3572
www.rbsmsports.com
Please do not return the item to the store you purchased. Call our toll free number.
Advertisement
Table of Contents
Summary of Contents for RBSM G93R
- Page 1 Digital Remote golf trolley User Manual WARNING: PLEASE FOLLOW ALL ASSEMBLY INSTRUCTIONS AND READ AND UNDERSTAND THE OPERATING INSTRUCT For customer assistance, please call our toll free line at (844) 202-3572 www.rbsmsports.com Please do not return the item to the store you purchased. Call our toll free number.
-
Page 2: Packing List
Packing List Standard Parts 1 x Caddy Frame 1 x Anti-Tip Wheel & Pin 2 x Rear Wheels 1 x Battery Pack (Battery, Bag, Leads) 1 x Charger 1 x Tool kit Remote handset ... - Page 3 2. Assembly Instructions 1. Unpack all items carefully and check everything has been included. Some extras may be in small packages so do not throw anything away until all has been checked. 2. Place the frame structure (one piece) on the floor and ensure you do not scratch the frame on a hard surface.
- Page 4 3. Attach the wheels to the axles by pushing the wheel locking button on the outside of the wheel and inserting the axle extension into the wheel. Make sure to keep the locking button on the outside of the wheel pushed in during this process, in order to enable the axle extensions, including the two pins, to be inserted all the way into the wheel.
-
Page 5: Remote Control
Handle Function 1. New Timer Function (Distance function) A→B: When press one time, digitron show A , the trolley will run 10 Meters and stop by itself When press two times, digitron show B , the trolley will run 20 Meters and stop by itself When press three times, digitron show C , the trolley will run 30 Meters and stop by itself... - Page 6 caddy stops turning and continues straight with the original speed prior to turning. D. Right Arrow: same as left arrow function E. Forward Arrow: Pushing the forward arrow will set the caddy in forward motion. Pushing multiple times will increase the speed. F.
-
Page 7: General Maintenance
forward or clockwise. The caddy will start moving forward. Adjust the speed to the desired pace. To stop or slow the caddy down either dial the speed control knob backwards or use the cruise control or On/Off buttons as described previously. 2. -
Page 8: Troubleshooting Guide
with a damp cloth or paper towel. 2) Do NOT use any high-pressure jet washers to prevent moisture entering the electronic systems, motors or gear boxes of the caddy. 3) Remove the rear wheels every few weeks and remove any debris that might cause the wheels to drag. -
Page 9: Frequently Asked Questions (Faq)
Motor is running but wheels don’t turn check if wheels are secured to axle by split pin check right and left wheel position Trolley pulls to left or right Check if wheel is fitted over the clutch and latched to axle Check if clutch pin is visible at both sides of the axle Check if the clutch turns freely in one direction... - Page 10 Reply: Our 12V sealed lead acid batteries come more or less fully charged, but we recommend you charge them for a full 12 hours before the first usage. The charger should either have a blinking green light or a red light while it's charging and turn into a steady green light when the battery is fully charged.
- Page 11 Reply: Please confirm that the rheostat speed knob is in Off or Stop position. Also check the batteries in your remote control handset. If it still does not work open up the remote control and check the connections. It is vital you only use high powered batteries in your handset The caddy does not respond well to the remote control handset? Reply: Please check the fit and condition of the handset batteries.
