Distribution of this user manual is not authorized to those other than the manufacturer.
제작자 이외에 본 사용자 매뉴얼 배포 금지.
819, Multimedia Bldg., 1732 Deokyoung(Blvd) Giheung-Gu, Yongin-City, GyeongGi, 446-701 Korea
Tel : +82-31-273-0029 Fax : +82-31-696-5259
Mesh Network with BLE
Anywhere, Anytime, Any-end
Version 0.1
User Manual
Bluetooth Low Energy Products
CCT-702A
CCT-702B
CCT-202B
DIM-201B
Advertisement
Table of Contents
Summary of Contents for Innosys CCT-702A
- Page 1 User Manual Bluetooth Low Energy Products CCT-702A CCT-702B CCT-202B DIM-201B Mesh Network with BLE Anywhere, Anytime, Any-end Version 0.1 Distribution of this user manual is not authorized to those other than the manufacturer. 제작자 이외에 본 사용자 매뉴얼 배포 금지.
- Page 2 REVISION HISTORY Revision Model Date Description Page 2015.01.12 Released This manual can often be altered by the changes in specifications. Rev 0.1 Page 2...
-
Page 3: Table Of Contents
CONTENTS 1. General ............................ 4 1.1 Introduction .......................... 4 1.2 Model Composition ....................... 5 1.3 Specifications ......................... 6 2. Functions ............................ 7 2.1 CCT‐702A/B .......................... 7 1)Timer Mode .......................... 7 2)CCT Mode .......................... 8 3)Grouping Mode ........................ 8 4)Grouping Example ........................ 1 0 2.2 CCT‐202B .......................... 1 1 2.3 DIM‐201B.......................... 1 2 3. APP Program .......................... 13 3.1 iOS installation ........................ 1 3 ... -
Page 4: General
1. GENERAL 1.1 Introduction to the products □ CCT(Color Correlated Temperature) Controller is a product that can linearly control Kelvin color(3000K-6500K) and brightness(0~100%). CCT 컨트롤러는 선형적으로 색 온도(3000K-6500K)와 밝기(0~100%)를 조종할 수 있게 한다. □ Dimmer is a product that can linearly control brightness not only by itself, but also by the connected master (CCT-702B). - Page 5 Intensity controllable to prevent flickering screen on camera · Time setting function · Display color temperature and intensity rate CCT-702A · Linear change in color temperature from 3000K to 6500K in intensity from 0% to 100% · Automatic change in color temperature based on real time ·...
- Page 6 제품 특성 · 밝기 제어로 카메라에 깜빡이는 화면 방지 · 시간 설정 기능 · 색 온도와 밝기 퍼센트 표시 CCT-702A 색 온도 3000K부터 6500K까지, 밝기 0%부터 100%까 · 지 선형적으로 조절 · 실제 시간에 맞춰 자동 조절 가능 · Bluetooth Low Energy를 사용한 Mesh network CCT-702B ·...
- Page 7 Rev 0.1 Page 7...
-
Page 8: Specifications
1.3 Specifications Models CCT-702A CCT-702B CCT-202B DIM-201B Contents Kelvin(K), Kelvin(K), Display Intensity(%), Intensity(%), 2 color LED 2 color LED Time Time Memory Load Current Input Voltage DC12V Operating -10~+45°C Temperature Storage -40~+70°C Temperature Certification KC, CE,FCC Dimension 71.72x42.62x14.35 87x25x15 Bluetooth4.0... -
Page 9: Timer Mode
표시 길게 눌렀을 때(5초) - DEMO 모드 (첫 번째) “SPED” 다시 타이머 모드로 전환(두 번째 누를 때) The figure below shows the default values of the CCT-702A/B. ③ ⑦ On timer mode, when are pressed long together(10sec), the table values return to factory’s default values. - Page 10 Intensity Intensity[%] CCT[K] 6500 6000 5500 5000 4500 4000 3500 3000 2500 12 15 18 21 23 12 15 18 21 23 24 The factory default values are applied as above after Jan-08-2014 년 월 일 이후로 출하 시 지정된 값이 위와 같이 적용 되어 있다...
-
Page 11: Cct Mode
2) CCT Mode /CCT 모드 Controlling the value of CCT and Intensity □ ③: control the value of CCT □ ④: control the value of Intensity 3 sets of CCT and Intensity values can be saved to memory □ ⑤, ⑥, ⑦: Short Key - Load from memory... - Page 12 When ③, ④ are pressed long together, everything becomes ungrouped and display shows ‘SET0’ sign. This step initializes the ID entered into the memory from the previous grouping. When ⑤, ⑦ are pressed long together, all functioning and circumjacent slaves (up to 7) become grouped and the display shows ‘GrP0’...
-
Page 13: Grouping Example
4) Grouping Example 그룹화 예시 The use of Mesh Network can be explained through following demonstration. Mesh Network의 사용은 아래와 같이 설명 될 수 있다. <Example> Fig 1. 1 master with up to 7 slaves. Fig 2. 1 master with multiple slave masters Basic setting can be done like the example shown in Figure 1. - Page 14 Usage ex) if 10 controllers were to be connected using 1 master Step1. Connect 1 slave and 2 slave masters to a master Step2. Connect two more slaves to each slave master Step3. Connect 1 more slave master and connect the rest slaves to that slave master 사용...

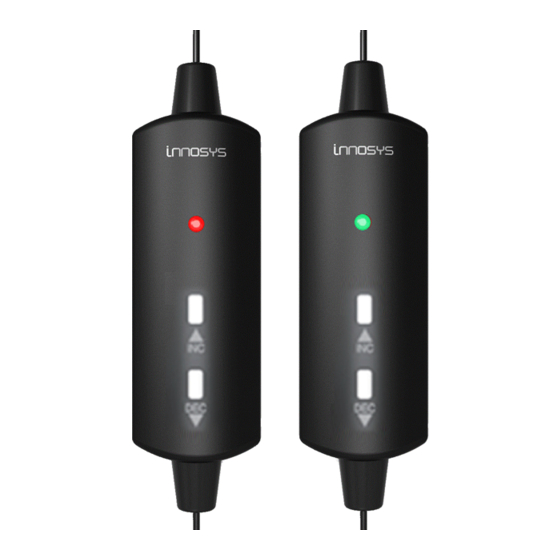

- Page 15 2.2 CCT -202B ①Display □ RED: ungrouped □ GREEN: grouped □ RED FLICKER: at intensity 0% ②③ CCT, Intensity □ Long Key: when pressed long, it linearly increases up to 6500K in CCT, 100% in intensity. It flickers when it reaches the highest. When further pressed, it returns to 3000K, 0% and makes a cycle.
-
Page 16: Cct-202B
After this step you can change the value on the master device to control the entire set of devices. Then, the panels will change their color temperature and intensity based on the rate that they have been individually set to. -
Page 17: Dim-201B
① from Green LED to RED LED. □ Grouping: The change in ① from RED LED to Green LED shows that it is grouped. □ Bluetooth based, Master model required for grouping function (CCT-702A/B, etc.) □ Separately controllable within group : Grouped lights receive same RF value from master, but each lights can still be adjusted to have its own values. - Page 18 □ 그룹 해제: ②③을 동시에 누르면, ①에 있는 초록 LED가 빨간 LED가 되면서 그 룹해제가 된다. □ 그룹화: 그룹이 되면 ①의 빨간 LED가 초록 LED 가 된다. □ 그룹화 기능을 위해서는 CCT-702A/B 등과 같은 Bluetooth가 가능한 마스터 모델 이 필요하다. □ 그룹 내 개별 조종 가능...
-
Page 19: App Program
3. APP PROGRAM 3.1 iOS installation Our products support iOS, thus the application Program to our products can be found on Apple store. You can either use ins, CCT, or ins CCT to search our app. Currently our products work merely with iOS, but we are preparing for Android app as well which will soon be out. -
Page 20: Scanning
3.2 App Instruction 1) Scanning The first page of the application shows the master devices set around. ① ② If you drag the screen down, it starts to rescan the operating devices. ③ Then it captures the new master devices connected. -
Page 21: Mesh Network Connection
2) Mesh network connection If you press the blue button from the previous screen, it shows the slave devices that are connected. When they become ungrouped it says the slave devices as “none group devices”. 전에 보여진 화면에서 파란색 버튼을 누르면, 그 마스터 CCT 컨트롤러에 연결된 슬레이브 장치들... - Page 22 모드를 키면, iPhone 의 현재 시간에 맞춰 작동이 된다는 알림 창이 뜨고, 미리 설정해 놓은 타임테이블에 따라 작동하기 시작한다. Rev 0.1 Page 22...
-
Page 23: Time Table (Timer Mode)
4) Time Table (Timer mode) . Timer mode works based on the time table set by the user. ① ② This time table shows up when button at the left bottom is pressed. You can change the time and values for CCT and Intensity of each time setting. -
Page 24: Blinking
5) Blinking When multiple devices are connected, you can check which one represents which device by simply pressing the cell. Master devices (CCT-702B) then shows “HERE” sign on its screen and slave devices starts to blink red LED. 여러 개의 장치를 연결해서 어떤 라인이 어떤 장치를 나타내는지 모를 때는 단순히 그 셀을 눌러... -
Page 25: Appendix
APPENDIX SMPS FPCB Strips ① ② Adapter Controller (LED Panel, Power (12V output) (Dimmer) LED Bar) ①: Input terminal of the controller uses a Φ 5.5 DC male Jack and uses AWG20 as wire. ②: CCT Controller uses SMP-250 as connector cable. - Page 26 부록 SMPS FPCB Strips ① ② Adapter Controller (LED Panel, Power (12V output) (Dimmer) LED Bar) ①: 컨트롤러의 입력 단자는 Φ 5.5 DC male Jack을 사용하고 전선은 AWG20를 사용한다. ②: CCT Controller는 커넥터로 SMP-250을 사용한다. FPCB strip side의 커넥터 이름은 SMH-250이다. 이 케이블의 길이는 사용자의 주문...
- Page 27 CE Statement Hereby, we declare that this device is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions.
