USER MANUAL – EN
SV16300 Kick Scooter Galaxy Calypso
SV16304 Kick Scooter Galaxy Zenit
ASSEMBLY
Check that all parts are present:
(1 pcs) main scooter frame with front fork.
(2 pcs) braking mechanisms (may vary depending on type).
(2 pcs) inflating wheels (may vary depending on type: 2x12" or 1x16" and 1x 12").

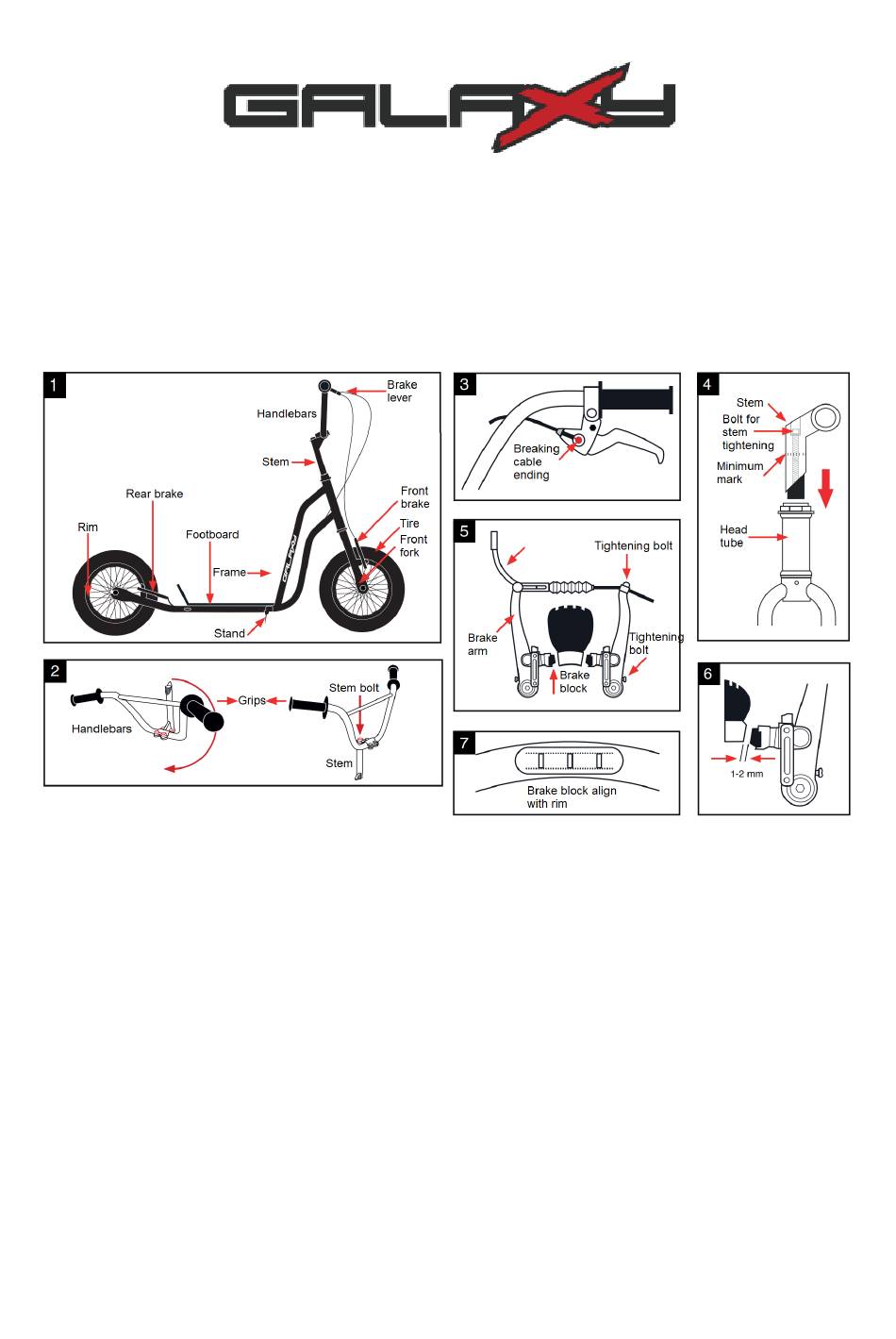

(1 pcs) handlebars including stem (see. Picture 1).
Entrust the assembly to specialized service.
Loosen the nuts on the front wheel hubs. If necessary, adjust the bearings on the axles so that the
wheels rotate freely (i.e., the wheels cannot be stiff or too loose). Insert the wheel into the front fork of
the scooter and tighten the nuts.
Attaching the handlebars: turn the stem down (if it is up, adjust the rotation and tighten evenly the 4
stem bolts (see. Picture 2).
If the stem is not connected and is placed separately, connect it to the handlebars and then tighten
evenly the 4 stem bolts (see. Picture 2).
Advertisement
Table of Contents
Summary of Contents for Galaxy Calypso SV16300
- Page 1 USER MANUAL – EN SV16300 Kick Scooter Galaxy Calypso SV16304 Kick Scooter Galaxy Zenit ASSEMBLY Check that all parts are present: (1 pcs) main scooter frame with front fork. (2 pcs) braking mechanisms (may vary depending on type). (2 pcs) inflating wheels (may vary depending on type: 2x12” or 1x16” and 1x 12”).
- Page 2 Insert the stem with the handlebars into the head tube of the scooter frame. Observe the minimum insertion depth. Align the stem with the handlebars so that the longitudinal axis of the handlebars is perpendicular to the axis of travel. Then tighten the handlebars with the Allen bolt in the stem (see. Picture 4).
- Page 3 If it starts to "crack" in the spokes while riding, it is necessary to tighten the spokes by 2 turns (entrust to a professional service),or lubricate, adjust or replace bearings and bearing parts. If it is necessary to change the wheels, always use wheels / tires with the same parameters as the original ones. Disassemble in the opposite way to installation (see Instructions).
- Page 4 • Regular use (e.g. wearing out of rubber and plastic parts, moving mechanisms, joints, wear of brake pads/blocks, chain, tires, cassette/multi wheel etc.) • Unavoidable event, natural disaster • Adjustments made by unqualified person • Improper maintenance, improper placement, damages caused by low or high temperature, water, inappropriate pressure, shocks, intentional changes in design or construction etc.
